| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-40-22110 | COLUMN ASS'Y,STEERING | 64225- | |
| 2 | 419-40-12110 | GROMMET | 64225- | |
| 3 | 421-40-12430 | BUSHING | 64225- | |
| 4 | 421-40-12460 | COVER | 64225- | |
| 5 | 421-40-12440 | NUT | 64225- | |
| 6 | 421-40-12450 | WASHER | 64225- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa150 3 s/n 63001 up
- Operator's compartment and control system
- Steering wheel and column(#64225 )
Поиск по каталогу

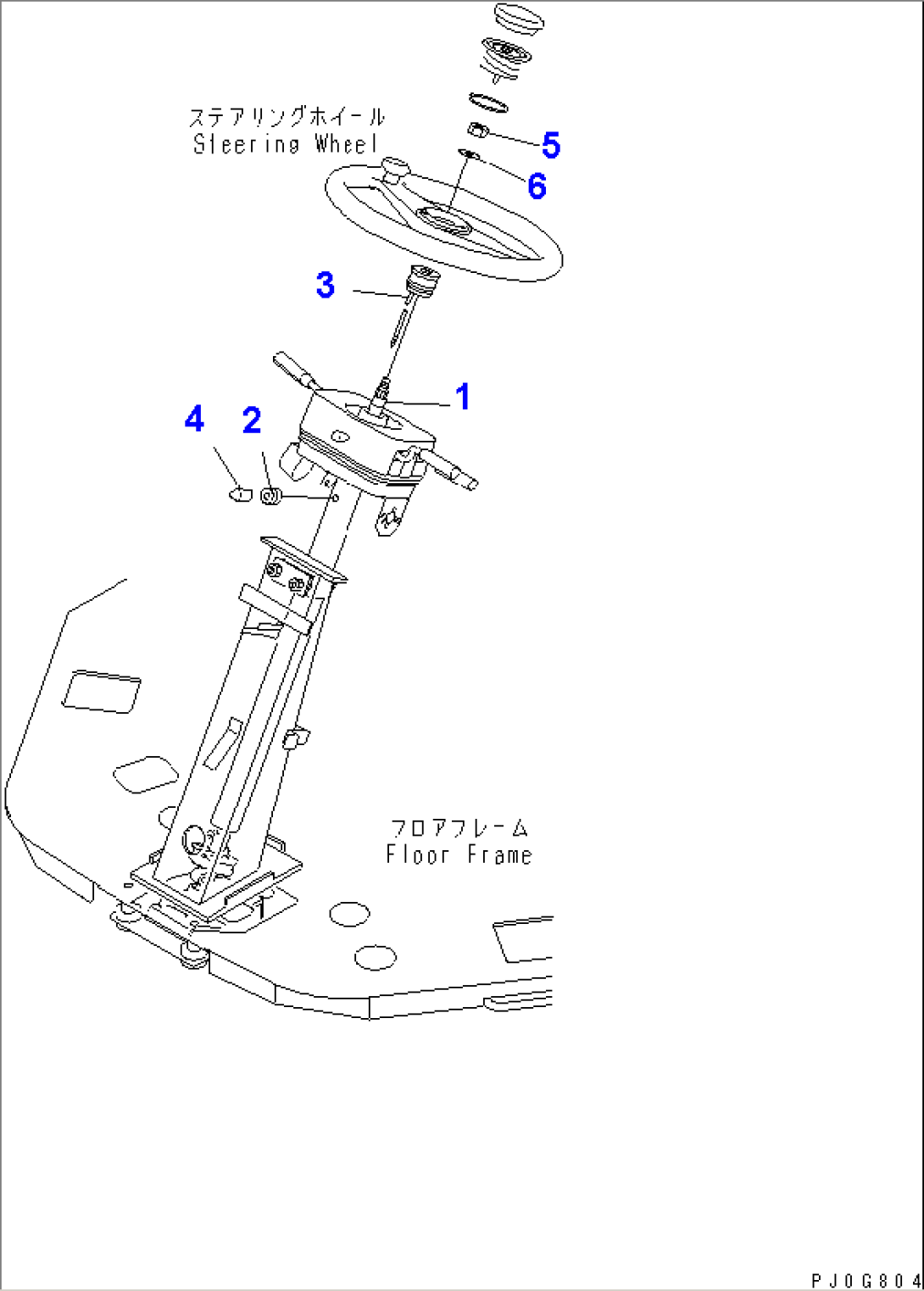

STEERING WHEEL AND COLUMN(#64225-)
