| Item | Part No. | Part Name | Qty | Serial No. |

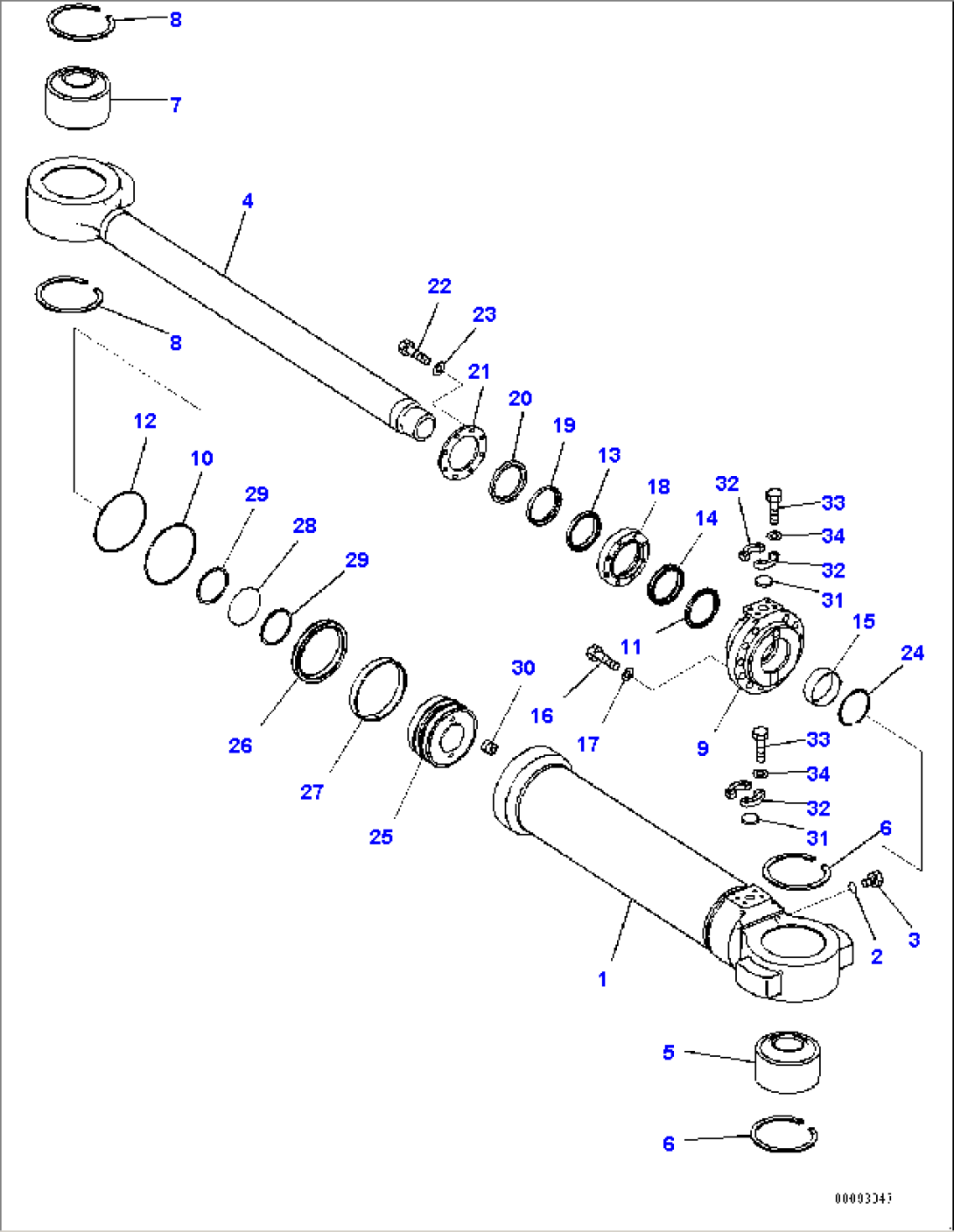

| 707-01-0F501 | Cylinder Assembly | | 80138-80260 |
| 1 | 707-11-14351 | Cylinder | | 80138-@ |
| 2 | 707-34-18040 | O-ring, (Kit : K09) | | 80138-@ |
| 3 | 707-87-25090 | Plug | | 80138-@ |
| 4 | 707-58-75681 | Rod, Piston | | 80138-@ |
| 5 | 07137-06010 | Bushing | | 80138-@ |
| 6 | 04071-00135 | Ring, Snap, for Hole Side | | 80138-@ |
| 7 | 07137-06010 | Bushing | | 80138-@ |
| 8 | 04071-00135 | Ring, Snap, for Hole Side | | 80138-@ |
| 9 | 721-27-14110 | Head, Cylinder | | 80138-80260 |
| 10 | 07000-B2135 | O-ring, (Kit : K09) | | 80138-@ |
| 11 | 707-51-75650 | Ring, Buffer, (Kit : K09) | | 80138-@ |
| 12 | 07146-02136 | Ring, Back-up, (Kit : K09) | | 80138-@ |
| 13 | 707-56-75540 | Seal, Dust, (Kit : K09) | | 80138-80260 |
| 14 | 707-51-75860 | Packing, Rod, (Kit : K09) | | 80138-@ |
| 15 | 707-52-90521 | Bushing | | 80138-@ |
| 16 | 01010-81455 | Bolt | | 80138-@ |
| 17 | 01643-31445 | Washer, Flat | | 80138-@ |
| 18 | 707-88-04870 | Collar | | 80138-80260 |
| 19 | 707-56-75820 | Seal, Dust, (Kit : K09) | | 80138-80260 |
| 20 | 707-88-03881 | Ring, Snap | | 80138-@ |
| 21 | 707-88-03871 | Plate | | 80138-@ |
| 22 | 01010-80840 | Bolt | | 80138-80260 |
| 23 | 01643-50823 | Washer | | 80138-@ |
| 24 | 707-75-75110 | Ring, Snap | | 80138-@ |
| 25 | 707-36-14040 | Piston | | 80138-@ |
| 26 | 707-44-14150 | Ring, Piston, (Kit : K09) | | 80138-@ |
| 27 | 07156-01417 | Ring, Wear, (Kit : K09) | | 80138-@ |
| 28 | 07000-B5075 | O-ring, (Kit : K09) | | 80138-@ |
| 29 | 707-35-90810 | Ring, Back-up, (Kit : K09) | | 80138-@ |
| 30 | 01310-01216 | Screw | | 80138-@ |
| 31 | 707-88-33030 | Cap | | 80138-@ |
| 32 | 07371-30640 | Flange, Split | | 80138-@ |
| 33 | 02010-70632 | Bolt | | 80138-@ |
| 34 | 01643-51032 | Washer | | 80138-@ |
