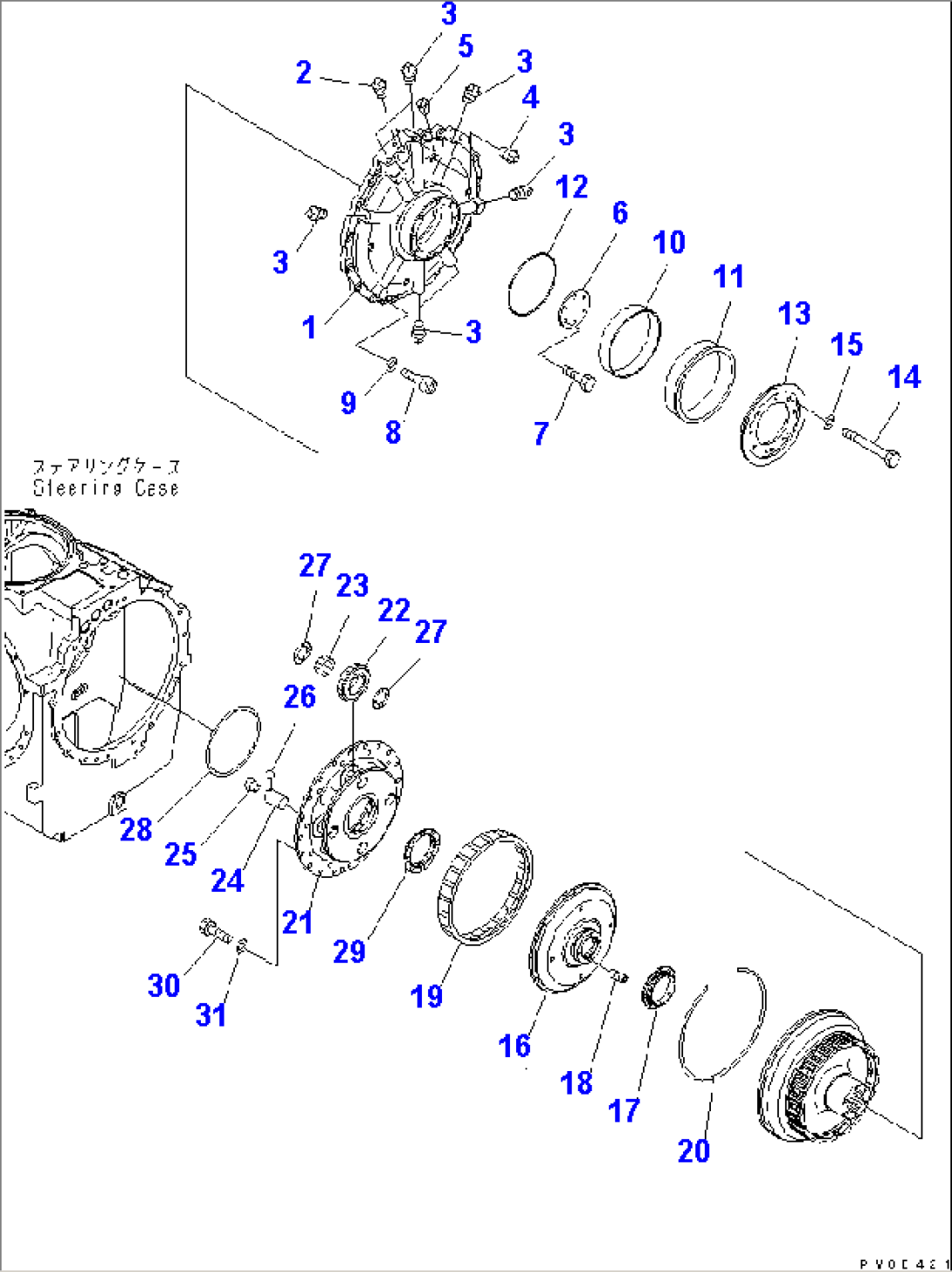

| Item | Part No. | Part Name | Qty | Serial No. |
| (17M-22-41100) | STEERING ASS'Y | 30001-(103090) | ||
| SERIAL NO. IN ( ) INDICATES STEERING SERIAL NO. | ||||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2370-51C0 TO F2370-61C0. | ||||
| (17M-22-00170) | BRAKE ASS'Y | 30001-(103090) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2370-52C0 AND F2370-53C0. | ||||
| 1 | 17M-22-42220 | CASE | 30001-(103090) | |
| 2 | 07042-70415 | PLUG | 30001-(103090) | |
| 3 | 07042-70312 | PLUG | 30001-(103090) | |
| 4 | 07042-70211 | PLUG | 30001-(103090) | |
| 5 | 07049-02025 | PLUG | 30001-@ | |
| 6 | 17A-22-12241 | PLATE | 30001-@ | |
| 7 | 01010-81040 | BOLT | 30001-@ | |
| 8 | 01252-61245 | BOLT | 30001-@ | |
| 9 | 01643-31232 | WASHER | 30001-@ | |
| 10 | 14Y-21-13130 | BUSHING | 30001-@ | |
| 11 | 14Y-21-13240 | COLLAR | 30001-@ | |
| 12 | 14Y-22-15220 | O-RING | 30001-@ | |
| 13 | 17M-22-42130 | FLANGE | 30001-@ | |
| 14 | 01011-81000 | BOLT | 30001-@ | |
| 15 | 01643-31032 | WASHER | 30001-@ | |
| 16 | 17M-22-44210 | GEAR | 30001-@ | |
| 17 | 17M-22-44160 | BUSHING | 30001-@ | |
| 18 | 01310-20812 | SCREW | 30001-@ | |
| 19 | 17M-22-44220 | GEAR | 30001-@ | |
| 20 | 17M-22-44230 | RING,SNAP | 30001-@ | |
| 21 | 17M-22-44380 | CARRIER | 30001-@ | |
| 22 | 17M-22-44130 | GEAR | 30001-@ | |
| 23 | 17M-15-39420 | BEARING | 30001-@ | |
| 24 | 17M-22-44140 | SHAFT | 30001-@ | |
| 25 | 07043-70108 | PLUG | 30001-@ | |
| 26 | 04260-00635 | BALL | 30001-@ | |
| 27 | 561-15-32590 | WASHER,THRUST | 30001-@ | |
| 28 | 195-15-49530 | RING | 30001-@ | |
| 29 | 17M-22-44160 | BUSHING | 30001-@ | |
| 30 | 01010-81235 | BOLT | 30001-@ | |
| 31 | 01643-31232 | WASHER | 30001-@ |
