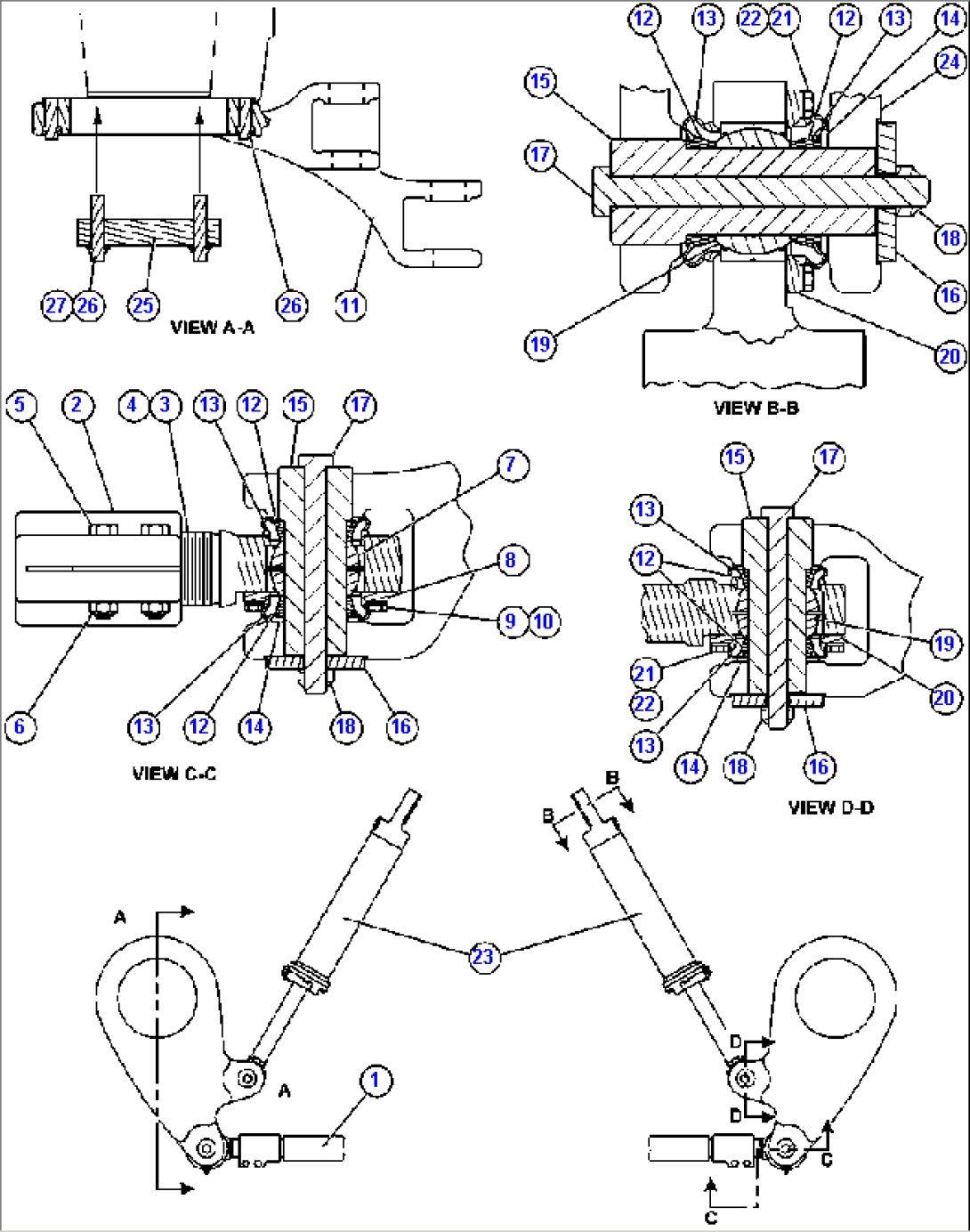

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK9271 | TIE ROD ASSEMBLY | | |
| 2 | EB8801 | TIE ROD | | |
| 3 | TY2245 | END, ROD - R.H. | | |
| 4 | EB8804 | END, ROD - L.H. | | |
| 5 | VN9140 | CAPSCREW - 3/4" - 10NC X 4" | | |
| 6 | VL2993 | LOCKNUT - 3/4" - 10NC | | |
| 7 | PC1682 | BEARING, SPHERICAL (1) | | |
| 8 | EK3382 | RETAINER, BEARING | | |
| 9 | C0312 | LOCKWASHER - 3/8" | | |
| 10 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 11 | EL6059 | ARM, STEERING - L.H. | | |
| 11 | EL6058 | ARM, STEERING - R.H. | | |
| 12 | EK3376 | SPACER (1) | | |
| 13 | EK3377 | SEAL (1) | | |
| 14 | EF7970 | WASHER (HARDENED) (1) | | |
| 15 | EF7971 | PIN (1) | | |
| 16 | EG1853 | RETAINER (1) | | |
| 17 | KC7131 | CAPSCREW - 1" - 8NC X 9 1/2" (1) | | |
| 18 | VN9755 | LOCKNUT - 1" - 8NC (1) | | |
| 19 | PC1682 | BEARING, SPHERICAL (1) | | |
| 20 | EK3384 | RETAINER, ANTI-ROTATION | | |
| 21 | C0312 | LOCKWASHER - 3/8" | | |
| 22 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 23 | EL7952 | STEERING CYLINDER ASSEMBLY (SEE FIG 41812) | | |
| 24 | EH1603 | BRACKET, STEERING CYLINDER - L.H. | | |
| 24 | EH1604 | BRACKET, STEERING CYLINDER - R.H. | | |
| 25 | TY2228 | PLATE, RETAINING | | |
| 26 | WA4817 | CAPSCREW - 1 1/4" - 12NF X 5" (12 PT) | | |
| 27 | TY2149 | FLAT WASHER - 1" (HARDENED) | | |
| NS|30 | AK5108 | NOTE: (1) INCLUDED IN AK5108 TIE ROD AND STEERING PIN KIT. | | |
