| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| \0\198-22-61002 | STEERING ASS'Y | (100172)-(100751) | ||
| (198-22-61001) | STEERING ASS'Y | 30001-(100171) | ||

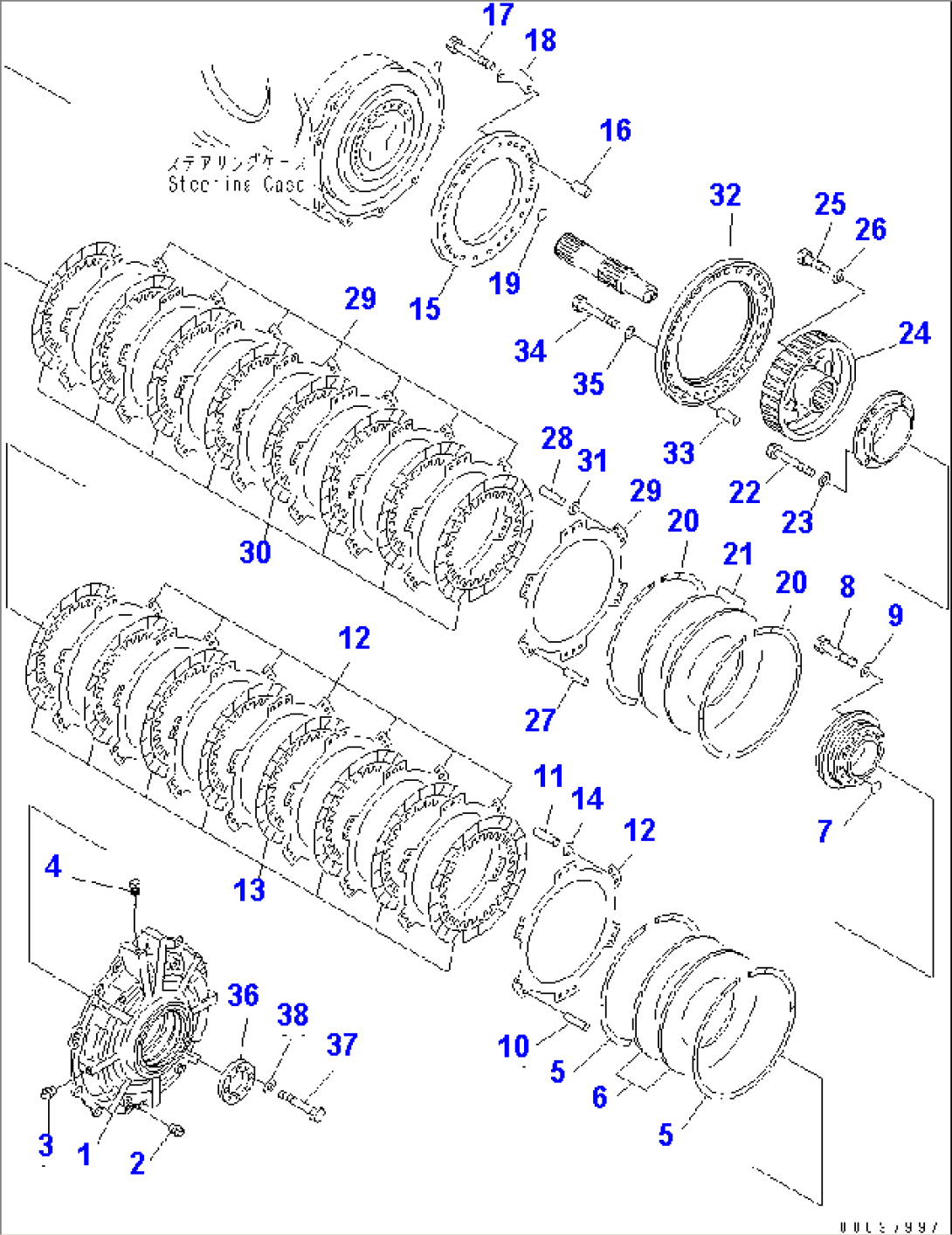

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2370-51A0 TO F2370-59A0. | ||||
| 198-22-00105 | CLUTCH AND BRAKE A. | 30001- | ||
| 1 | 198-22-23111 | CASE | 30001- | |
| 2 | 07042-70415 | PLUG | 30001- | |
| 3 | 07043-70312 | PLUG | 30001- | |
| 4 | 198-22-66120 | PLUG | 30001- | |
| 5 | 198-22-23140 | RING | 30001- | |
| 6 | 198-22-63150 | SPRING | 30001- | |
| 7 | 07000-73022 | O-RING | 30001- | |
| 8 | 01011-61660 | BOLT | 30001- | |
| 9 | 01643-31645 | WASHER | 30001- | |
| 10 | 198-22-23170 | PIN | 30001- | |
| 11 | 198-22-23180 | PIN | 30001- | |
| 12 | 198-22-23380 | PLATE | 30001- | |
| 13 | 198-22-63370 | DISC | 30001- | |
| 14 | 195-15-12880 | SPRING | 30001- | |
| 15 | 198-22-23192 | STOPPER | 30001- | |
| 16 | 04020-01228 | PIN | 30001- | |
| 17 | 01010-61685 | BOLT | 30001- | |
| 18 | 198-22-23210 | LOCK | 30001- | |
| 19 | 07000-73022 | O-RING | 30001- | |
| 20 | 198-22-23140 | RING | 30001- | |
| 198-22-23390 | SPRING ASS'Y | (100291)- | ||
| 21 | 198-22-23361 | SPRING | 30001- | |
| 22 | 01011-61660 | BOLT | 30001- | |
| 23 | 01643-31645 | WASHER | 30001- | |
| 24 | 198-22-23290 | HUB | 30001- | |
| 25 | 01010-81245 | BOLT | 30001- | |
| 26 | 01643-31232 | WASHER | 30001- | |
| 27 | 198-22-23170 | PIN | 30001- | |
| 28 | 198-22-23180 | PIN | 30001- | |
| 29 | 198-22-23380 | PLATE | 30001- | |
| 30 | 198-22-23431 | DISC | 30001- | |
| 31 | 195-15-12880 | SPRING | 30001- | |
| 32 | 198-22-23281 | STOPPER | 30001- | |
| 33 | 04020-01228 | PIN | 30001- | |
| 34 | 01010-61685 | BOLT | 30001- | |
| 35 | 01643-31645 | WASHER | 30001- | |
| 36 | 198-22-23240 | PLATE | 30001- | |
| 37 | 01010-81260 | BOLT | 30001- | |
| 38 | 01643-31232 | WASHER | 30001- |
