| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\154-Z11-X330) | STEEL CAB GROUP | 35001-35951 | |
| ==================== | ||||
| (154-Z11-0032) | STEEL CAB ASS'Y | 36467- | ||
| (154-Z11-0031) | STEEL CAB ASS'Y | 35952-36466 | ||
| \0\154-Z11-0030 | STEEL CAB ASS'Y | 35001-35951 | ||

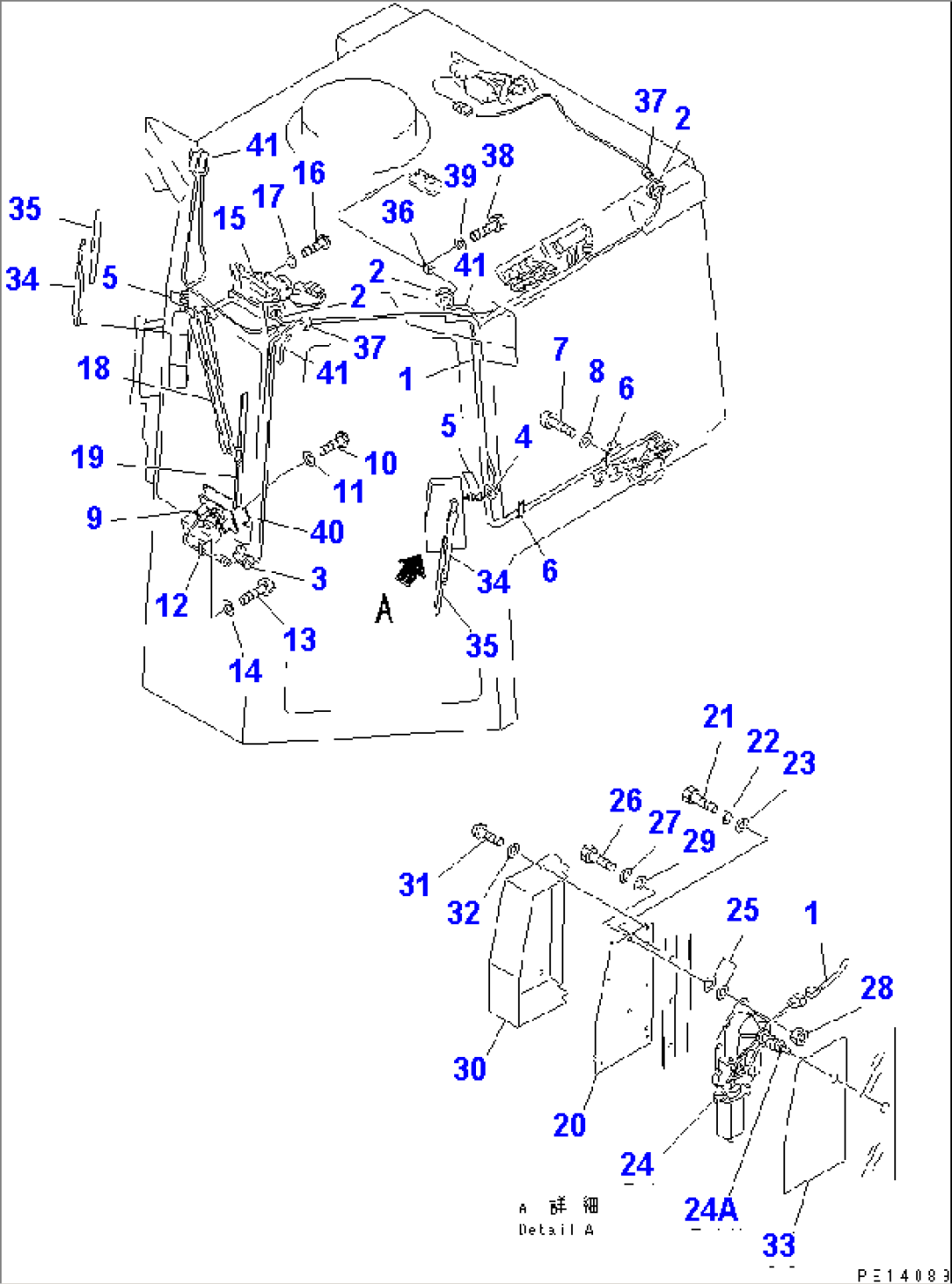

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5531 TO 5539. | ||||
| 1 | 195-Z11-2810 | WIRING HARNESS | 35001- | |
| 2 | 08027-05016 | GROMMET | 35001- | |
| 3 | 08037-01510 | GROMMET | 35001- | |
| 4 | 08037-02512 | GROMMET | 35001- | |
| 5 | 08037-01008 | GROMMET | 35001- | |
| 6 | 08036-21414 | CLIP | 35001- | |
| 7 | 01010-50810 | BOLT | 35001- | |
| 8 | 01643-30823 | WASHER | 35001- | |
| 9 | 195-06-41360 | DISPLAY ASS'Y | 35001- | |
| 9 | 195-06-41350 | LAMP | 35001- | |
| 9 | 08111-12430 | BULB, 3W | 35001- | |
| 10 | 01220-40616 | SCREW | 35001- | |
| 11 | 01642-00608 | WASHER | 35001- | |
| 12 | 08036-31210 | CLIP | 35001- | |
| 13 | 01010-50810 | BOLT | 35001- | |
| 14 | 01643-30823 | WASHER | 35001- | |
| 15 | 195-Z11-2420 | MOTOR ASS'Y | 35001- | |
| 16 | 01220-40616 | SCREW | 35001- | |
| 17 | 01602-20619 | WASHER,SPRING | 35001- | |
| 18 | 195-Z11-2450 | ARM,WIPER | 35001- | |
| 19 | 195-Z11-2470 | BLADE,WIPER | 35001- | |
| 20 | 195-Z11-2490 | PLATE | 35001- | |
| 21 | 01010-50825 | BOLT | 35001- | |
| 22 | 01602-20825 | WASHER,SPRING | 35001- | |
| 23 | 01643-30823 | WASHER | 35001- | |
| 24 | 195-Z11-2430 | MOTOR ASS'Y | 35001- | |
| 24A | ND859901-0300 | GROMMET | 35001- | |
| 25 | 01643-31032 | WASHER | 35001- | |
| 26 | 01010-50830 | BOLT | 35001- | |
| 27 | 01602-20825 | WASHER,SPRING | 35001- | |
| 28 | 01580-00806 | NUT | 35001- | |
| 29 | 01643-30823 | WASHER | 35001- | |
| 30 | 195-Z11-2220 | COVER | 35001- | |
| 31 | 01220-40512 | SCREW | 35001- | |
| 32 | 01642-20508 | WASHER | 35001- | |
| 33 | 195-Z11-2230 | PLATE | 35001- | |
| 34 | 195-Z11-2440 | ARM,WIPER | 35001- | |
| 35 | 198-911-3260 | BLADE,WIPER | 35001- | |
| 36 | 08036-01014 | CLIP | 36467- | |
| 36 | 08036-22514 | CLIP | 35001-36466 | |
| 37 | 08036-01014 | CLIP | 36467- | |
| 37 | 08036-21414 | CLIP | 35001-36466 | |
| 38 | 01010-50810 | BOLT | 35001- | |
| 39 | 01643-30823 | WASHER | 35001- | |
| 40 | 154-54-45260 | PLATE | 35001- | |
| 41 | 195-Z11-3140 | SHEET | 35001- | |
| ==================== |
