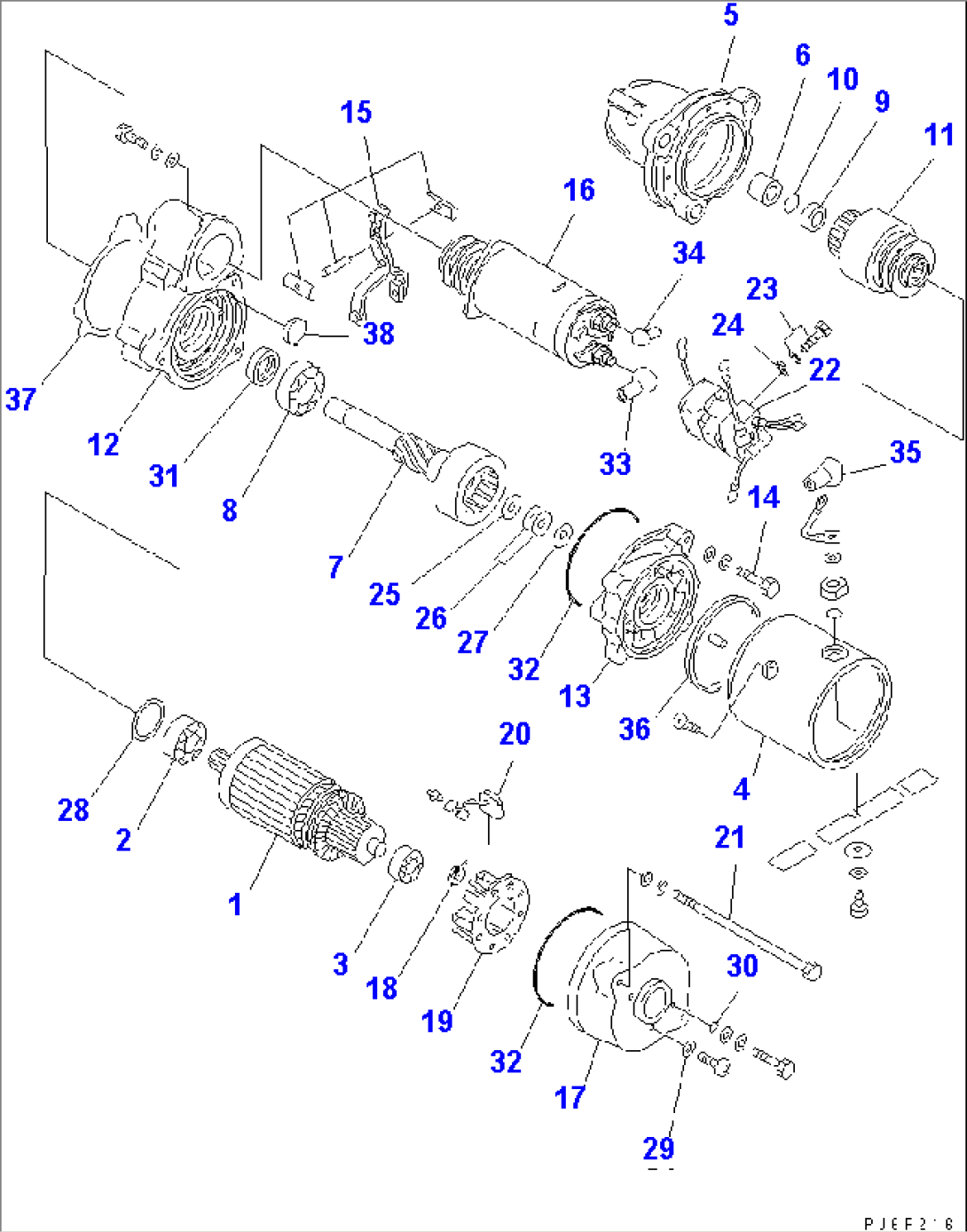

Item | Part No. | Part Name | Qty | Serial No. |
600-863-5710 | STARTING MOTOR ASS'Y,(7.5KW) | 26800003-26800814 | ||
1 | KD0-23100-0251 | ARMATURE ASS'Y | 26800003-26800814 | |
2 | KD1-0454-62047 | BEARING,BALL, FRONT | 26800003-26800814 | |
3 | KD1-0454-62007 | BEARING,BALL, REAR | 26800003-26800814 | |
4 | KD0-23200-0331 | YOKE ASS'Y | 26800003-26800814 | |
5 | KD0-23310-1730 | BRACKET,FRONT | 26800003-26800814 | |
6 | KD7-23351-0080 | METAL | 26800003-26800814 | |
7 | KD7-23120-0310 | SHIFT LEVER ASS'Y | 26800003-26800814 | |
8 | KD1-0454-60067 | BEARING,BALL | 26800003-26800814 | |
9 | KD1-23181-0020 | STOPPER,PINION | 26800003-26800814 | |
10 | KD1-23914-0020 | RING,CLIP | 26800003-26800814 | |
11 | KD1-23500-0970 | CLUTCH ASS'Y,OVER RUNNING | 26800003-26800814 | |
12 | KD0-23600-0460 | CENTER BRACKET A. | 26800003-26800814 | |
13 | KD0-23611-0690 | BRACKET,CENTER | 26800003-26800814 | |
14 | KD1-0240-08405 | BOLT | 26800003-26800814 | |
15 | KD7-23320-0060 | SHIFT LEVER ASS'Y | 26800003-26800814 | |
16 | KD0-47100-3944 | MAGNETIC SWITCH A. | 26800003-26800814 | |
KD7-23700-0520 | REAR BRACKET ASS'Y | 26800003-26800814 | ||
17 | KD0-23700-0130 | REAR BRACKET ASS'Y | 26800003-26800814 | |
18 | KD1-23913-0040 | BRUSH,BRUSH | 26800003-26800814 | |
19 | KD0-23750-0120 | BRUSH HOLDER A. | 26800003-26800814 | |
20 | KD0-23740-0250 | BRUSH ASS'Y | 26800003-26800814 | |
21 | KD0-23901-0170 | BOLT | 26800003-26800814 | |
22 | KD0-25000-8331 | SWITCH ASS'Y | 26800003-26800814 | |
23 | KD0-0270-06402 | BOLT | 26800003-26800814 | |
24 | KD1-47927-1250 | HOLDER | 26800003-26800814 | |
25 | KD1-23921-0130 | WASHER | 26800003-26800814 | |
26 | KD1-23921-0140 | WASHER | 26800003-26800814 | |
27 | KD1-23941-0040 | WASHER,INSULATE | 26800003-26800814 | |
28 | KD0-23921-0230 | WASHER | 26800003-26800814 | |
29 | KD1-0345-05001 | WASHER,SEAL | 26800003-26800814 | |
30 | KD1-0505-00601 | O-RING | 26800003-26800814 | |
31 | KD1-09210-1060 | SEAL,OIL | 26800003-26800814 | |
32 | KD1-09211-0980 | O-RING | 26800003-26800814 | |
33 | KD1-09252-0211 | CAP,GUM | 26800003-26800814 | |
34 | KD1-09252-0420 | CAP,GUM | 26800003-26800814 | |
35 | KD1-09252-0430 | CAP,GUM | 26800003-26800814 | |
36 | KD1-23951-0020 | PACKING | 26800003-26800814 | |
37 | KD0-23951-0301 | PACKING | 26800003-26800814 | |
38 | KD0-23951-0331 | PACKING | 26800003-26800814 |
