| Item | Part No. | Part Name | Qty | Serial No. |

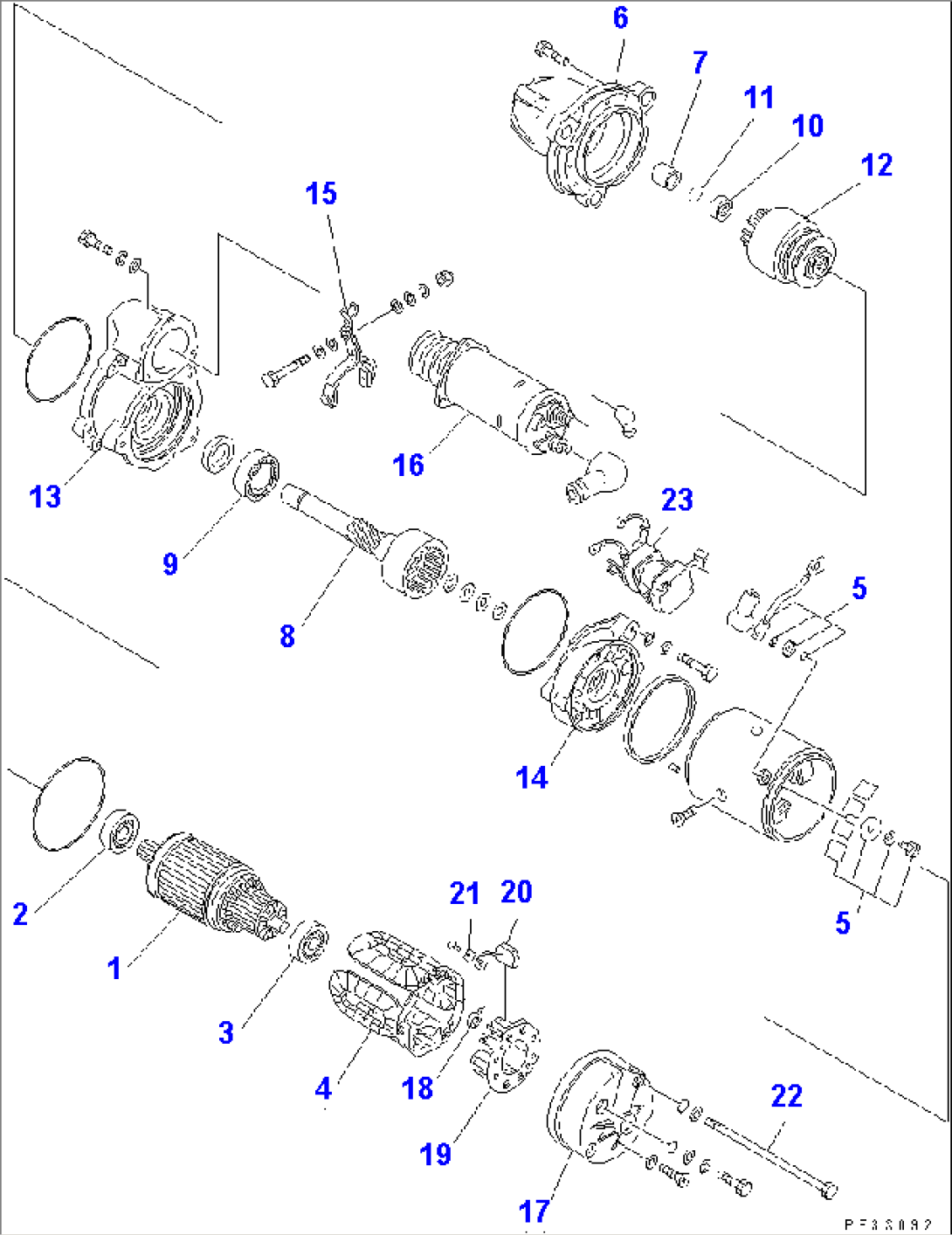

| 600-813-4930 | STARTING MOTOR ASS'Y,(7.5KW) | 10034-10908 | ||
| 1 | KD0-23100-0230 | ARMATURE ASS'Y | 10034-10908 | |
| 2 | KD1-0456-62047 | BEARING,BALL¤ FRONT | 10034-10908 | |
| 3 | KD1-0456-62007 | BEARING,BALL¤ REAR | 10034-10908 | |
| 4 | KD0-23230-0150 | FIELD COIL ASS'Y | 10034-10908 | |
| 5 | KD7-23780-0070 | TERMINAL ASS'Y | 10034-10908 | |
| 6 | KD1-23310-0380 | FRONT BRACKET ASS'Y | 10034-10908 | |
| 7 | KD7-23351-0080 | METAL | 10034-10908 | |
| 8 | KD7-23120-0090 | SHAFT ASS'Y | 10034-10908 | |
| 9 | KD1-0456-60067 | BEARING,BALL | 10034-10908 | |
| 10 | KD1-23181-0020 | STOPPER,PINION | 10034-10908 | |
| 11 | KD1-23914-0020 | RING,CLIP | 10034-10908 | |
| 12 | KD1-23500-0160 | CLUTCH ASS'Y,OVER RUNNING | 10034-10908 | |
| 13 | KD0-23600-0270 | CENTER BRACKET A. | 10034-10908 | |
| 14 | KD1-23611-0080 | BRACKET,CENTER | 10034-10908 | |
| 15 | KD1-23320-0190 | SHIFT LEVER ASS'Y | 10034-10908 | |
| 16 | KD0-47100-3420 | MAGNETIC SWITCH A. | 10034-10908 | |
| 17 | KD0-23711-0221 | BRACKET,REAR | 10034-10908 | |
| 18 | KD1-23913-0040 | SPRING,BRUSH | 10034-10908 | |
| 19 | KD0-23750-0050 | BRUSH HOLDER ASS'Y | 10034-10908 | |
| 20 | KD1-23740-0050 | BRUSH ASS'Y | 10034-10908 | |
| 21 | KD1-25922-2800 | PLATE | 10034-10908 | |
| 22 | KD0-09001-4380 | BOLT | 10034-10908 | |
| 23 | KD0-25000-7320 | SWITCH ASS'Y,SAFETY RELAY | 10034-10908 | |
| 24 | KD7-23920-0100 | WASHER ASS'Y,(NOT SHOWN) | 10034-10908 | |
| 25 | KD7-09210-1200 | SEAL KIT,(NOT SHOWN) | 10034-10908 |
