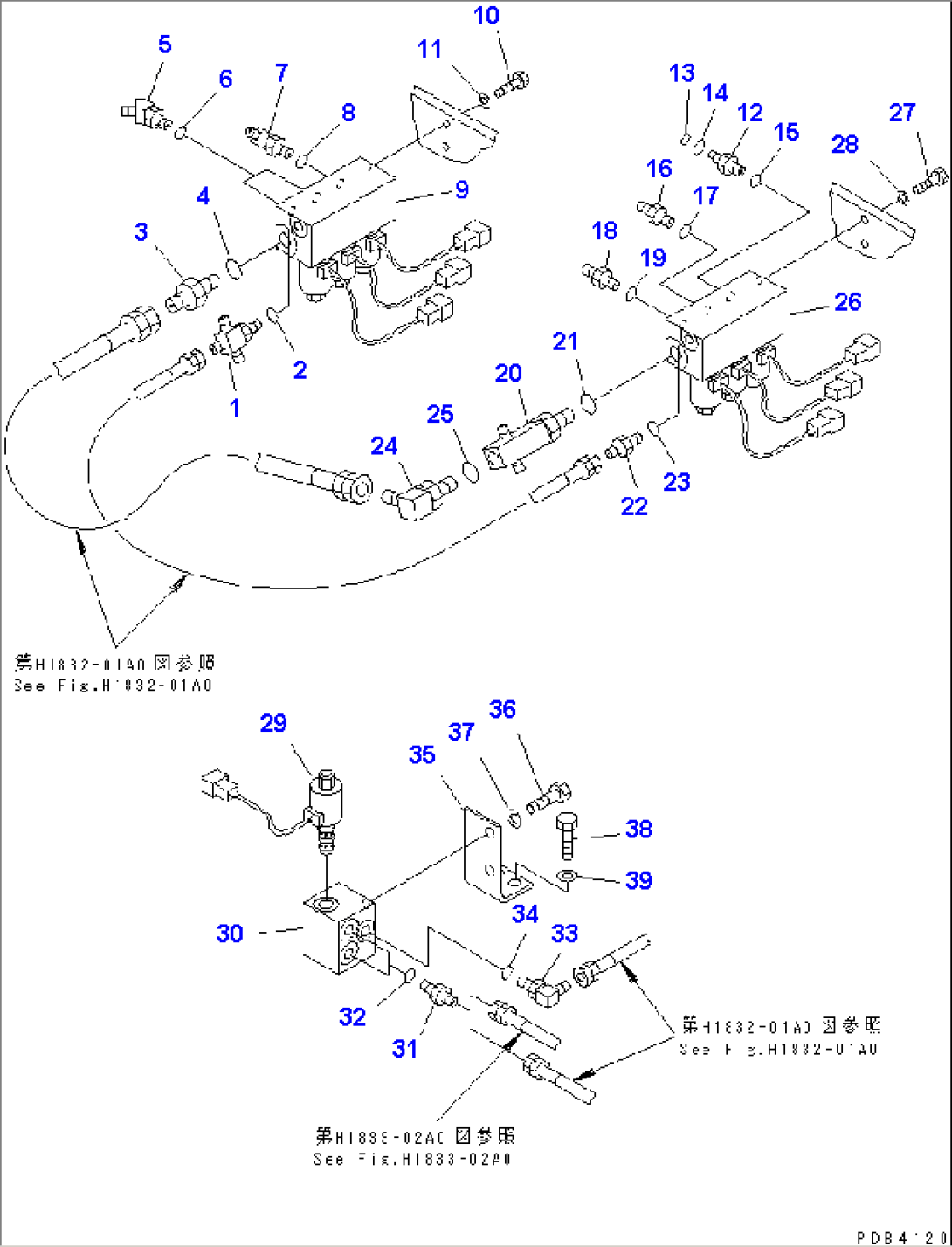

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-970-1650 | TEE | 10001-@ | |
| 2 | 07002-01423 | O-RING | 10001-@ | |
| 3 | 07230-20315 | UNION | 10001-10238 | |
| 4 | 07002-02034 | O-RING | 10001-@ | |
| 5 | 22X-61-18550 | ELBOW | 10001-@ | |
| 6 | 07002-01423 | O-RING | 10001-@ | |
| 7 | 07235-10311 | ELBOW | 10092-@ | |
| \0\207-62-33920 | ELBOW | 10001-10091 | ||
| 8 | 07002-01423 | O-RING | 10001-@ | |
| 9 | 20Y-60-11703 | VALVE ASS'Y | 10001-@ | |
| 10 | 01010-51045 | BOLT | 10001-10238 | |
| 11 | 01643-31032 | WASHER | 10001-@ | |
| 12 | 20Y-62-16630 | NIPPLE | 10001-@ | |
| 13 | 201-60-11390 | O-RING | 10001-@ | |
| 14 | 20Y-62-19560 | O-RING | 10001-@ | |
| 15 | 07002-01423 | O-RING | 10001-@ | |
| 16 | 20Y-62-16630 | NIPPLE | 10001-@ | |
| 17 | 07002-01423 | O-RING | 10001-@ | |
| 18 | 20Y-62-16630 | NIPPLE | 10001-@ | |
| 19 | 07002-01423 | O-RING | 10001-@ | |
| 20 | 209-62-57720 | TEE | 10001-@ | |
| 21 | 07002-02034 | O-RING | 10001-@ | |
| 22 | 205-62-55270 | NIPPLE | 10001-@ | |
| 23 | 07002-01423 | O-RING | 10001-@ | |
| 24 | 07235-10315 | ELBOW | 10001-10238 | |
| 25 | 07002-02034 | O-RING | 10001-@ | |
| 26 | 20Y-60-11703 | VALVE ASS'Y | 10001-@ | |
| 27 | 01010-51045 | BOLT | 10001-10238 | |
| 28 | 01643-31032 | WASHER | 10001-@ | |
| 20Y-60-11803 | SOLENOID VALVE ASS'Y | 10001-@ | ||
| 29 | 20Y-60-11713 | SOLENOID VALVE | 10001-@ | |
| 30 | 20Y-60-11810 | BLOCK | 10001-@ | |
| 31 | 205-62-55270 | NIPPLE | 10001-@ | |
| 32 | 07002-01423 | O-RING | 10001-@ | |
| 33 | 07235-10311 | ELBOW | 10092-@ | |
| \0\207-62-33920 | ELBOW | 10001-10091 | ||
| 34 | 07002-01423 | O-RING | 10001-@ | |
| 35 | 209-62-77980 | BRACKET | 10001-@ | |
| 36 | 01010-51225 | BOLT | 10001-10238 | |
| 37 | 01643-31232 | WASHER | 10001-@ | |
| 38 | 01010-81225 | BOLT | 10001-@ | |
| 39 | 01643-31232 | WASHER | 10001-@ |
