| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07098-21217 | HOSE | 20001- | |
| 2 | 07371-51260 | FLANGE | 20001- | |
| 3 | 01010-51245 | BOLT | 20001- | |
| 4 | 01643-31232 | WASHER | 20001- | |
| 5 | 07000-13038 | O-RING | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc650lc 5 s/n 20001 up
- Work equipment
- Short arm (bucket cylinder piping) (backhoe)
Поиск по каталогу

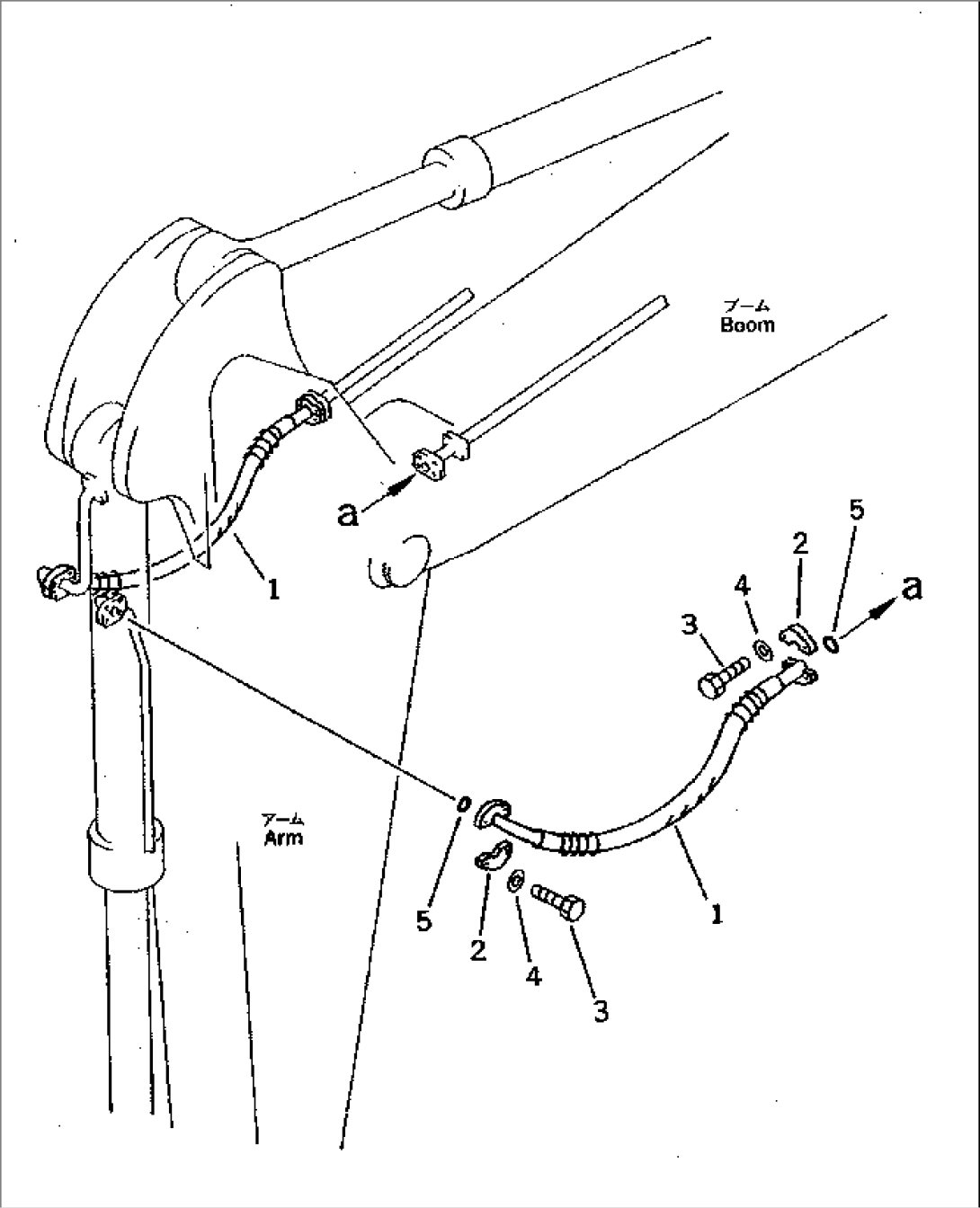

SHORT ARM (BUCKET CYLINDER PIPING) (BACKHOE)
