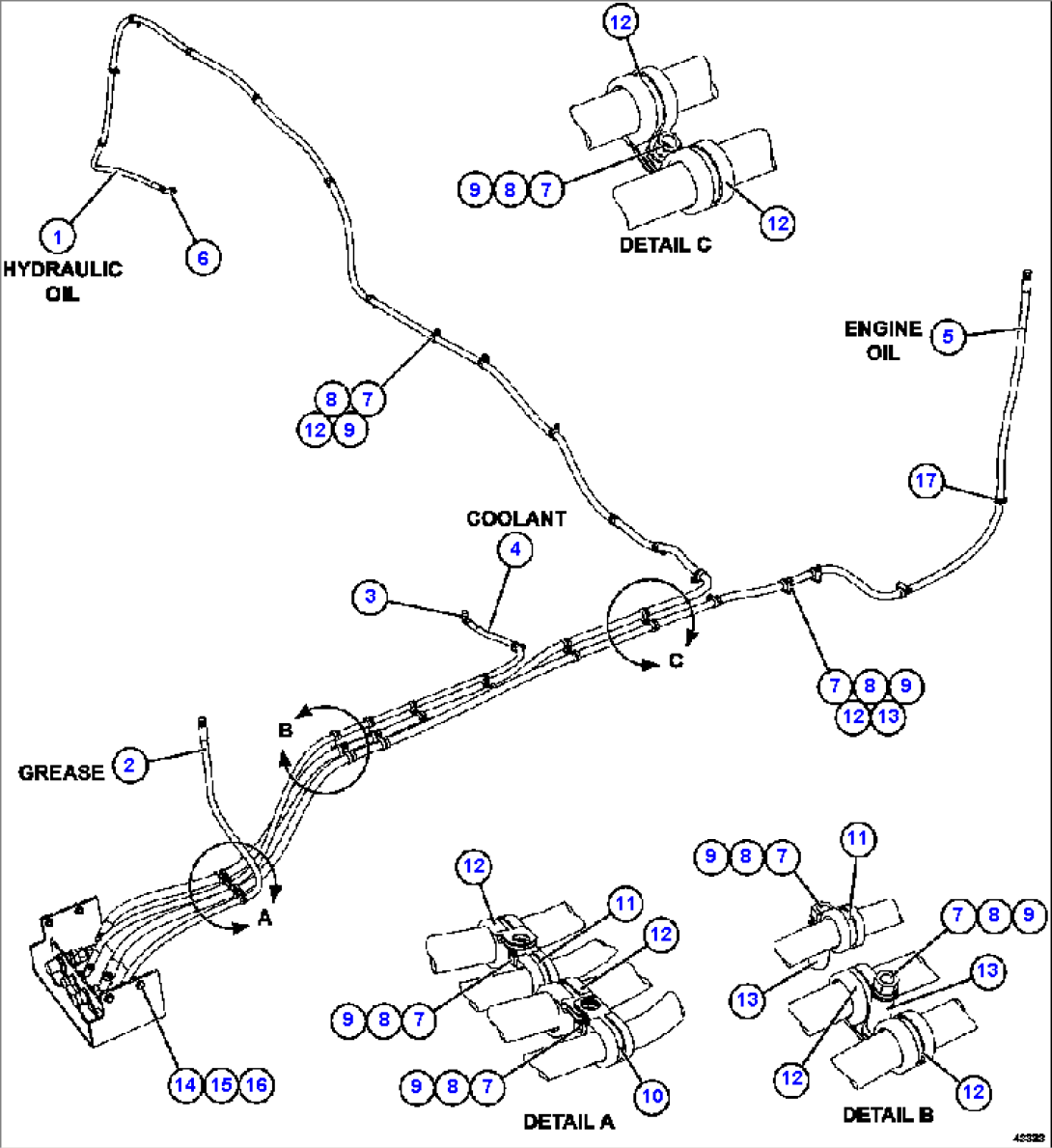

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA8465 | HOSE | ||
| 2 | HA2114 | HOSE | ||
| 3 | WB0268 | FITTING, 90 DEGREE ELBOW | ||
| 4 | HA1561 | HOSE | ||
| 5 | HA1530 | HOSE | ||
| 6 | WB0543 | FITTING, ELBOW - 45 DEG | ||
| 7 | MM0178 | NUT - M10 X 1.50 | ||
| 8 | MM0461 | FLAT WASHER - M10 | ||
| 9 | MM0471 | LOCKWASHER - M10 | ||
| 10 | WB3092 | CLAMP, CUSHION - 7/8" | ||
| 11 | WB3093 | CLAMP, CUSHION - 1" | ||
| 12 | WB3096 | CLAMP, CUSHIONED - 1 1/4" | ||
| 13 | EM1393 | SPACER | ||
| 14 | MM0179 | NUT - M12 X 1.75 | ||
| 15 | MM0620 | CAPSCREW - M12 X 1.75 X 40 | ||
| 16 | MM0714 | FLAT WASHER - M12 | ||
| 17 | SG3146 | GROMMET |
