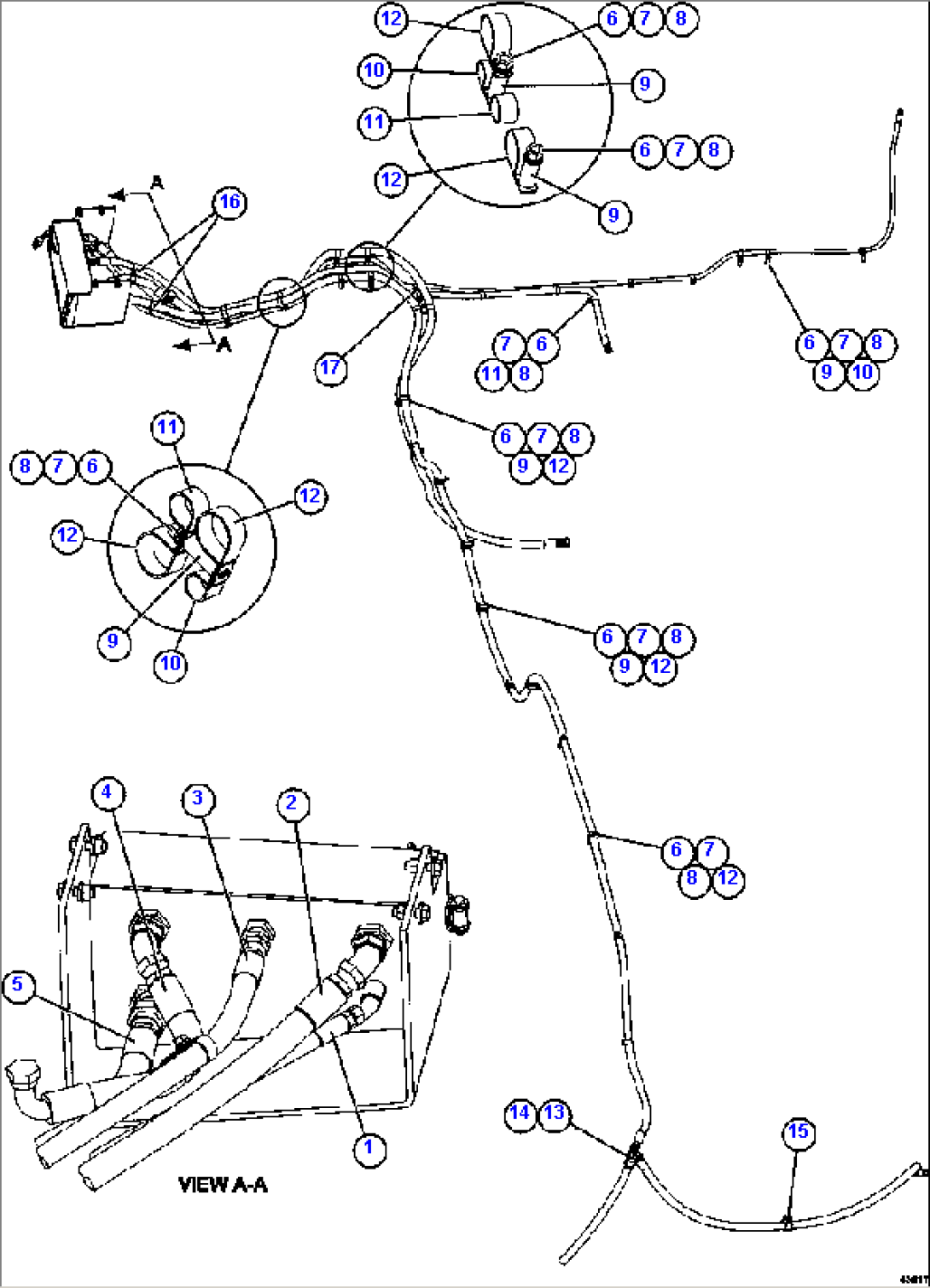

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA1261 | HOSE | ||
| 2 | HA8607 | HOSE | ||
| 3 | HA5486 | HOSE | ||
| 4 | HA5353 | HOSE | ||
| 5 | HA8723 | HOSE | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | MM0461 | FLAT WASHER - M10 | ||
| 8 | MM0471 | LOCKWASHER - M10 | ||
| 9 | EM1393 | SPACER | ||
| 10 | WB3092 | CLAMP, CUSHION - 7/8" | ||
| 11 | WB1308 | CLAMP, CUSHION - 1 1/16" | ||
| 12 | WB1305 | CLAMP, CUSHIONED - 1 1/2" | ||
| 13 | WB3733 | FITTING, TEE | ||
| 14 | PC2609 | VALVE, CHECK | ||
| 15 | WA2759 | CLAMP, HYDRA ZORB | ||
| 16 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 17 | TY8375 | SPACER |
