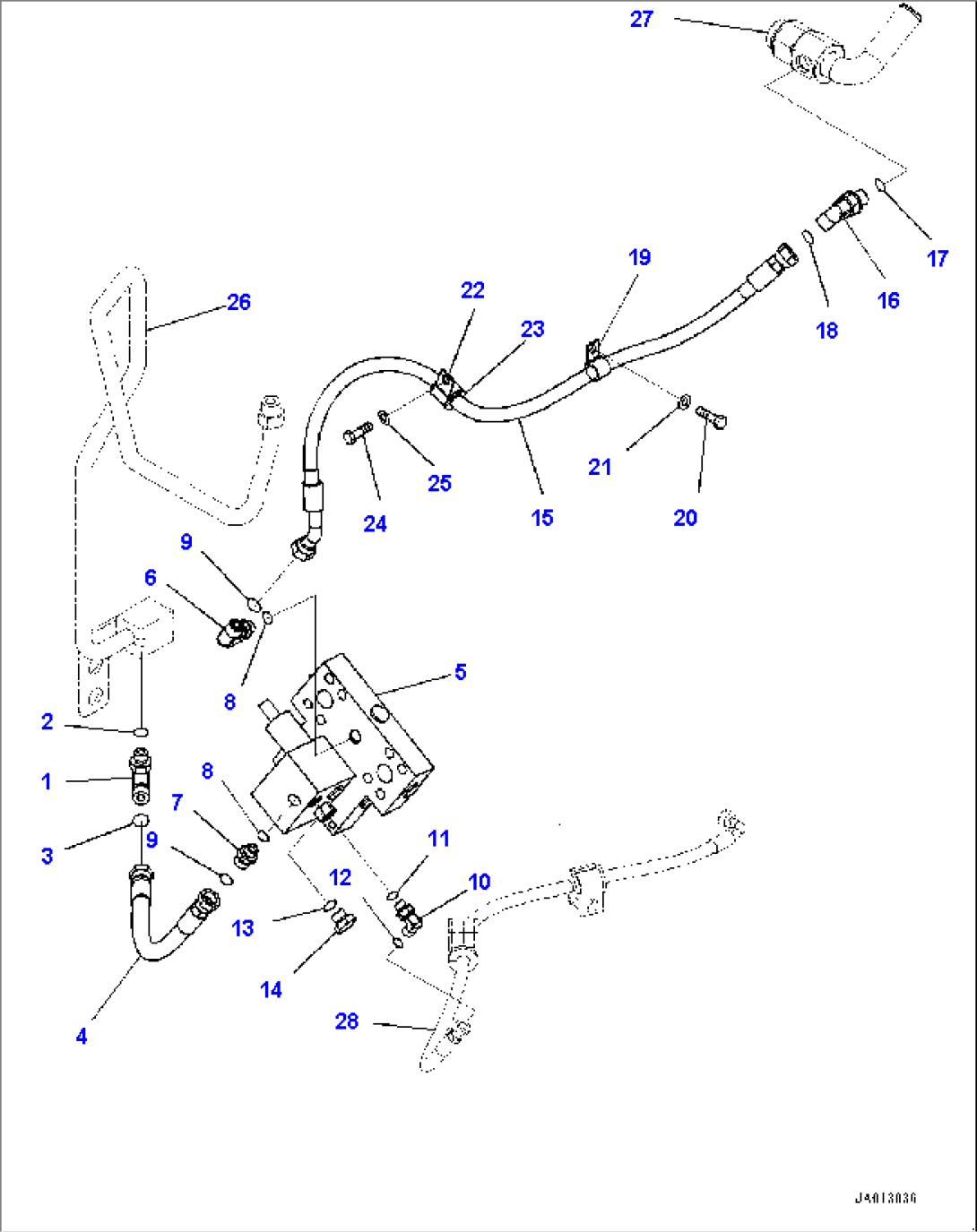

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02782-1042A | Elbow | 80001- | |
| 2 | 07002-11823 | O-ring | 80001- | |
| 3 | 02896-11012 | O-ring | 80001- | |
| 4 | 419-62-52380 | Hose | 80001- | |
| 5 | 418-62-33580 | Valve | 80001- | |
| 6 | 419-62-54250 | Elbow | 80001- | |
| 7 | 10P-62-11210 | Union | 80001- | |
| 8 | 07000-12014 | O-ring | 80001- | |
| 9 | 02896-11012 | O-ring | 80001- | |
| 10 | 21W-62-43980 | Elbow | 80001- | |
| 11 | 07000-12011 | O-ring | 80001- | |
| 12 | 02896-11008 | O-ring | 80001- | |
| 13 | 415-62-11560 | O-ring | 80001- | |
| 14 | 418-62-51650 | Plug | 80001- | |
| 15 | 419-18-52220 | Hose | 80001- | |
| 16 | 21W-62-42580 | Elbow | 80001- | |
| 17 | 07002-12034 | O-ring | 80001- | |
| 18 | 02896-11012 | O-ring | 80001- | |
| 19 | 04434-51810 | Clip | 80001- | |
| 20 | 01010-81020 | Bolt | 80001- | |
| 21 | 01643-31032 | Washer | 80001- | |
| 22 | 04434-52711 | Clip | 80001- | |
| 23 | 07095-20418 | Cushion | 80001- | |
| 24 | 01010-81020 | Bolt | 80001- | |
| 25 | 01643-31032 | Washer | 80001- | |
| 26 | (419-62-52320) | Tube | - | |
| (419-62-52320) | Tube | - | ||
| 27 | (418-18-51290) | Tube | - | |
| 28 | (419-62-51620) | Hose | - | |
| (419-62-51620) | Hose | - | ||
| (419-62-51620) | Hose | - | ||
| (419-62-51620) | Hose | - | ||
| (419-62-51620) | Hose | - |
