| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-57-A1661 | BELT | 60001- | |
| 2 | 02030-70757 | BOLT | 60001- | |
| 3 | 09409-00002 | WASHER | 60001- | |
| 4 | 01643-11232 | WASHER | 60001- | |
| 5 | 208-01-11270 | WASHER | 60001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc600lc 8r s/n 60001 up (w/o egr)
- Operator's compartment and control system
- Seat belt (78mm wide) (non cinching)
Поиск по каталогу

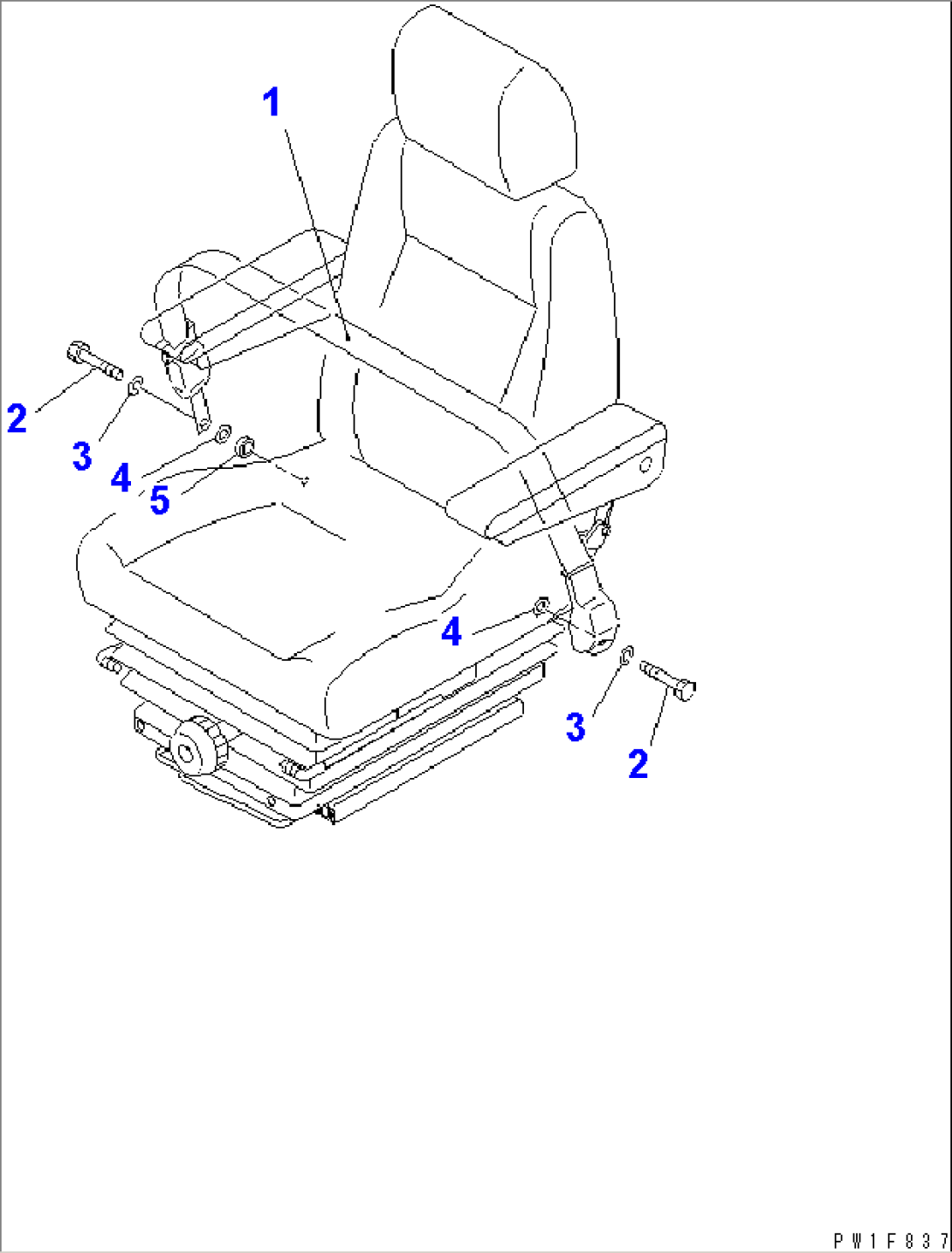

SEAT BELT (78MM WIDE) (NON-CINCHING)
