| Item | Part No. | Part Name | Qty | Serial No. |
| 427-30-12402 | RIM ASSEMBLY. | A50001-- | ||
| 1 | 427-30-12112 | BASE, RIM | A50001-- | |
| 2 | 427-30-12121 | RING, SIDE | A50001-- | |
| 3 | 427-30-12410 | BAND | A50001-- | |
| 4 | 427-30-12420 | RING, LOCK | A50001-- | |
| 5 | 427-30-12141 | KEY, DRIVER | A50001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa900 3lc s/n a50001 up
- Suspension and wheel related parts
- S0110 01a0 rim (45 65 45 lt)
Поиск по каталогу

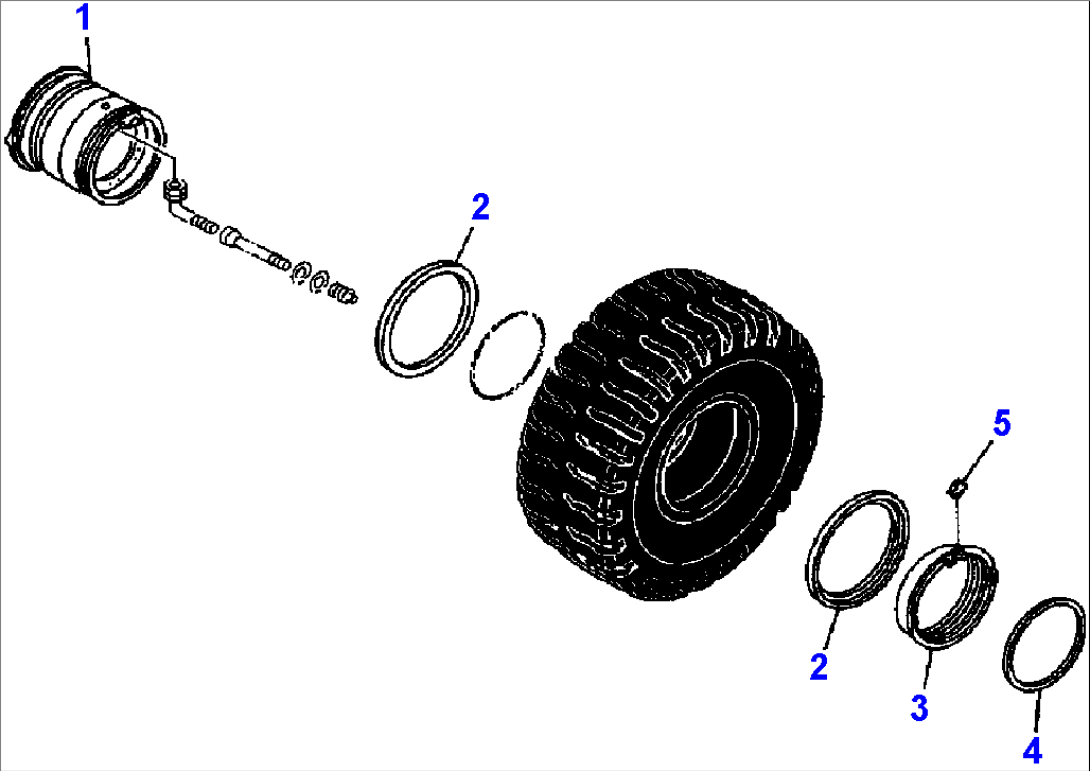

S0110-01A0 RIM (45-65-45 LT)
