| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-1160 | WASHER TANK | 1001-1136 | |
| 2 | 01245-00620 | SCREW | 1001-@ | |
| 3 | 01643-30623 | WASHER | 1001-1136 | |
| 4 | 01580-30605 | NUT | 1001-@ | |
| 5 | 11Y-979-5931 | BRACKET | 1001-1136 | |
| 6 | 01010-81225 | BOLT | 1001-@ | |
| 7 | 01643-31232 | WASHER | 1001-@ |
- Главная
- Каталог запчастей
- Бульдозеры
- D39ex 21 s/n 1001 1499 (overseas version)
- Operator's compartment and control system
- Rops cab (washer tank)(#1001 1136)
Поиск по каталогу

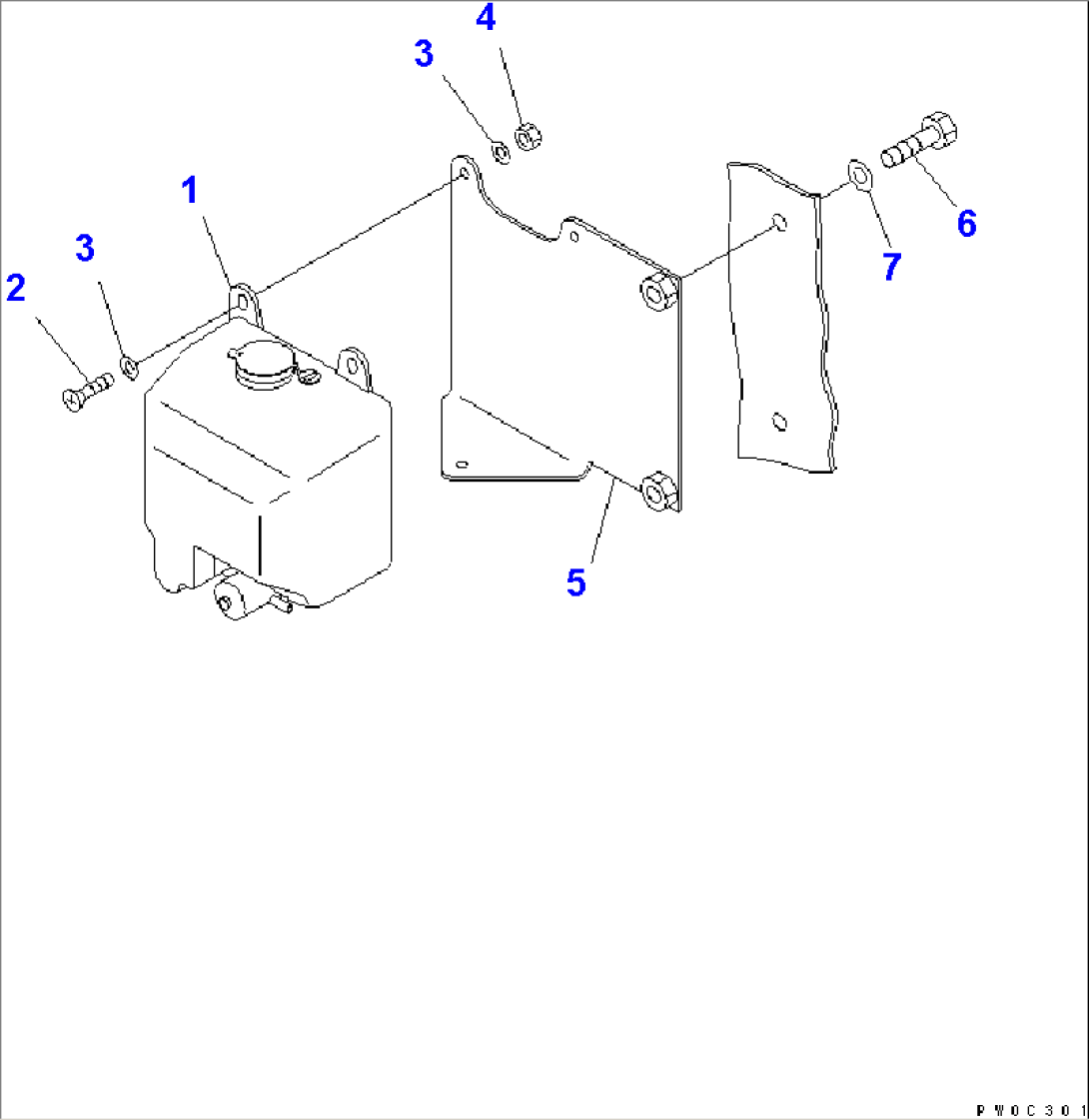

ROPS CAB (WASHER TANK)(#1001-1136)
