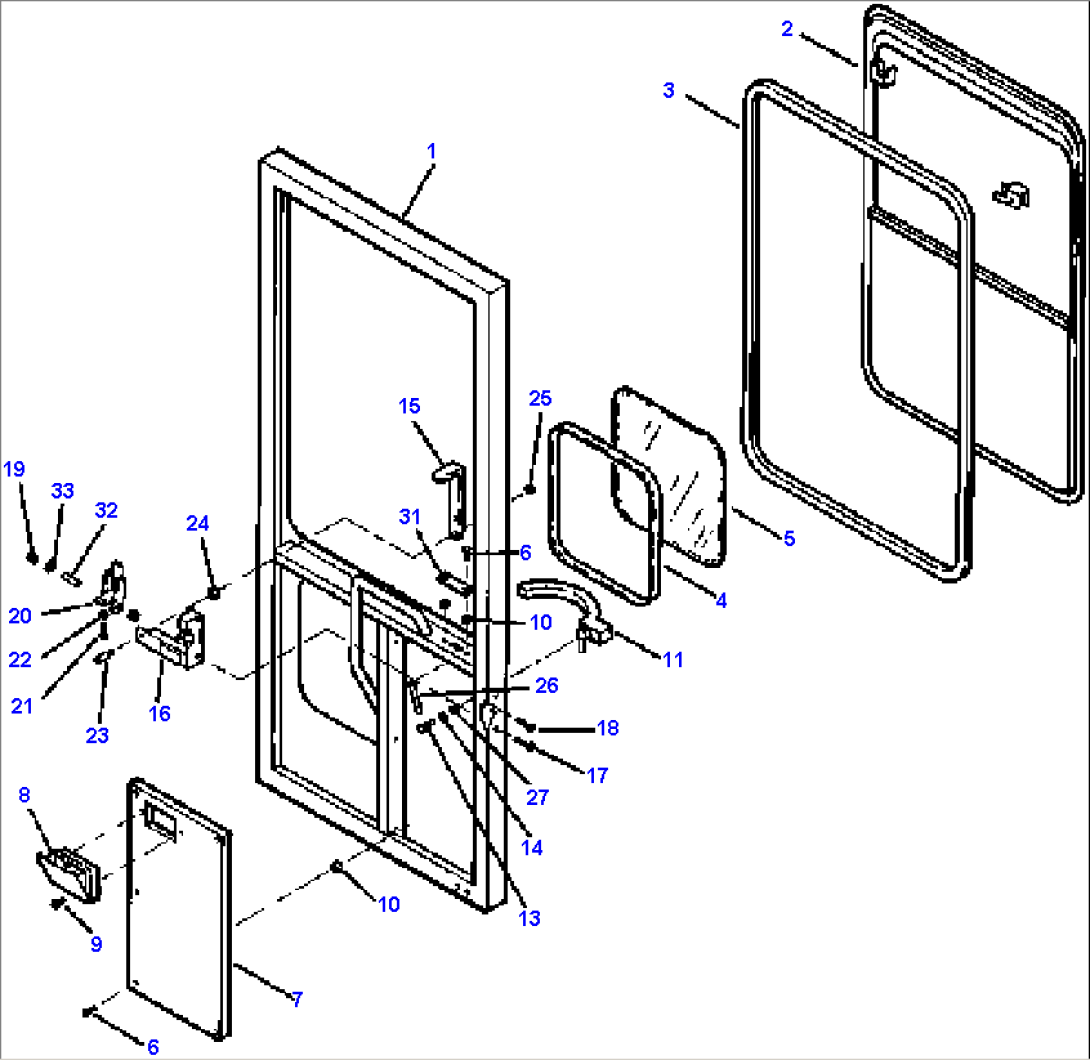

| Item | Part No. | Part Name | Qty | Serial No. |
| CAB ASSEMBLY, ROPS (SEE PG 05-060) | ||||
| 426-925-AE90 | DOOR ASSEMBLY, RIGHT | |||
| 426-925-AE80 | DOOR ASSEMBLY, LEFT | |||
| 1 | 426-925-AG40 | DOOR WELDMENT, RIGHT | ||
| 426-925-AH60 | DOOR WELDMENT, LEFT | |||
| 2 | 426-925-AE20 | WINDOW, SLIDING | ||
| 3 | 426-925-AA20 | SEAL, WINDOW RUBBER (120 | ||
| 4 | 426-925-AA20 | SEAL, WINDOW RUBBER (50 | ||
| 5 | 426-925-AB80 | GLASS, DOOR | ||
| 6 | 426-925-A230 | SCREW | ||
| 7 | 426-925-AE50 | PANEL, DOOR RIGHT | ||
| 426-925-AE40 | PANEL, DOOR LEFT | |||
| 8 | 426-925-AC10 | ASH TRAY (RH DOOR ONLY) | ||
| 9 | 426-925-A460 | SCREW, SHEET METAL (RH DOOR ONLY) | ||
| 10 | 426-925-A410 | NUT, INSERT | ||
| 11 | 426-925-AG70 | HANDLE ASSEMBLY | ||
| 426-925-AG80 | HANDLE ASSEMBLY | |||
| N/I | NOT USED | |||
| 13 | 426-925-A660 | SCREW | ||
| 14 | 426-925-A320 | WASHER, LOCK | ||
| 15 | 426-925-AD20 | LATCH, INSIDE RELEASE | ||
| 16 | 426-925-AF40 | CAM LATCH, RH DOOR | ||
| 426-925-AF30 | CAM LATCH, LH DOOR | |||
| 17 | (NSS) | SCREW | ||
| 18 | (NSS) | SCREW | ||
| 19 | (NSS) | NUT, LOCK | ||
| 20 | (NSS) | DOOR LATCH TRIP - RIGHT | ||
| (NSS) | DOOR LATCH TRIP - LEFT | |||
| 21 | (NSS) | SCREW | ||
| 22 | 426-925-A330 | NUT | ||
| 23 | 426-925-A810 | BOLT, SHOULDER | ||
| 24 | 426-925-A580 | WASHER, NYLON | ||
| 25 | 426-925-A470 | NUT, LOCK | ||
| 26 | 426-925-A210 | SPRING, EXTENSION | ||
| 27 | (NSS) | WASHER | ||
| NOT USED | ||||
| NOT USED | ||||
| NOT USED | ||||
| 31 | 426-925-AA10 | BUSHING, DOOR | ||
| 32 | (NSS) | BUSHING | ||
| 33 | 426-925-A270 | WASHER |
