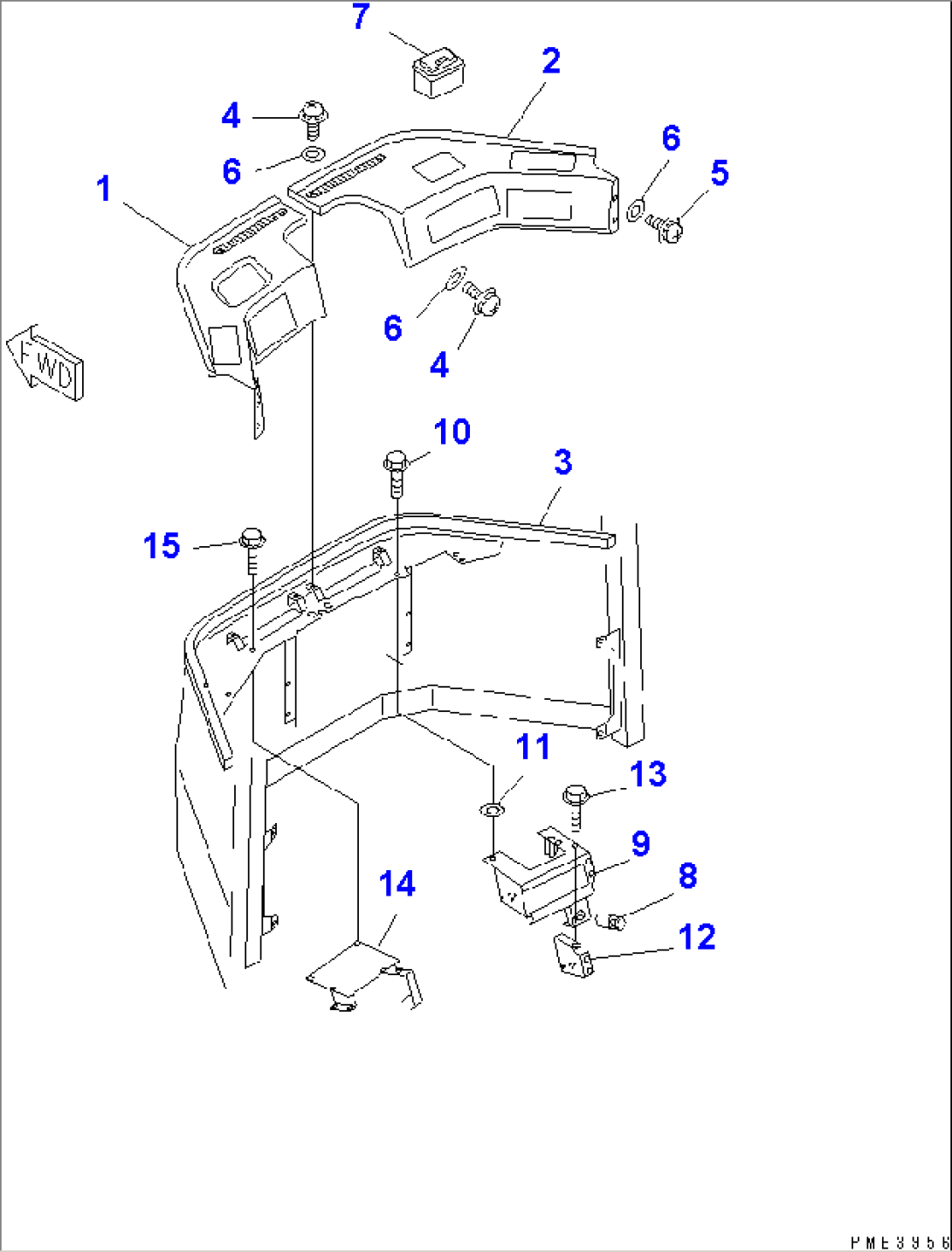

| Item | Part No. | Part Name | Qty | Serial No. |
| (418-926-2090) | ROPS CAB ASS'Y | 65001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-18A0. | ||||
| 1 | 421-56-21561 | COVER,L.H. | 65001- | |
| 2 | 421-56-21571 | COVER,R.H. | 65001- | |
| 3 | 417-54-21380 | SEAL | 65001- | |
| 4 | 421-09-21410 | SCREW | 65001- | |
| 5 | 421-09-21430 | SCREW | 65001- | |
| 6 | 01642-40810 | WASHER | 65001- | |
| 7 | 20G-54-13420 | ASHTRAY | 65001- | |
| 8 | 08913-02400 | LIGHTER,CIGAR | 65001- | |
| 9 | 421-56-21612 | BRACKET,RADIO | 65001- | |
| 10 | 01435-00616 | BOLT | 65001- | |
| 11 | 01605-10818 | WASHER | 65001- | |
| 12 | 421-56-21621 | PLATE | 65001- | |
| 13 | 01435-00610 | BOLT | 65001- | |
| 14 | 421-56-21630 | BRACKET | 65001- | |
| 15 | 01435-00616 | BOLT | 65001- |
