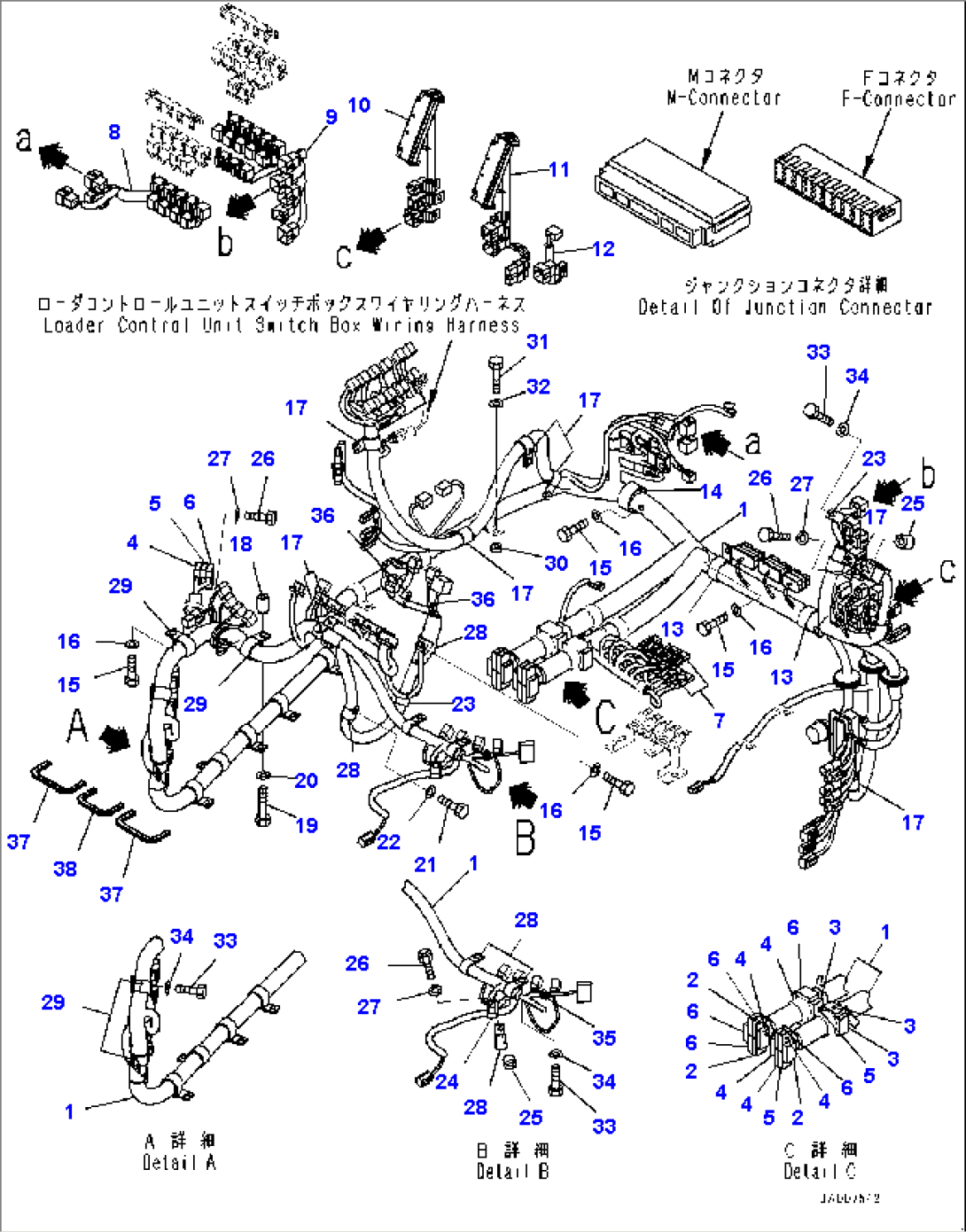

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-S39-4180 | Wiring Harness | 90047-91201 | |
| 2 | HM6400-0012 | F-Connector, Black | 90047-91201 | |
| 2 | HM6409-0071 | M-Connector, Black | 90047-91201 | |
| 3 | HM6400-0014 | F-Connector, Blue | 90047-91201 | |
| 3 | HM6409-0073 | M-Connector, Blue | 90047-91201 | |
| 4 | HM6400-0016 | F-Connector, Orange | 90047-91201 | |
| 4 | HM6409-0075 | M-Connector, Orange | 90047-91201 | |
| 5 | HM6440-0129 | F-Connector, Pink | 90047-91201 | |
| 5 | HM6440-0128 | M-Connector, Pink | 90047-91201 | |
| 6 | HM6400-0186 | F-Connector, Brown | 90047-91201 | |
| 6 | HM6409-0603 | M-Connector, Brown | 90047-91201 | |
| 7 | 21J-06-13661 | Diode | 90047-91201 | |
| 8 | 423-06-45120 | Wiring Harness | 90047-91201 | |
| 9 | 421-S39-4190 | Wiring Harness | 90047-91201 | |
| 10 | 423-06-45141 | Box, Fuse | 90047-91201 | |
| 08044-00010 | Terminal | 90047-91201 | ||
| 11 | 421-S39-4210 | Box, Fuse | 90047-91201 | |
| 08044-00010 | Terminal | 90047-91201 | ||
| 12 | 423-06-45161 | Wiring Harness | 90047-91201 | |
| 13 | 419-09-11150 | Clip | 90047-91201 | |
| 14 | 234-885-3660 | Clip | 90047-91201 | |
| 15 | 01010-81020 | Bolt | 90047-91201 | |
| 16 | 01643-31032 | Washer | 90047-91201 | |
| 17 | 04434-52711 | Clip | 90047-91201 | |
| 18 | 22D-62-18450 | Collar | 90047-91201 | |
| 19 | 01010-81055 | Bolt | 90047-91201 | |
| 20 | 01643-31032 | Washer | 90047-91201 | |
| 21 | 01010-81025 | Bolt | 90047-91201 | |
| 22 | 01643-31032 | Washer | 90047-91201 | |
| 23 | 04434-51410 | Clip | 90047-91201 | |
| 24 | 04434-51510 | Clip | 90047-91201 | |
| 25 | 175-79-83760 | Spacer | 90047-91201 | |
| 26 | 01010-81040 | Bolt | 90047-91201 | |
| 27 | 01643-31032 | Washer | 90047-91201 | |
| 28 | 04434-52310 | Clip | 90047-91201 | |
| 29 | 04434-53411 | Clip | 90047-91201 | |
| 30 | 560-43-15220 | Washer | 90047-91201 | |
| 31 | 01010-81035 | Bolt | 90047-91201 | |
| 32 | 01643-31032 | Washer | 90047-91201 | |
| 33 | 01010-81016 | Bolt | 90047-91201 | |
| 34 | 01643-31032 | Washer | 90047-91201 | |
| 35 | 08059-00310 | Clip | 90047-91201 | |
| 36 | 08034-40521 | Band | 90047-91201 | |
| 37 | 423-54-42380 | Finisher | 90047-91201 | |
| 38 | 423-54-42990 | Finisher | 90047-91201 |
