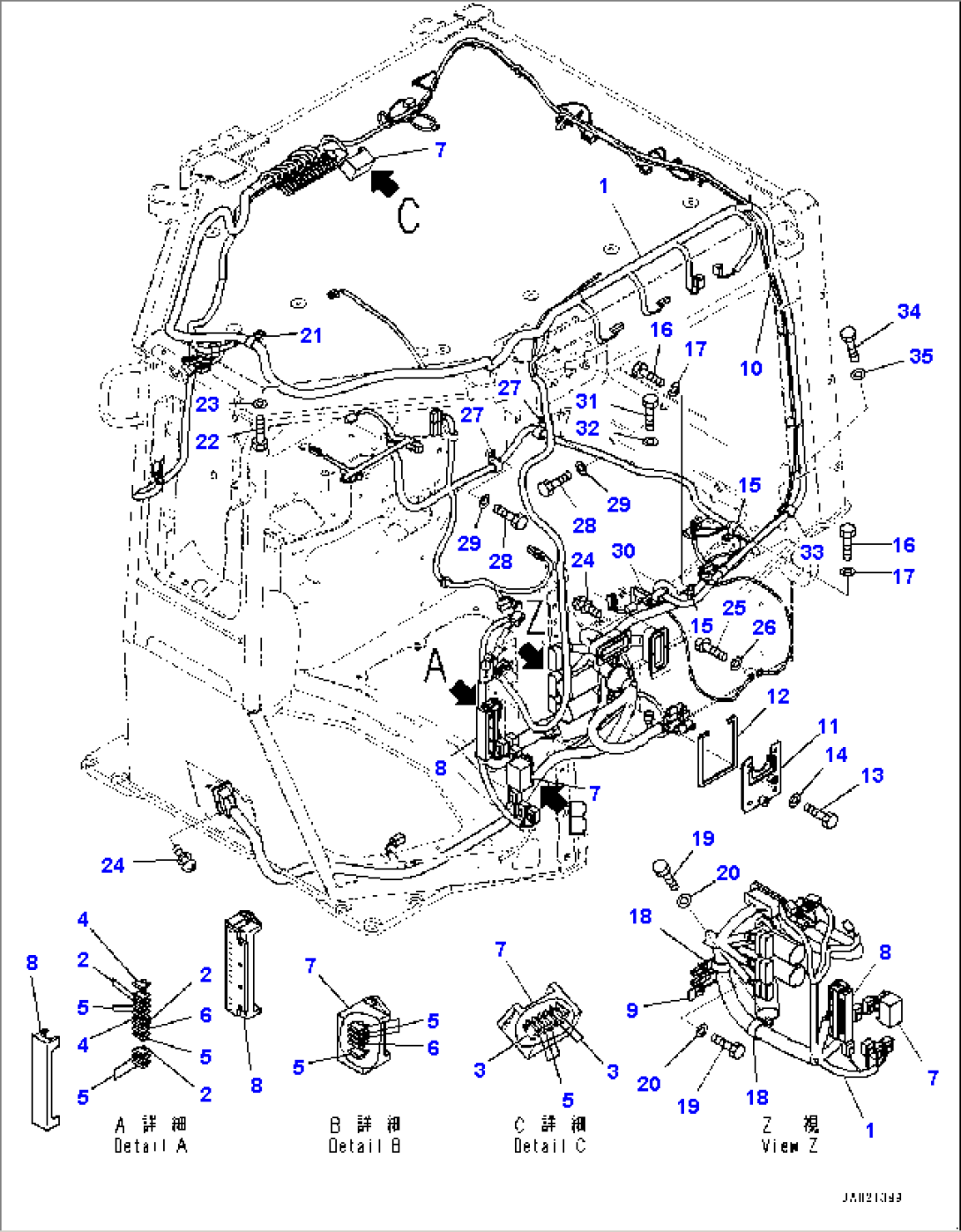

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-81122 | Wiring Harness | 1113- | |
| 1 | 154-06-81121 | Wiring Harness | 1001-1112 | |
| 2 | 08041-00500 | Fuse, 5Amp. | 1001- | |
| 3 | 08041-01000 | Fuse, 10Amp. | 1001- | |
| 4 | 08041-01500 | Fuse, 15Amp. | 1001- | |
| 5 | 08041-02000 | Fuse, 20Amp. | 1001- | |
| 6 | 08041-03000 | Fuse, 30Amp. | 1001- | |
| 7 | 08044-00600 | Box Assembly, Fuse | 1001- | |
| 8 | 08044-01500 | Box Assembly, Fuse | 1001- | |
| 9 | 21J-06-13661 | Diode | 1001- | |
| 10 | 56B-06-37150 | Cable | 1001- | |
| 11 | 14X-06-63570 | Bracket | 1001- | |
| 12 | 14X-06-51431 | Sheet | 1001- | |
| 13 | 01010-81025 | Bolt | 1001- | |
| 14 | 01643-31032 | Washer | 1001- | |
| 15 | 04434-52310 | Clip | 1001- | |
| 16 | 01010-81020 | Bolt | 1001- | |
| 17 | 01643-31032 | Washer | 1001- | |
| 18 | 208-06-19170 | Clip | 1001- | |
| 19 | 01010-81020 | Bolt | 1001- | |
| 20 | 01643-31032 | Washer | 1001- | |
| 21 | 04434-52310 | Clip | 1001- | |
| 22 | 01010-81020 | Bolt | 1001- | |
| 23 | 01643-31032 | Washer | 1001- | |
| 24 | 01023-10416 | Screw | 1001- | |
| 25 | 01010-81020 | Bolt | 1001- | |
| 26 | 01643-31032 | Washer | 1001- | |
| 27 | 04434-52310 | Clip | 1001- | |
| 28 | 01010-81020 | Bolt | 1001- | |
| 29 | 01643-31032 | Washer | 1001- | |
| 30 | 04435-51710 | Clip | 1001- | |
| 31 | 01010-81020 | Bolt | 1001- | |
| 32 | 01643-31032 | Washer | 1001- | |
| 33 | 04434-51710 | Clip | 1001- | |
| 34 | 01010-81020 | Bolt | 1001- | |
| 35 | 01643-31032 | Washer | 1001- |
