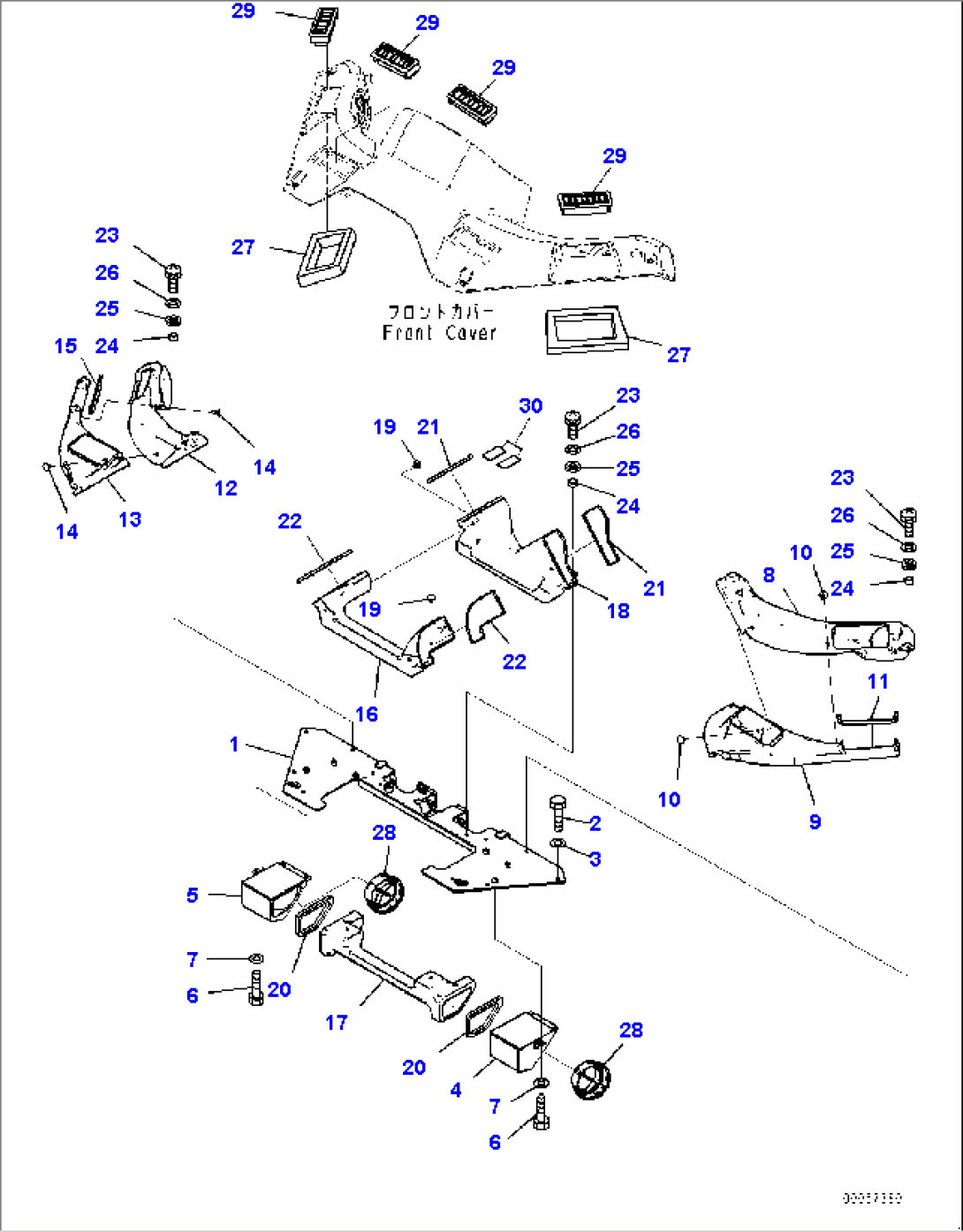

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-925-4383 | Bracket | 90216-91201 | |
| 2 | 01010-80616 | Bolt | 90216-91201 | |
| 3 | 01643-30623 | Washer | 90216-91201 | |
| 4 | 423-925-4433 | Cover | 90216-91201 | |
| 5 | 423-925-4443 | Cover | 90216-91201 | |
| 6 | 01010-80612 | Bolt | 90216-91201 | |
| 7 | 01643-30623 | Washer | 90216-91201 | |
| 7 | 423-07-31743 | Duct Assembly, L.H. | 90216-91201 | |
| 8 | 423-07-31912 | Duct | 90216-91201 | |
| 9 | 423-07-31921 | Duct | 90216-91201 | |
| 10 | 423-56-21910 | Button | 90216-91201 | |
| 11 | 423-07-31410 | Sheet | 90216-91201 | |
| 11 | 423-07-31753 | Duct Assembly, R.H. | 90216-91201 | |
| 12 | 423-07-31932 | Duct | 90216-91201 | |
| 13 | 423-07-31941 | Duct | 90216-91201 | |
| 14 | 423-56-21910 | Button | 90216-91201 | |
| 15 | 423-07-31410 | Sheet | 90216-91201 | |
| 15 | 423-07-31763 | Duct Assembly | 90216-91201 | |
| 16 | 423-07-31951 | Duct | 90216-91201 | |
| 17 | 423-07-31960 | Duct | 90216-91201 | |
| 18 | 423-07-31972 | Duct | 90216-91201 | |
| 19 | 423-56-21910 | Button | 90216-91201 | |
| 20 | 423-07-31790 | Sheet | 90216-91201 | |
| 21 | 423-07-31420 | Sheet | 90216-91201 | |
| 22 | 423-07-31430 | Sheet | 90216-91201 | |
| 23 | 01023-10620 | Screw | 90216-91201 | |
| 24 | 426-56-31890 | Collar | 90216-91201 | |
| 25 | 426-56-31870 | Washer | 90216-91201 | |
| 26 | 01643-30623 | Washer | 90216-91201 | |
| 27 | 423-07-31250 | Sheet | 90216-91201 | |
| 28 | 20Y-53-12172 | Grille | 90216-91201 | |
| 29 | 421-07-12512 | Grille | 90216-91201 | |
| 30 | 423-07-31280 | Plate | 90216-91201 |
