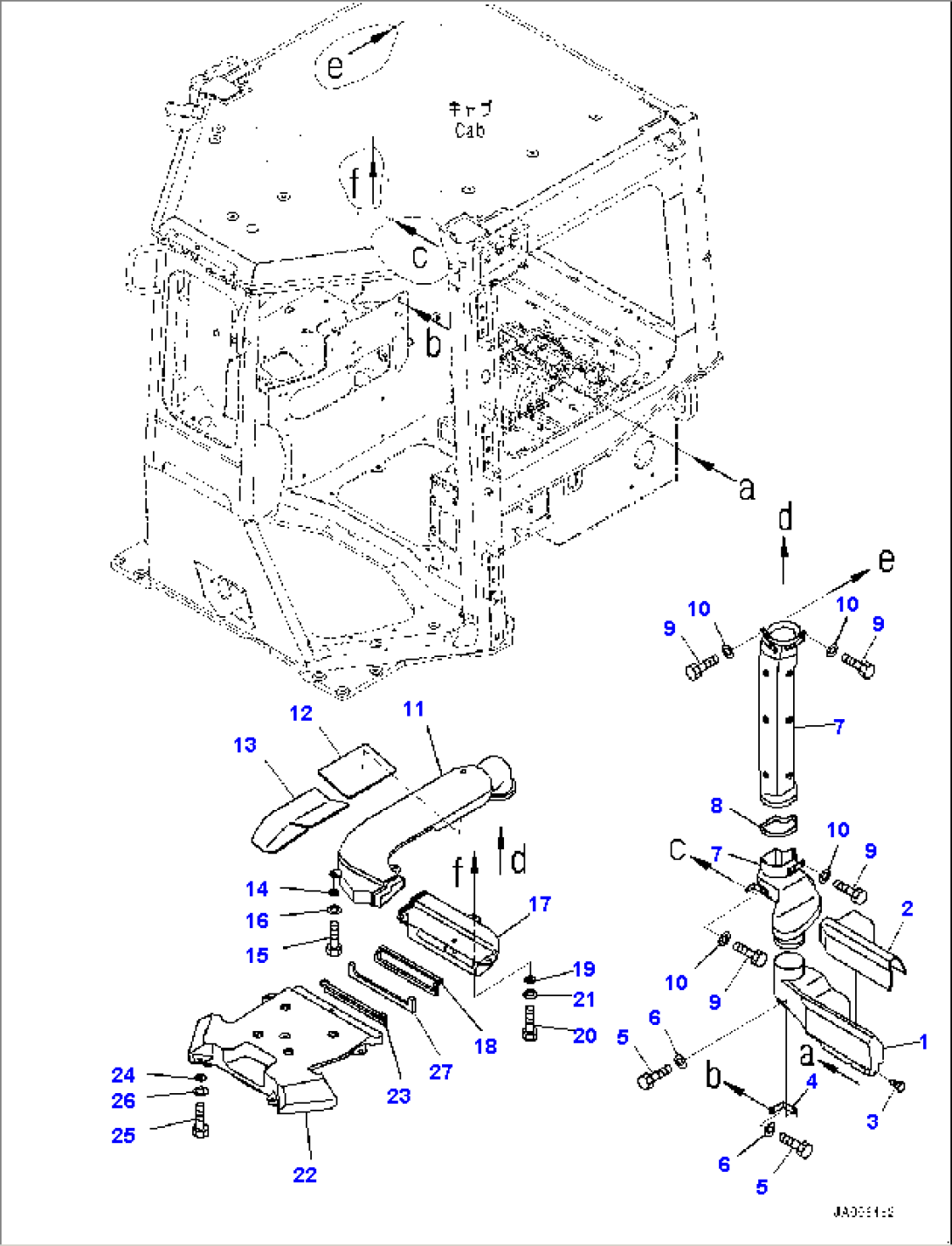

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-Y11-6430 | Duct | 1001- | |
| 2 | 14X-Y11-6290 | Sheet | 1001- | |
| 3 | 208-53-12680 | Clip | 1001- | |
| 4 | 17A-911-5421 | Bracket | 1001- | |
| 5 | 01010-80616 | Bolt | 1001- | |
| 6 | 01643-30623 | Washer | 1001- | |
| 7 | 14X-Y11-1171 | Duct | 1001- | |
| 8 | 14X-Y11-1941 | Sheet | 1001- | |
| 9 | 01010-80616 | Bolt | 1001- | |
| 10 | 01643-30623 | Washer | 1001- | |
| 11 | 14X-Y11-1181 | Duct | 1001- | |
| 12 | 14X-Y79-2230 | Sheet | 1001- | |
| 13 | 14X-Y79-2241 | Sheet | 1001- | |
| 14 | 20Y-53-12310 | Collar | 1001- | |
| 15 | 01010-80616 | Bolt | 1001- | |
| 16 | 01643-30623 | Washer | 1001- | |
| 17 | 14X-Y11-1191 | Duct | 1001- | |
| 18 | 14X-Y11-1260 | Seal | 1001- | |
| 19 | 20Y-53-12310 | Collar | 1001- | |
| 20 | 01010-80616 | Bolt | 1001- | |
| 21 | 01643-30623 | Washer | 1001- | |
| 22 | 14X-Y11-1211 | Duct | 1001- | |
| 23 | 14X-Y11-1260 | Seal | 1001- | |
| 24 | 20Y-53-12310 | Collar | 1001- | |
| 25 | 01010-80616 | Bolt | 1001- | |
| 26 | 01643-30623 | Washer | 1001- | |
| 27 | 14X-Y79-2310 | Sheet | 1001- |
