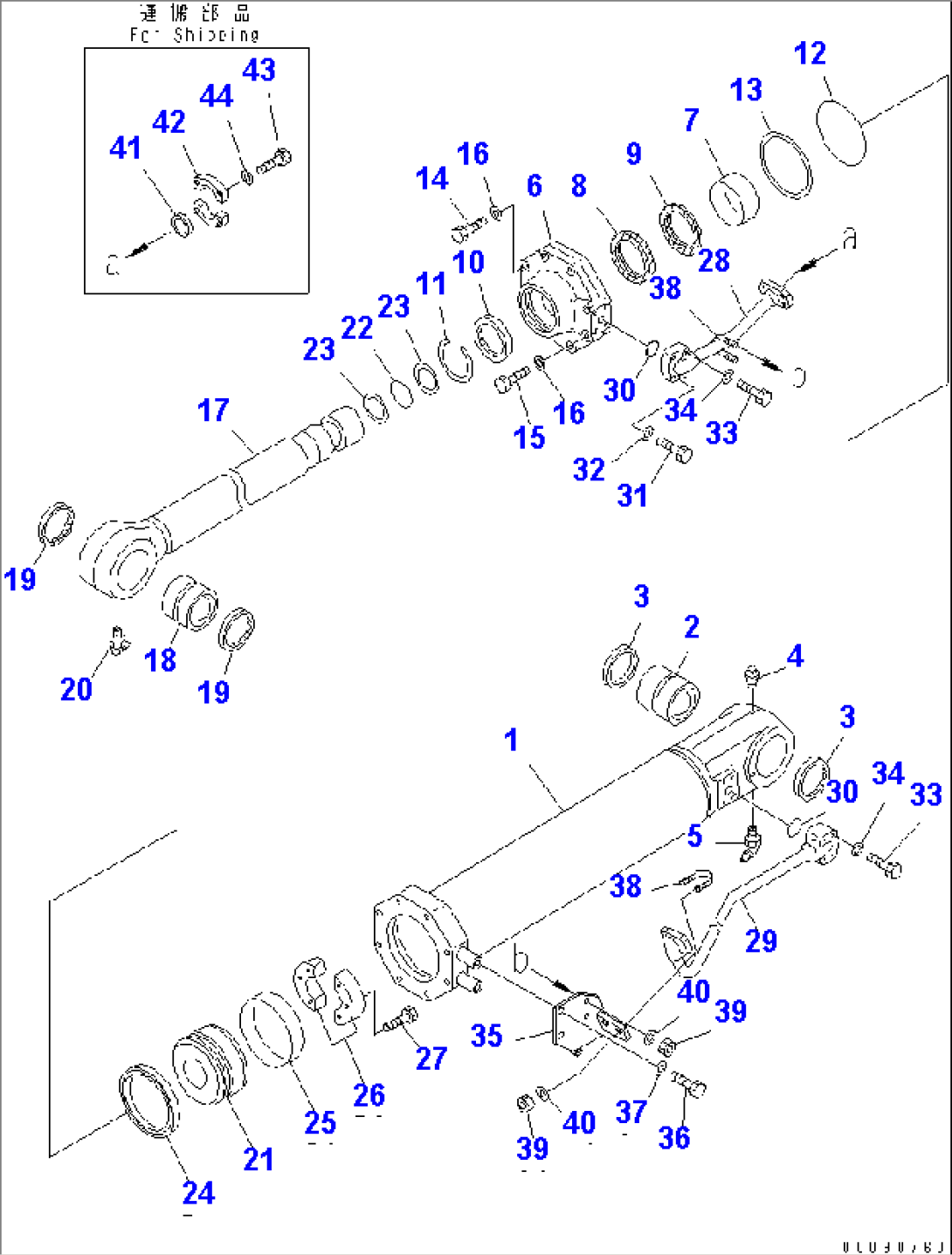

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | 707-01-XYG20 | CYLINDER GROUP,L.H. | 50149- | |
| G-1 | 707-01-XK900 | CYLINDER GROUP,L.H. | 50001-50148 | |
| G-2 | 707-01-XYG30 | CYLINDER GROUP,R.H. | 50149- | |
| G-2 | 707-01-XK910 | CYLINDER GROUP,R.H. | 50001-50148 | |
| ==================== | ||||
| 195-63-01503 | CYLINDER ASS'Y,L.H. | 50001- | ||
| 195-63-01603 | CYLINDER ASS'Y,R.H. | 50001- | ||
| 1 | 195-63-45243 | CYLINDER | 50001- | |
| 2 | 707-76-10120 | BUSHING | 50001- | |
| 3 | 07145-00100 | SEAL,DUST (KIT) | 50001- | |
| 4 | 07042-00108 | PLUG | 50001- | |
| 5 | 07020-00675 | FITTING,GREASE | 50001- | |
| 6 | 707-27-20330 | HEAD,CYLINDER | 50001- | |
| 7 | 707-52-90851 | BUSHING | 50001- | |
| 8 | 707-51-11030 | PACKING,ROD (KIT) | 50001- | |
| 9 | 707-51-11640 | RING,BUFFER (KIT) | 50001- | |
| 10 | 198-63-94170 | SEAL,DUST (KIT) | 50001- | |
| 11 | 07179-13126 | RING,SNAP | 50001- | |
| 12 | 07000-15190 | O-RING (KIT) | 50001- | |
| 13 | 07146-05192 | RING,BACK-UP (KIT) | 50001- | |
| 14 | 01010-82080 | BOLT | 50001- | |
| 15 | 01010-82095 | BOLT | 50001- | |
| 16 | 01643-32060 | WASHER | 50001- | |
| 17 | 195-63-45221 | ROD,PISTON | 50001- | |
| 18 | 707-76-10110 | BUSHING | 50001- | |
| 19 | 07145-00100 | SEAL,DUST (KIT) | 50001- | |
| 20 | 07020-00900 | FITTING,GREASE | 50001- | |
| 21 | 707-36-20110 | PISTON | 50001- | |
| 22 | 07000-B2085 | O-RING (KIT) | 50001- | |
| 23 | 07001-02085 | RING,BACK-UP (KIT) | 50001- | |
| 24 | 707-44-20190 | RING,PISTON (KIT) | 50001- | |
| 25 | 07155-02045 | RING,WEAR (KIT) | 50001- | |
| 26 | 707-40-22021 | SPACER | 50001- | |
| 27 | 01010-61455 | BOLT | 50001- | |
| 28 | 195-63-45170 | TUBE,L.H. | 50001- | |
| 28 | 195-63-45270 | TUBE,R.H. | 50001- | |
| 29 | 707-86-13730 | TUBE,L.H. | 50001- | |
| 29 | 707-86-13740 | TUBE,R.H. | 50001- | |
| 30 | 07000-13035 | O-RING (KIT) | 50001- | |
| 31 | 07372-21055 | BOLT | 50001- | |
| 32 | 01643-51032 | WASHER | 50001- | |
| 33 | 07372-21060 | BOLT | 50001- | |
| 34 | 01643-51032 | WASHER | 50001- | |
| 35 | 195-78-72580 | BRACKET,L.H. | 50001- | |
| 35 | 195-78-72590 | BRACKET,R.H. | 50001- | |
| 36 | 01010-81230 | BOLT | 50001- | |
| 37 | 01643-31232 | WASHER | 50001- | |
| 38 | 07283-33450 | CLIP | 50001- | |
| 39 | 01597-01009 | NUT | 50001- | |
| 40 | 01643-31032 | WASHER | 50001- | |
| 41 | 707-88-33040 | CAP | 50001- | |
| 42 | 07371-31049 | FLANGE,SPLIT | 50001- | |
| 43 | 07372-21035 | BOLT | 50001- | |
| 44 | 01643-51032 | WASHER | 50001- | |
| ==================== | ||||
| KIT | 707-99-74020 | SERVICE KIT | 50001- |
