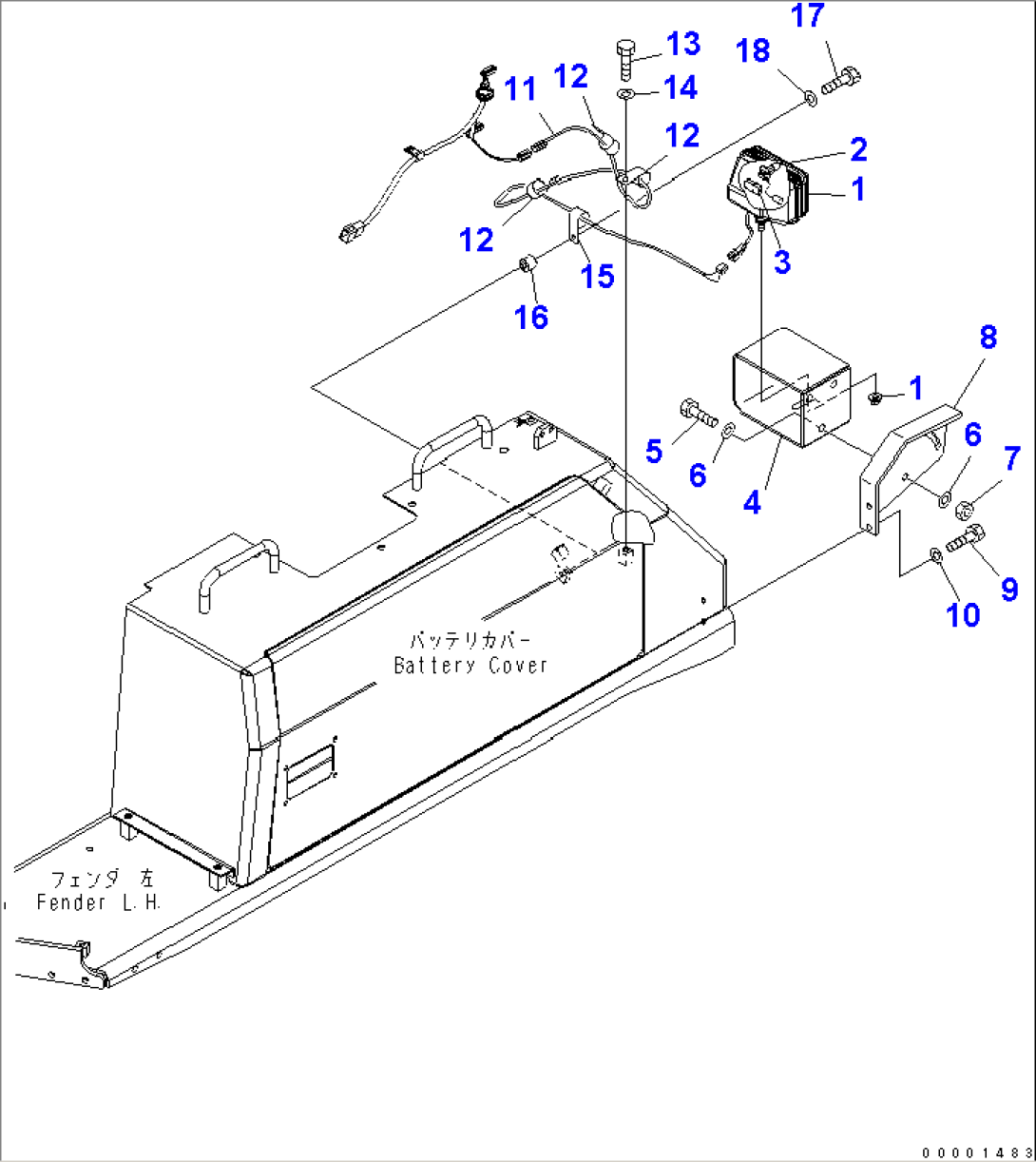

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17930 | LAMP ASS'Y | 10001- | |
| 2 | 17A-06-17970 | BULB, 70W,70W | 10001- | |
| 3 | 17A-06-17980 | SLEEVE | 10001- | |
| 4 | 154-06-71620 | COVER | 10001- | |
| 5 | 01010-81240 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 01580-01210 | NUT | 10001- | |
| 8 | 154-06-71611 | BRACKET | 10001- | |
| 9 | 01010-81230 | BOLT | 10001- | |
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 154-06-71380 | WIRING HARNESS | 10001- | |
| 12 | 04434-51012 | CLIP | 10001- | |
| 13 | 01010-81230 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 04434-51012 | CLIP | 10001- | |
| 16 | 195-33-11220 | SPACER | 10001- | |
| 17 | 01010-81240 | BOLT | 10001- | |
| 18 | 01643-31232 | WASHER | 10001- |
