| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-922-1110 | BUCKET | 11001- | |
| 2 | 208-922-1120 | SHANK (WELDED) | 11001- | |
| 3 | 208-922-1130 | ADAPTER (WELDED) | 11001- | |
| 4 | 195-78-21331 | POINT | 11001- | |
| 5 | 09244-02508 | PIN | 11001- | |
| 6 | 208-70-34270 | COLLAR | 11001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400 3 s/n 11001 up
- Work equipment
- Ripper bucket¤ 1.0m3 width 1250mm (for backhoe)
Поиск по каталогу

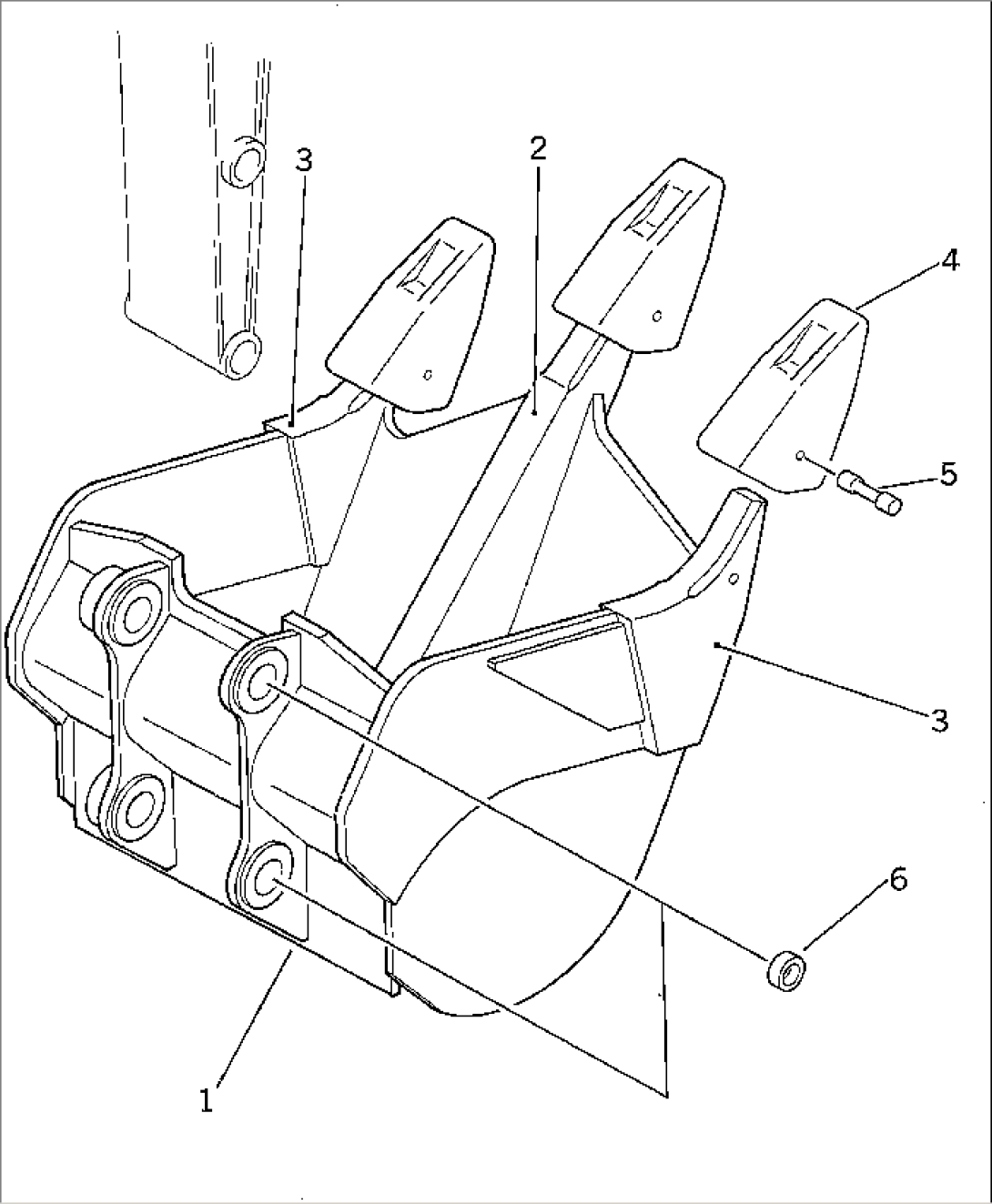

RIPPER BUCKET¤ 1.0M3 WIDTH 1250MM (FOR BACKHOE)
