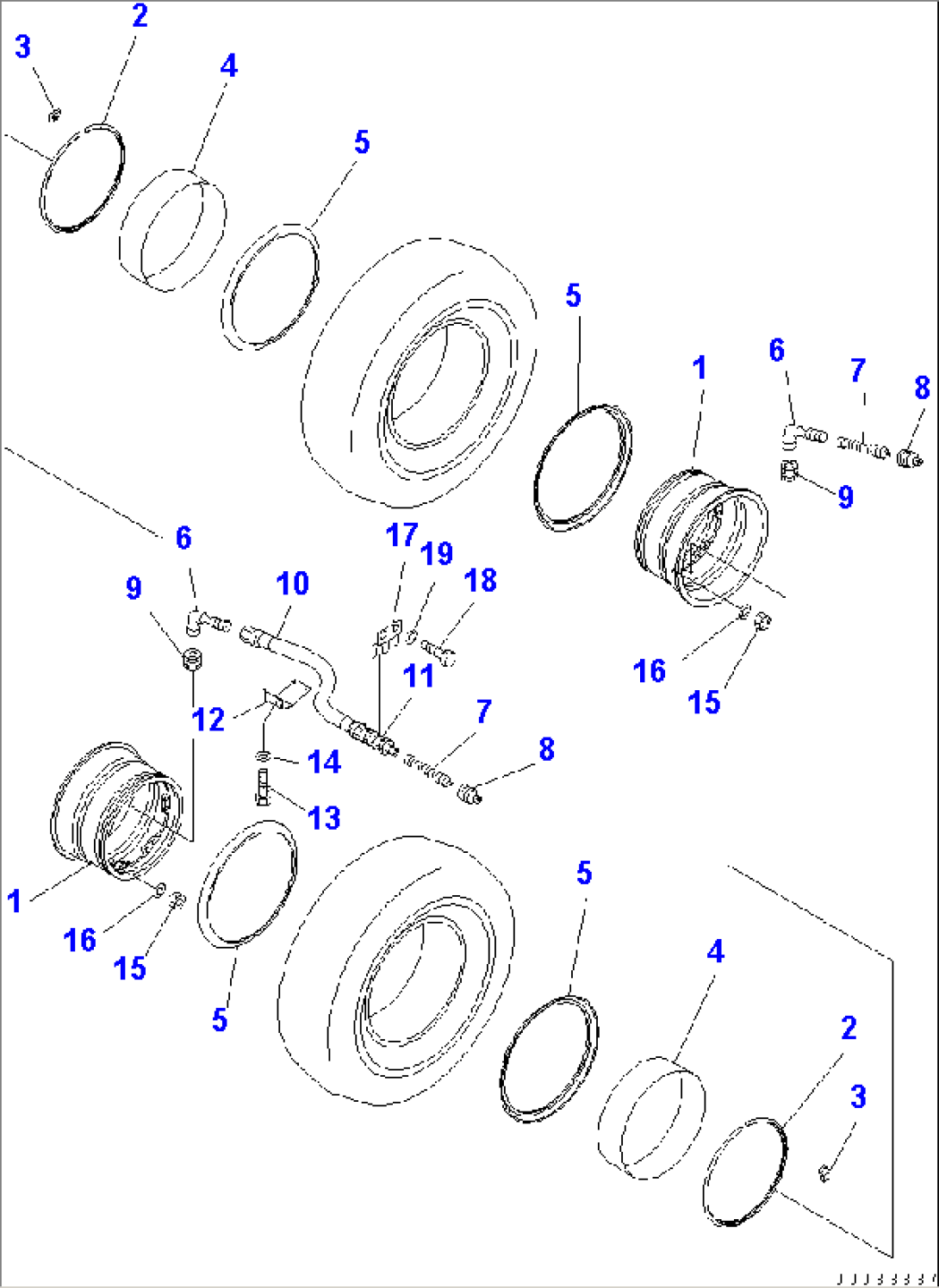

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-30-72001 | REAR WHEEL ASS'Y | 1201-@ | ||
| 567-30-72000 | REAR WHEEL ASS' | 1001-1200 | ||
| 567-30-71101 | RIM ASS'Y | 1201-@ | ||
| 567-30-71100 | RIM ASS'Y | 1001-1200 | ||
| 1 | 567-30-71111 | BASE | 1201-@ | |
| 1 | 567-30-71110 | BASE | 1001-1200 | |
| 2 | 566-30-11640 | RING,LOCK | 1001-@ | |
| 3 | 566-30-11650 | DRIVER | 1001-@ | |
| 4 | 566-30-11630 | BAND,BEAD SEAT | 1001-@ | |
| 5 | 565-30-12440 | RING | 1001-@ | |
| 09280-10020 | VALVE ASS'Y | 1001-@ | ||
| 6 | 09280-10130 | STEM | 1001-@ | |
| 7 | 09281-00041 | CORE | 1001-@ | |
| 8 | 09282-00022 | CAP | 1001-@ | |
| 9 | 09283-00000 | SEAT | 1001-@ | |
| 10 | 567-30-72130 | EXTENSION | 1001-@ | |
| 11 | 01640-21223 | WASHER | 1001-@ | |
| 12 | 567-30-72121 | COVER | 1001-1456 | |
| 13 | 01010-80820 | BOLT | 1001-1456 | |
| 14 | 01643-30823 | WASHER | 1001-1456 | |
| 15 | 426-22-12931 | NUT | 1201-@ | |
| 15 | 423-22-12790 | NUT | 1001-1200 | |
| 16 | 01643-32460 | WASHER | 1201-@ | |
| 01643-32060 | WASHER | 1001-1200 | ||
| 17 | 561-22-32620 | PLATE | 1001-@ | |
| 18 | 01010-81220 | BOLT | .-@ | |
| 18 | \0\01010-51220 | BOLT | 1001-. | |
| 19 | 01643-31232 | WASHER | 1001-@ |
