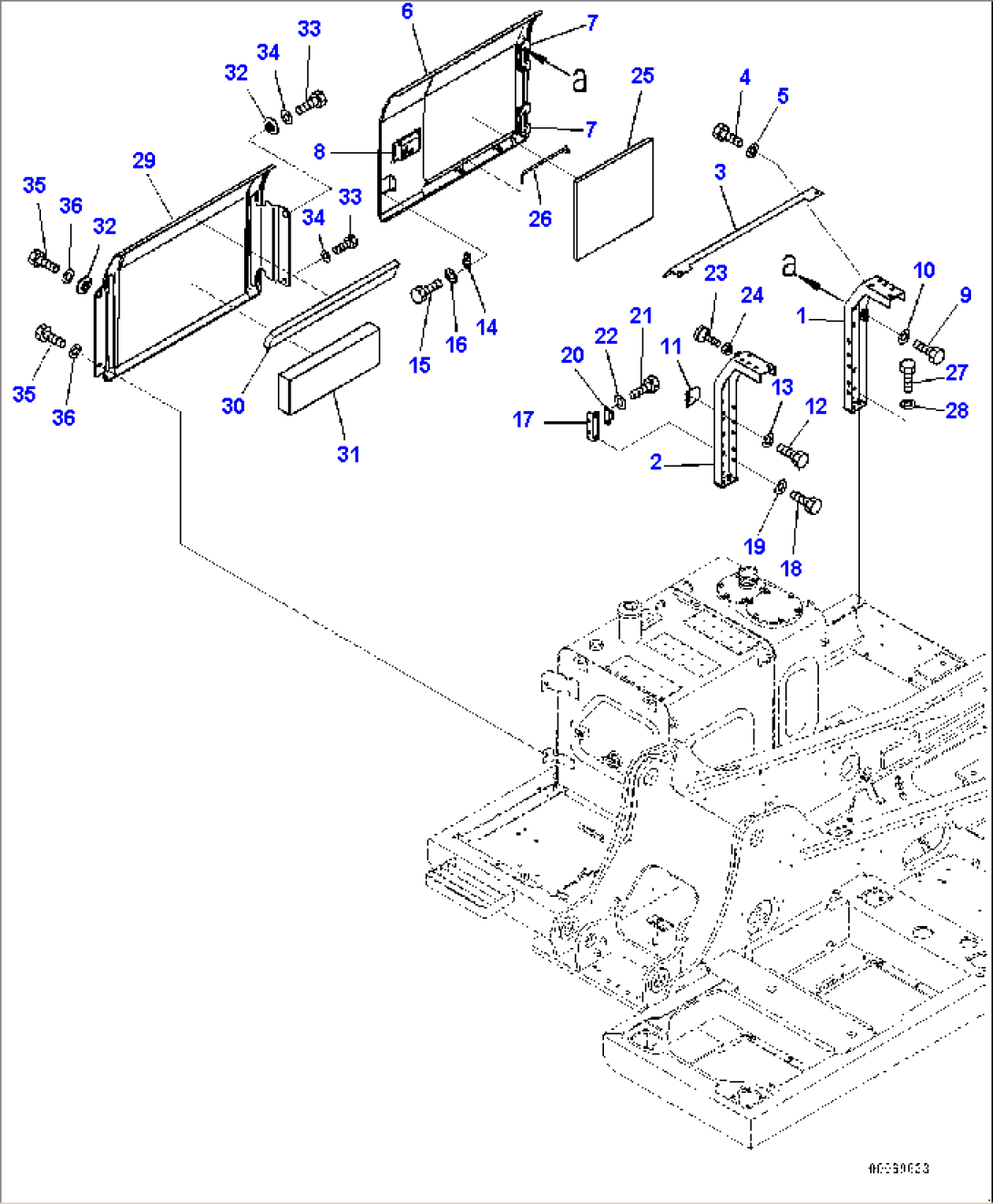

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-71411 | Frame | 30117- | |
| 2 | 20Y-54-71421 | Frame | 30117- | |
| 3 | 20Y-54-71431 | Plate | 30117- | |
| 4 | 01010-81225 | Bolt | 30117- | |
| 5 | 01643-31232 | Washer | 30117- | |
| 6 | 206-54-21711 | Cover | 30117- | |
| 7 | 20Y-54-63414 | Hinge, Welded | 30117- | |
| 8 | 20Y-54-71491 | Lock, Welded | 30117- | |
| 8 | 20Y-54-73171 | Lock Assembly | 30117- | |
| 9 | 01010-81225 | Bolt | 30117- | |
| 10 | 01643-31232 | Washer | 30117- | |
| 11 | 20Y-54-61470 | Plate | 30117- | |
| 12 | 01010-81225 | Bolt | 30117- | |
| 13 | 01643-31232 | Washer | 30117- | |
| 14 | 205-54-53550 | Dovetail | 30117- | |
| 15 | 01010-80612 | Bolt | 30117- | |
| 16 | 01643-30623 | Washer | 30117- | |
| 17 | 20Y-54-28170 | Bracket | 30117- | |
| 18 | 01010-81225 | Bolt | 30117- | |
| 19 | 01643-31232 | Washer | 30117- | |
| 20 | 205-54-51971 | Dovetail | 30334- | |
| 20 | 205-54-51970 | Dovetail | 30117-30333 | |
| 21 | 01010-80616 | Bolt | 30117- | |
| 22 | 01643-30623 | Washer | 30117- | |
| 23 | 20Y-54-11611 | Stopper | 30117- | |
| 24 | 01580-11008 | Nut | 30117- | |
| 25 | 20Y-54-71440 | Sheet | 30117- | |
| 26 | 20Y-54-29232 | Bar | 30117- | |
| 27 | 01010-81230 | Bolt | 30117- | |
| 28 | 01643-31232 | Washer | 30117- | |
| 28 | 20Y-54-71153 | Cover | 30117- | |
| 29 | Cover | 30117- | ||
| 30 | 20Y-54-61391 | Sheet | 30117- | |
| 31 | 20Y-54-76910 | Sheet | 30117- | |
| 32 | 208-54-57180 | Collar | 30117- | |
| 33 | 01010-81230 | Bolt | 30117- | |
| 34 | 01643-31232 | Washer | 30117- | |
| 35 | 01010-81240 | Bolt | 30117- | |
| 36 | 01643-31232 | Washer | 30117- |
