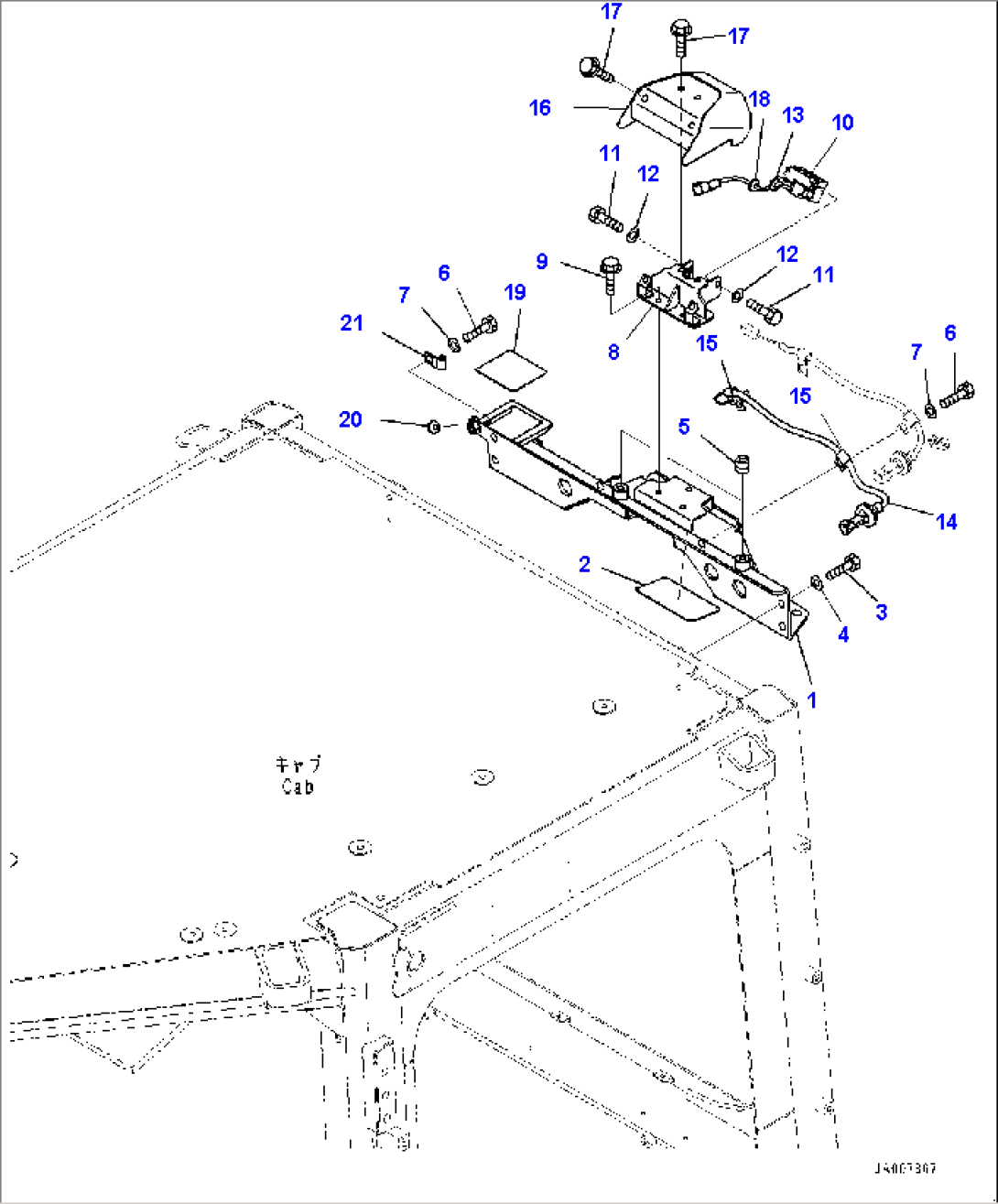

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-979-5171 | Bracket | 1001- | |
| 2 | 17A-979-5190 | Rubber | 1001- | |
| 3 | 01010-81225 | Bolt | 1001- | |
| 4 | 01643-31232 | Washer | 1001- | |
| 5 | 01310-21212 | Screw | 1001- | |
| 6 | 01010-81225 | Bolt | 1001- | |
| 7 | 01643-31232 | Washer | 1001- | |
| 8 | 14X-Y79-6111 | Bracket | 1001- | |
| 9 | 01435-00816 | Bolt | 1001- | |
| 10 | 7835-33-2000 | Camera | 1001- | |
| 11 | 01010-80616 | Bolt | 1001- | |
| 12 | 01643-30623 | Washer | 1001- | |
| 13 | 14X-06-63660 | Grommet | 1001- | |
| 14 | 17A-06-51252 | Wiring Harness | 1001- | |
| 15 | 04434-51012 | Clip | 1001- | |
| 16 | 17A-979-5161 | Cover | 1001- | |
| 17 | 01435-00816 | Bolt | 1001- | |
| 18 | 14X-06-63660 | Grommet | 1001- | |
| 19 | 17A-06-51950 | Plate | 1001- | |
| 20 | 22T-05-13110 | Grommet | 1001- | |
| 21 | 04434-50812 | Clip | 1001- |
