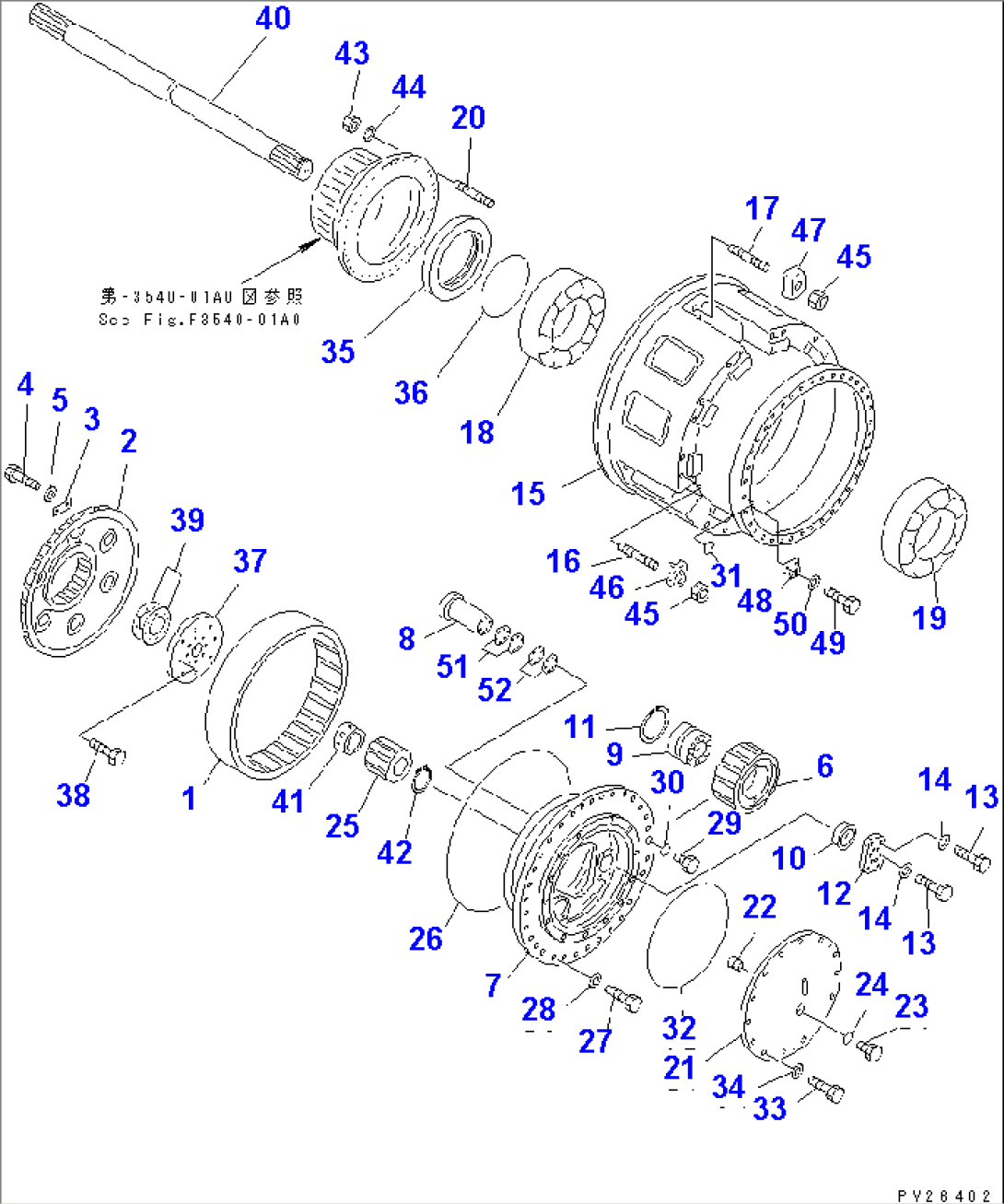

REAR FINAL DRIVE

Item	Part No.	Part Name	Qty	Serial No.
1	561-22-62540	GEAR		1021-
2	561-22-62311	HUB		1021-
3	285-22-12341	HOLDER		1021-
4	01010-61225	BOLT		1021-
5	01643-31232	WASHER		1021-
6	561-22-62532	GEAR		.-
	\0\561-22-62531	GEAR		1021-.
7	561-22-62610	CARRIER		1021-
8	561-22-62511	SHAFT		1021-
9	561-22-62521	BEARING		1021-
10	427-22-12570	SPACER		1021-
11	04071-00180	RING,SNAP		1021-
12	427-22-12560	HOLDER		1021-
13	01010-61660	BOLT		1021-
14	01643-31645	WASHER		1021-
15	585-22-22711	HUB		1021-
16	561-22-62910	STUD		1021-
17	561-22-62910	STUD		1021-
18	585-22-22941	BEARING		1052-
	(\0\585-22-22940)	BEARING		1021-1051
19	585-22-22961	BEARING		1052-
	(\0\585-22-22960)	BEARING		1021-1051
20	01144-82050	STUD		1021-
21	561-22-62621	COVER		1021-
22	562-22-12630	BUTTON		1021-
23	07044-13620	PLUG		1021-
24	07002-13634	O-RING		1021-
25	561-22-62421	GEAR		1021-
26	562-22-12920	O-RING (K8)		1021-
27	01010-82460	BOLT		1021-
28	01643-32460	WASHER		1021-
29	07044-12412	PLUG		1021-
30	07002-02434	O-RING		1021-
31	07000-03028	O-RING (K8)		1021-
32	566-09-21110	O-RING (K8)		1021-
33	01010-81235	BOLT		1021-
34	01643-31232	WASHER		1021-
35	568-22-12143	RETAINER		1021-
36	07000-05320	O-RING (K8)		1021-
37	561-22-62211	RETAINER		1021-
38	01010-62495	BOLT		1021-
39	561-22-00110	SHIM ASS'Y		1052-
	(\0\568-22-00110)	SHIM ASS'Y		1021-1051
	\6\	SHIM¤ 0.2MM		1021-
	\6\	SHIM¤ 0.3MM		1021-
	\6\	SHIM¤ 1.0MM		1021-
	\6\	SHIM¤ 0.05MM		1052-
40	585-22-22410	SHAFT		1021-
41	568-22-12442	SPACER		1021-
42	561-22-62810	RING		1021-
43	01580-12016	NUT		1021-
44	01643-32060	WASHER		1021-
45	582-27-11291	NUT		1021-
46	561-22-62841	CLAMP		1021-
47	561-22-62830	CLAMP		1021-
48	585-30-21620	PLATE		1021-
49	01010-81220	BOLT		1021-
50	01643-31232	WASHER		1021-
51	561-22-62920	SHIM,0.05MM		1021-
52	561-22-62940	SHIM,0.1MM		1021-
