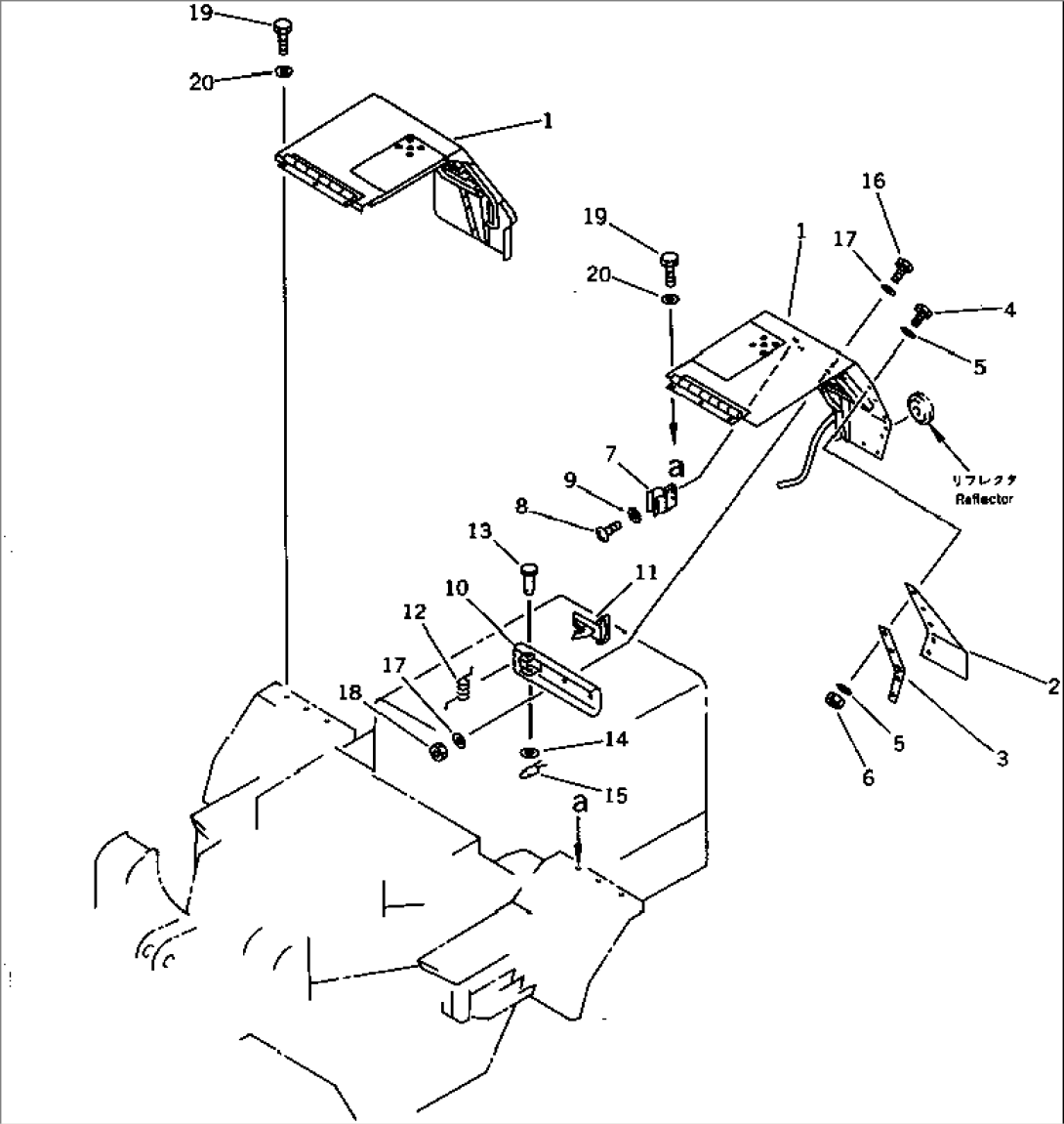

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-970-1110 | FENDER,L.H. | 10001- | |
| 1 | 417-970-1121 | FENDER,R.H. | 10001- | |
| 2 | 416-970-1160 | RUBBER | 10001- | |
| 3 | 416-970-1170 | PLATE,L.H. | 10001- | |
| 3 | 416-970-1180 | PLATE,R.H. | 10001- | |
| 4 | 01010-51030 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 426-43-19160 | NUT | 10001- | |
| 7 | 419-54-14310 | SPRING | 10001- | |
| 8 | 01220-40406 | SCREW | 10001- | |
| 9 | 01641-20405 | WASHER | 10001- | |
| 10 | 419-54-14231 | SUPPORT | 10001- | |
| 11 | 419-54-14241 | CATCH | 10001- | |
| 12 | 419-54-14250 | SPRING | 10001- | |
| 13 | 419-54-14260 | PIN | 10001- | |
| 14 | 01643-30623 | WASHER | 10001- | |
| 15 | 04052-00633 | PIN,SNAP | 10001- | |
| 16 | 01010-51230 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 01580-01210 | NUT | 10001- | |
| 19 | 01010-51220 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- |
