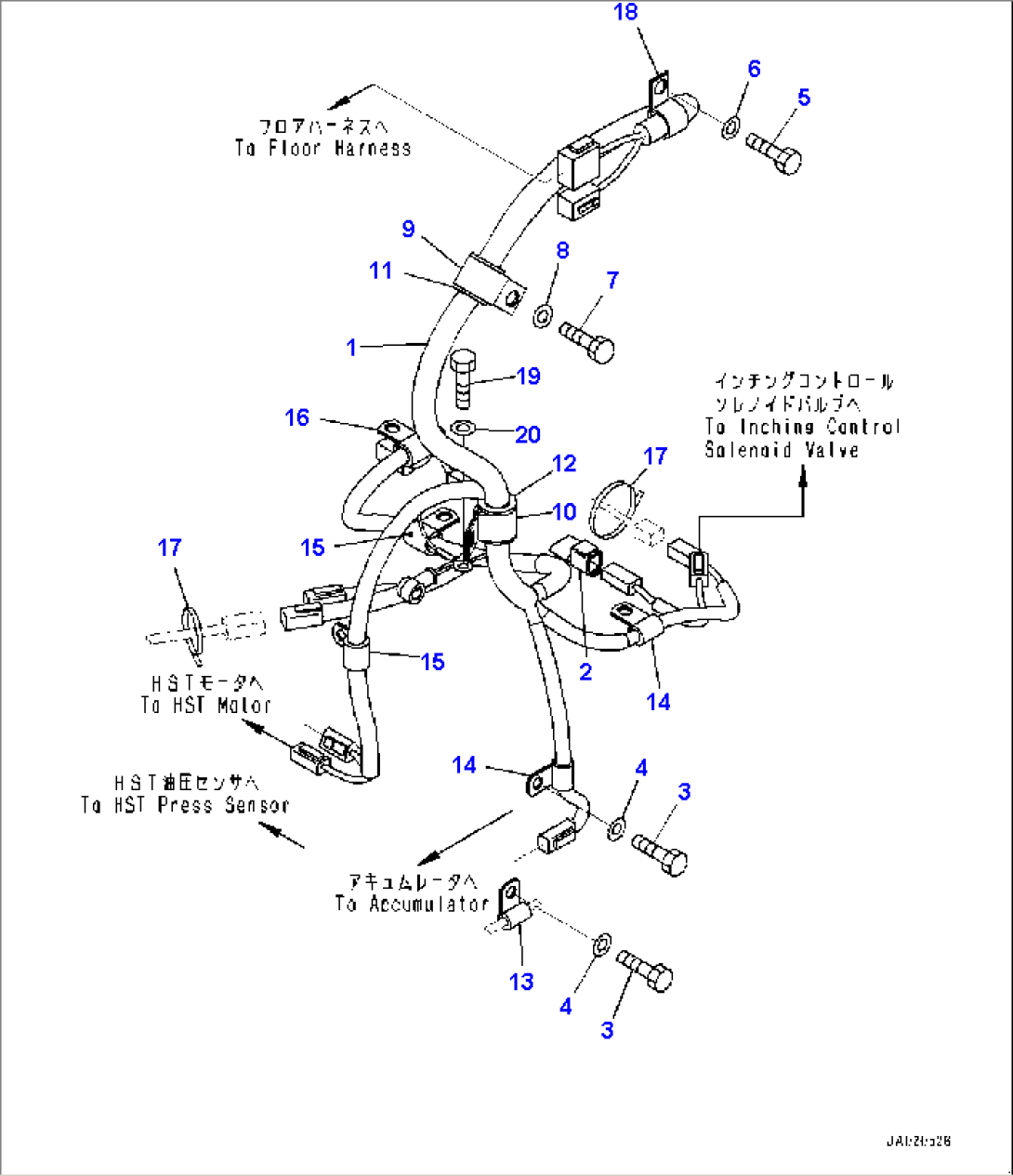

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-06-48123 | Wiring Harness | 70641- | |
| 1 | 419-06-48122 | Wiring Harness | 70452-70640 | |
| 2 | 21J-06-13661 | Diode | 70452- | |
| 3 | 01010-81020 | Bolt | 70452- | |
| 4 | 01643-31032 | Washer | 70452- | |
| 5 | 01010-81020 | Bolt | 70452- | |
| 6 | 01643-31032 | Washer | 70452- | |
| 7 | 01010-81020 | Bolt | 70452- | |
| 8 | 01643-31032 | Washer | 70452- | |
| 9 | 04434-52712 | Clip | 70452- | |
| 10 | 04434-52712 | Clip | 70452- | |
| 11 | 07095-20419 | Cushion | 70452- | |
| 12 | 07095-20419 | Cushion | 70452- | |
| 13 | 600-051-2080 | Clip | 70452- | |
| 14 | 600-051-2100 | Clip | 70452- | |
| 15 | 600-051-2140 | Clip | 70452- | |
| 16 | 600-051-2140 | Clip | 70452- | |
| 17 | 08034-40521 | Band | 70452- | |
| 18 | 04434-51912 | Clip | 70452- | |
| 19 | 01010-80816 | Bolt | 70452- | |
| 20 | 01643-30823 | Washer | 70452- |
