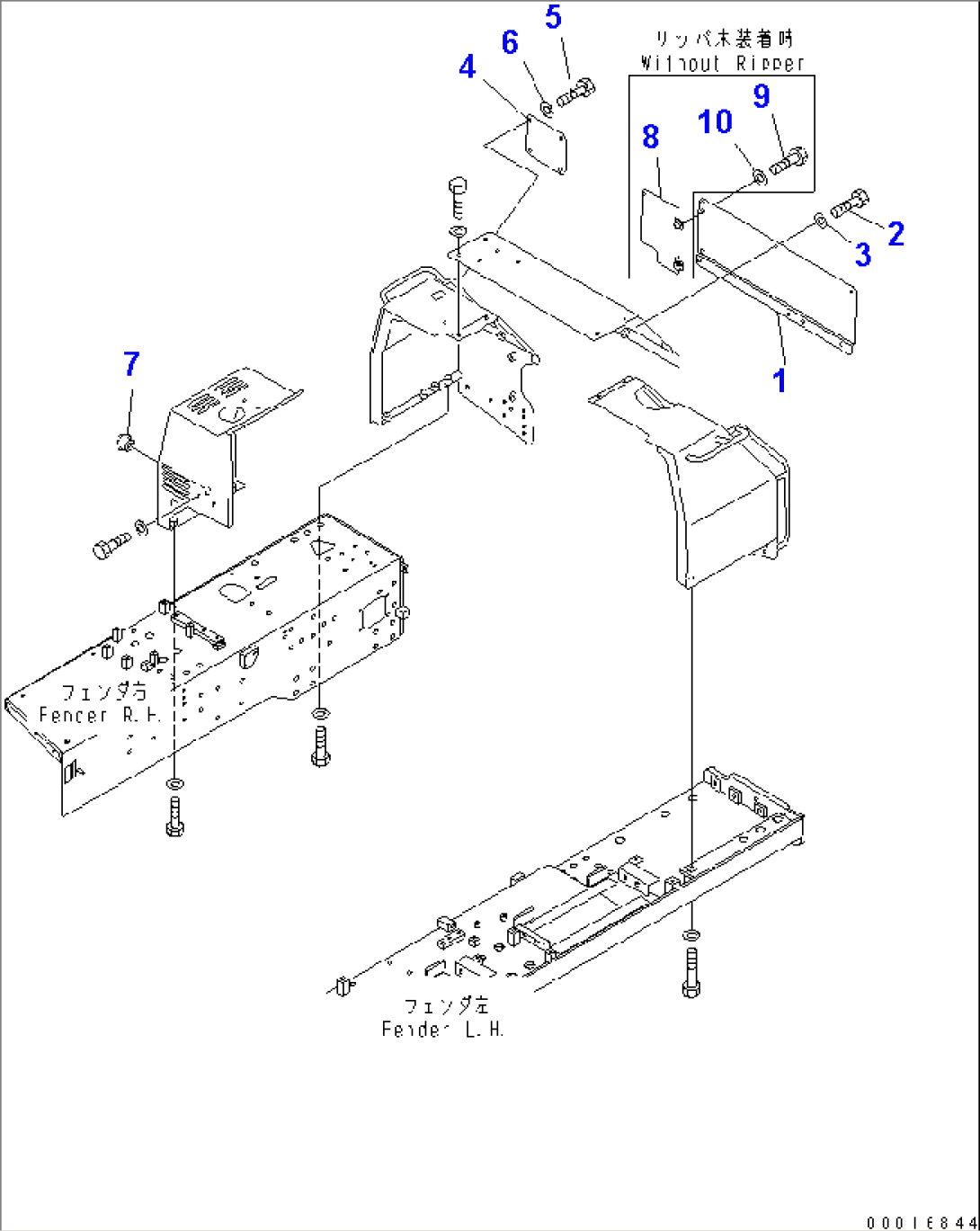

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 175-54-47360 | COVER | 57001- | |
| 2 | 01010-81220 | BOLT | 57001- | |
| 3 | 198-54-42280 | WASHER | 57001- | |
| 4 | 175-978-6281 | COVER | 57001- | |
| 5 | 01010-81225 | BOLT | 57001- | |
| 6 | 198-54-42280 | WASHER | 57001- | |
| 7 | 198-54-41941 | CAP | 57001- | |
| 8 | 175-54-47241 | COVER,(WITHOUT RIPPER) | 57001- | |
| 9 | 01010-81225 | BOLT,(WITHOUT RIPPER) | 57001- | |
| 10 | 198-54-42280 | WASHER,(WITHOUT RIPPER) | 57001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D155a 2a s/n 57001 up
- Guard
- Rear bracket (without canopy)
