| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-23-10005 | REAR AXLE ASS'Y | 11444- | |
| 1 | \0\426-23-10004 | REAR AXLE ASS'Y | 10270-11443 | |
| 1 | \0\426-23-10003 | REAR AXLE ASS'Y | 10245-10269 | |
| 1 | \0\426-23-10002 | REAR AXLE ASS'Y | 10167-10244 | |
| 1 | \0\426-23-10001 | REAR AXLE ASS'Y | 10001-10166 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3201 TO 3231. | ||||

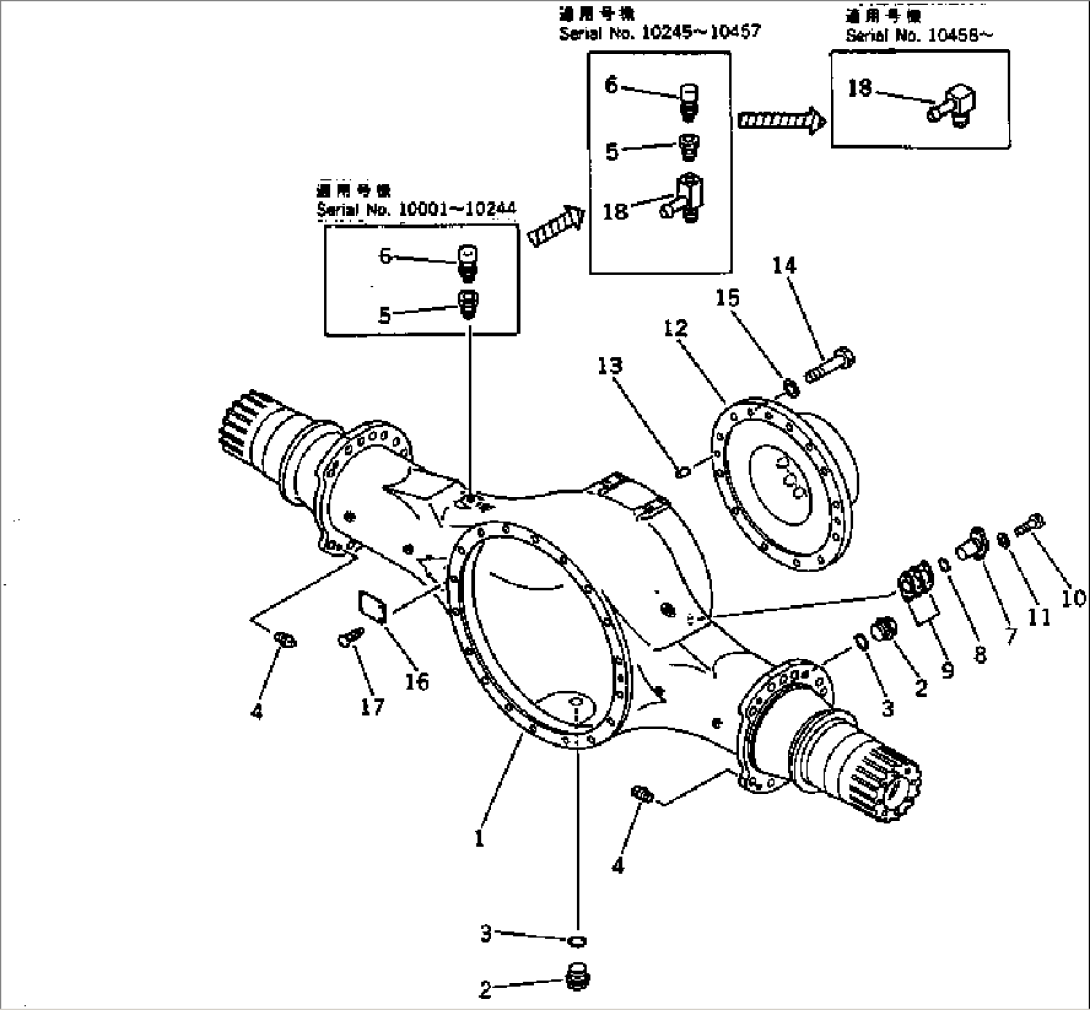

| 1 | 426-23-13001 | HOUSING ASS'Y | 10001- | |
| 1 | 426-23-13101 | HOUSING | 10403- | |
| 1 | \0\426-23-13100 | HOUSING | 10001-10402 | |
| 2 | 07044-13620 | PLUG | 10001- | |
| 3 | 07002-03634 | O-RING | 10001- | |
| 4 | 07042-20312 | PLUG | 10001- | |
| 5 | 07326-10201 | ADAPTER | 10001-10457 | |
| 6 | 07030-01030 | BREATHER | 10001-10457 | |
| 7 | 425-22-13510 | SHAFT | 10001- | |
| 8 | 07000-03035 | O-RING | 10001- | |
| 9 | 425-22-00060 | SHIM KIT | 10001- | |
| 9 | \6\ | SHIM, 0.2MM | 10001- | |
| 9 | \6\ | SHIM, 0.3MM | 10001- | |
| 9 | \6\ | SHIM, 1.0MM | 10001- | |
| 10 | 01010-61230 | BOLT | 10001- | |
| 11 | 01643-31232 | WASHER | 10001- | |
| 12 | 426-23-13311 | SUPPORT | 10399- | |
| 12 | \0\426-23-13310 | SUPPORT | 10001-10398 | |
| 13 | 04020-01842 | PIN,DOWEL | 10001- | |
| 14 | 01010-62060 | BOLT | 10001- | |
| 15 | 01643-32060 | WASHER | 10001- | |
| 16 | 815-02-10110 | PLATE, NAME,(LIMITED SUPPLY) | 10001- | |
| 17 | 04418-13060 | SCREW | 10001- | |
| 18 | 415-15-18431 | ELBOW | 10458- | |
| 18 | 425-35-13290 | ELBOW | 10245-10457 |
