| Item | Part No. | Part Name | Qty | Serial No. |
| 234-22-80100 | Axle Assembly | 26001- | ||

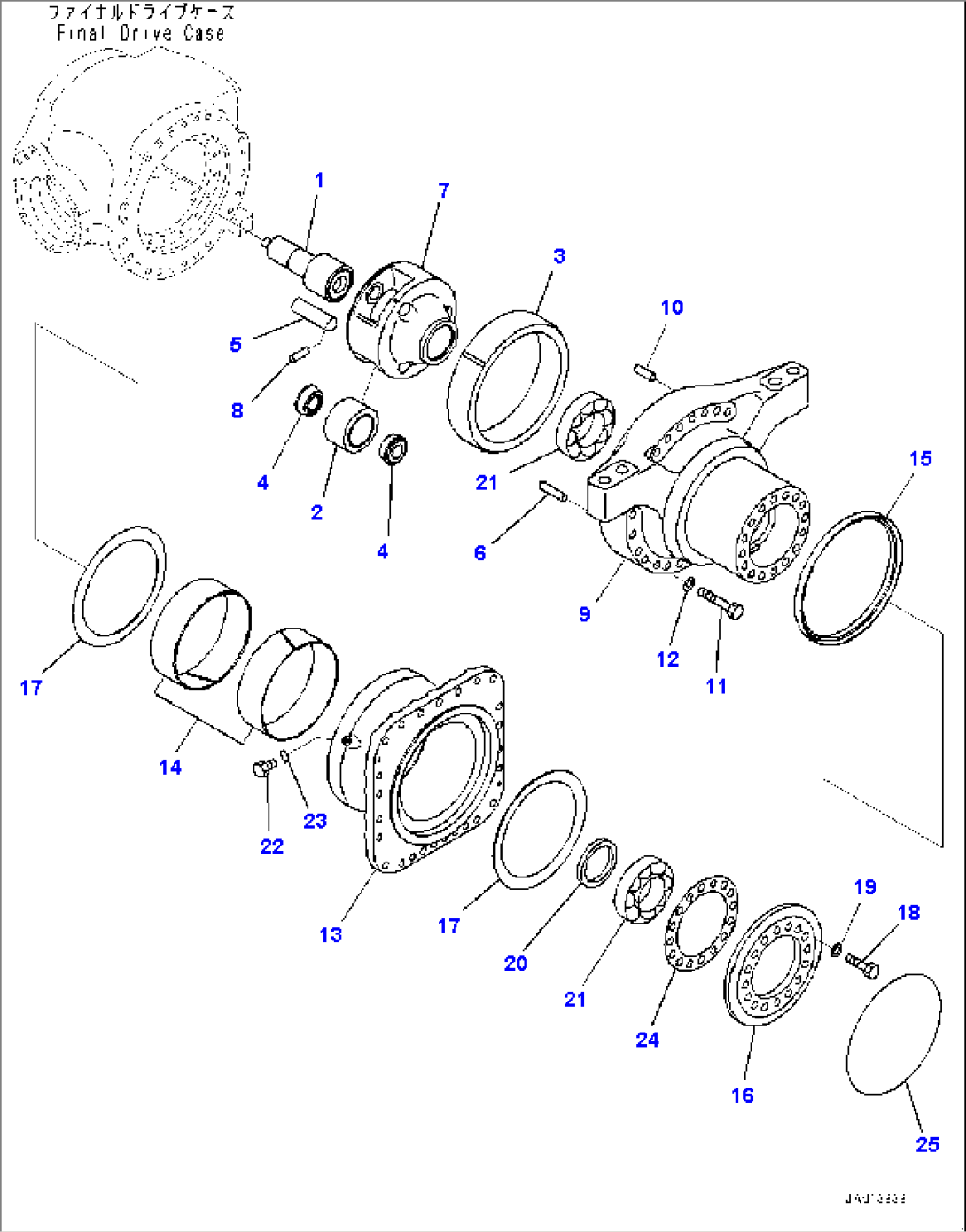

| 234-22-82000 | Final Drive Assembly | 26001- | ||
| 1 | 234-22-81840 | Shaft | 26001- | |
| 2 | 234-22-81850 | Gear | 26001- | |
| 3 | 234-22-81860 | Gear | 26001- | |
| 4 | 234-22-81870 | Bearing | 26001- | |
| 5 | 421-23-32511 | Shaft | 26001- | |
| 6 | 419-22-12581 | Pin, Dowel | 26001- | |
| 7 | 234-22-81550 | Carrier | 26001- | |
| 8 | 421-22-32570 | Pin | 26001- | |
| 9 | 234-22-81520 | Case | 26001- | |
| 10 | 04020-01638 | Pin, Dowel | 26001- | |
| 11 | 01011-62040 | Bolt | 26001- | |
| 12 | 01643-32060 | Washer | 26001- | |
| 13 | 234-22-81530 | Flange | 26001- | |
| 14 | 232-22-51741 | Bushing | 26280- | |
| 14 | 232-22-51740 | Bushing | 26001-26279 | |
| 15 | 234-22-81930 | Seal | 26001- | |
| 16 | 234-22-81940 | Plate | 26001- | |
| 17 | 234-22-81950 | Washer | 26001- | |
| 18 | 01010-62080 | Bolt | 26001- | |
| 19 | 01643-32060 | Washer | 26001- | |
| 20 | 07012-00105 | Seal, Oil | 26001- | |
| 21 | 234-22-81310 | Bearing | 26001- | |
| 22 | 07040-11007 | Plug | 26001- | |
| 23 | 07002-11023 | O-ring | 26001- | |
| 24 | 234-22-81100 | Shim Assembly | 26001- | |
| 24 | 234-22-81160 | Shim, T=0.1mm | 26001- | |
| 24 | 234-22-81170 | Shim, T=0.2mm | 26001- | |
| 24 | 234-22-81180 | Shim, T=0.5mm | 26001- | |
| 25 | 07000-75385 | O-ring | 26001- |
