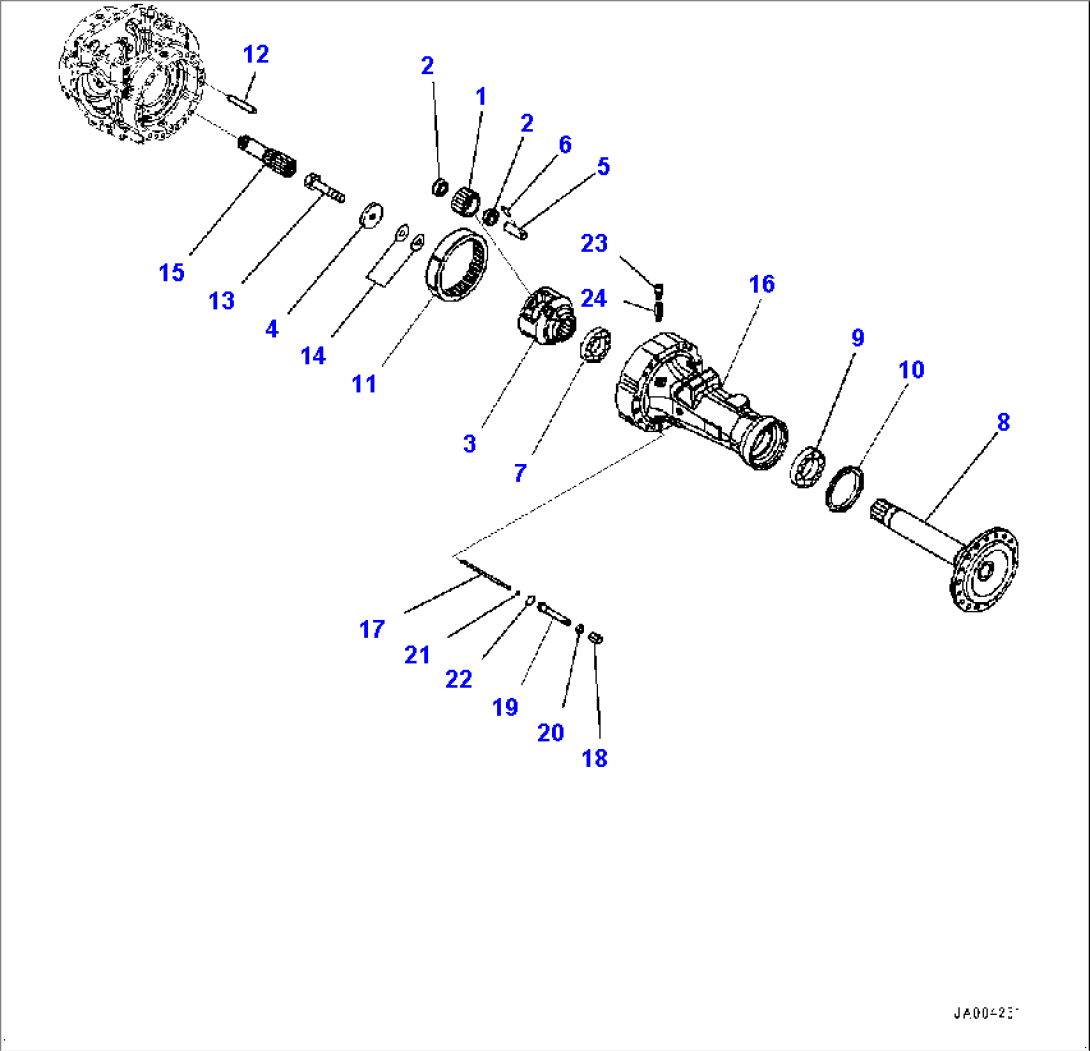

| Item | Part No. | Part Name | Qty | Serial No. |
| 424-23-30013 | Axle Assembly | 66039- | ||
| 424-23-30012 | Axle Assembly | 65828-66038 | ||
| 424-23-30011 | Axle Assembly | 65501-65827 | ||
| 424-23-32020 | Final Drive Assembly | 65501- | ||
| 1 | 423-22-32531 | Gear | 65501- | |
| 2 | 421-23-32810 | Bearing | 65501- | |
| 3 | 423-22-32662 | Carrier | 65501- | |
| 4 | 421-23-32352 | Washer | 65501- | |
| 5 | 423-22-22510 | Shaft | 65501- | |
| 6 | 419-22-12570 | Pin | 65501- | |
| 7 | 423-22-32870 | Bearing | 65501- | |
| 8 | 424-23-32432 | Shaft, Axle | 65726- | |
| 8 | 424-23-32431 | Shaft, Axle | 65501-65725 | |
| 9 | 423-22-22850 | Bearing | 65501- | |
| 10 | 423-22-22461 | Seal | 65501- | |
| 11 | 423-22-32543 | Gear, Ring | 65501- | |
| 12 | 419-22-12581 | Pin, Dowel | 65501- | |
| 13 | 01011-62210 | Bolt | 65501- | |
| 14 | 421-23-32470 | Shim, T=0.05mm | 65807- | |
| 14 | 421-23-32470 | Shim, T=0.05mm | 65501-65806 | |
| 14 | 421-23-32480 | Shim, T=0.2mm | 65501- | |
| 14 | 421-23-32490 | Shim, T=0.5mm | 65807- | |
| 14 | 421-23-32490 | Shim, T=0.5mm | 65501-65806 | |
| 15 | 423-22-32421 | Shaft | 65501- | |
| 16 | 424-23-33910 | Housing | 65501- | |
| 17 | 421-33-31711 | Shaft | 65501- | |
| 18 | 421-33-31730 | Cap | 65501- | |
| 19 | 421-33-31721 | Guide | 65501- | |
| 20 | 01583-11610 | Nut | 65501- | |
| 21 | 07000-11005 | O-ring | 65501- | |
| 22 | 07000-12018 | O-ring | 65501- | |
| 23 | 07030-01030 | Breather | 65501- | |
| 24 | 6141-55-5630 | Nipple | 65501- |
