| Item | Part No. | Part Name | Qty | Serial No. |
| (421-23-30071) | AXLE ASS'Y,REAR (LIMITED SLIP DIFF.) | 66001-85030 | ||

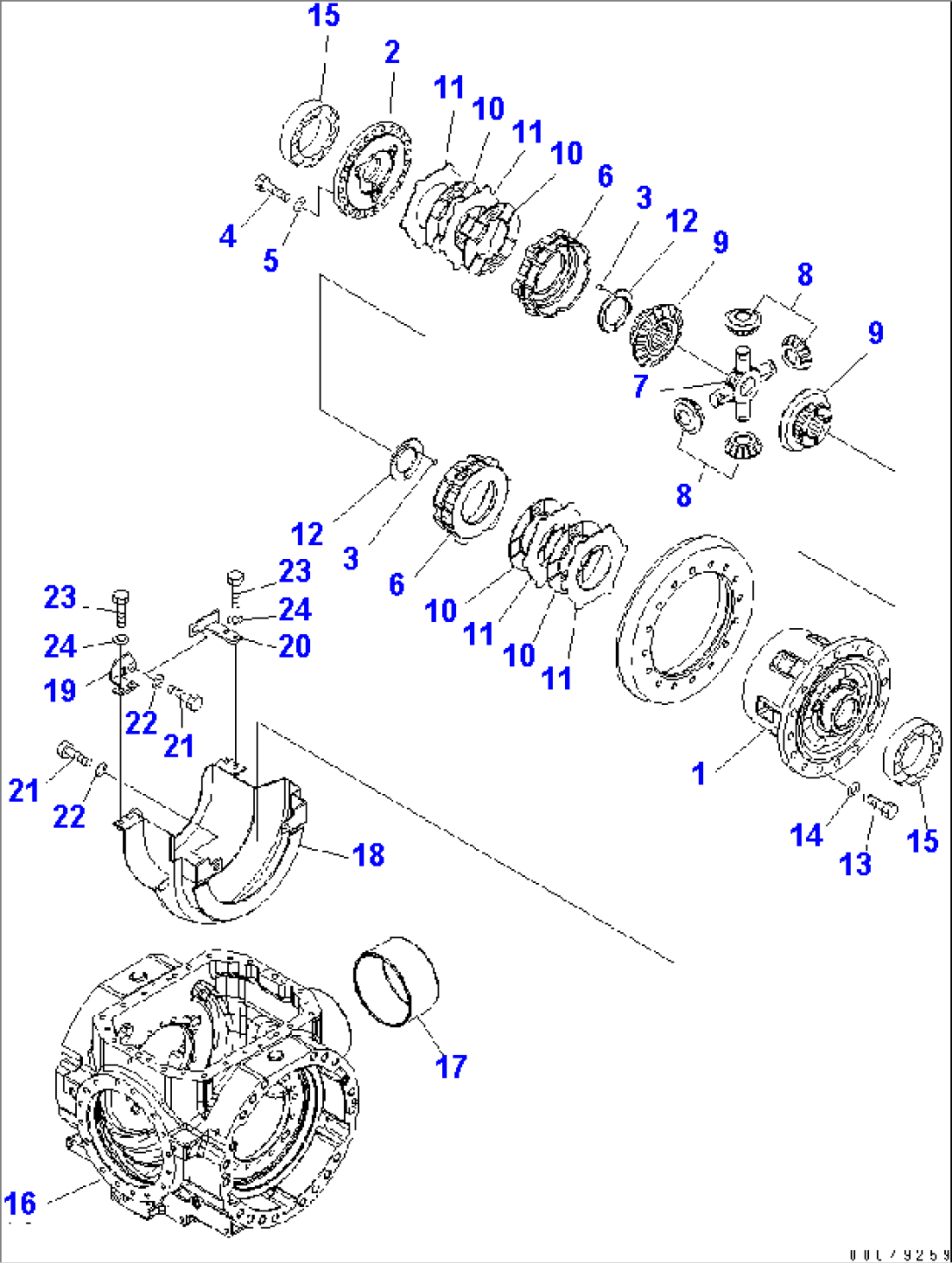

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-56A0. | ||||
| 424-22-37102 | DIFFERENTIAL ASS'Y | 66001-85030 | ||
| 1 | 424-22-37110 | CASE | 66001-85030 | |
| 2 | 424-22-37120 | COVER | 66001-85030 | |
| 3 | 175-21-12180 | PIN | 66001-85030 | |
| 4 | 01010-31240 | BOLT | 66001-85030 | |
| 5 | 01643-31232 | WASHER | 66001-85030 | |
| 6 | 424-22-27211 | RING,PRESSURE | 66001-85030 | |
| 7 | 424-22-27220 | SHAFT | 66001-85030 | |
| 8 | 424-22-37310 | PINION | 66002-85030 | |
| 8 | \0\424-22-27310 | PINION | 66001-66001 | |
| 9 | 424-22-27321 | GEAR | 66001-85030 | |
| 10 | 424-22-27411 | DISC | 66001-85030 | |
| 11 | 424-22-27450 | PLATE, 3.0MM | 66001-85030 | |
| 11 | 424-22-27460 | PLATE, 3.1MM | 66001-85030 | |
| 12 | 56B-22-17210 | WASHER, 4.0MM | 66001-85030 | |
| 12 | 56B-22-17230 | WASHER, 4.1MM | 66001-85030 | |
| 13 | 01010-61645 | BOLT | 66001-85030 | |
| 14 | 01643-31645 | WASHER | 66001-85030 | |
| 15 | 421-22-11860 | BEARING | 66001-85030 | |
| 16 | 421-23-33310 | HOUSING | 66001-85030 | |
| 17 | 421-23-33170 | SLEEVE | 66001-85030 | |
| 18 | 421-23-31950 | COVER,GEAR | 66001-85030 | |
| 19 | 421-23-31960 | BRACKET | 66001-85030 | |
| 20 | 421-23-31970 | BRACKET | 66001-85030 | |
| 21 | 01010-61430 | BOLT | 66001-85030 | |
| 22 | 01643-31445 | WASHER | 66001-85030 | |
| 23 | 01010-61025 | BOLT | 66001-85030 | |
| 24 | 01643-31032 | WASHER | 66001-85030 |
