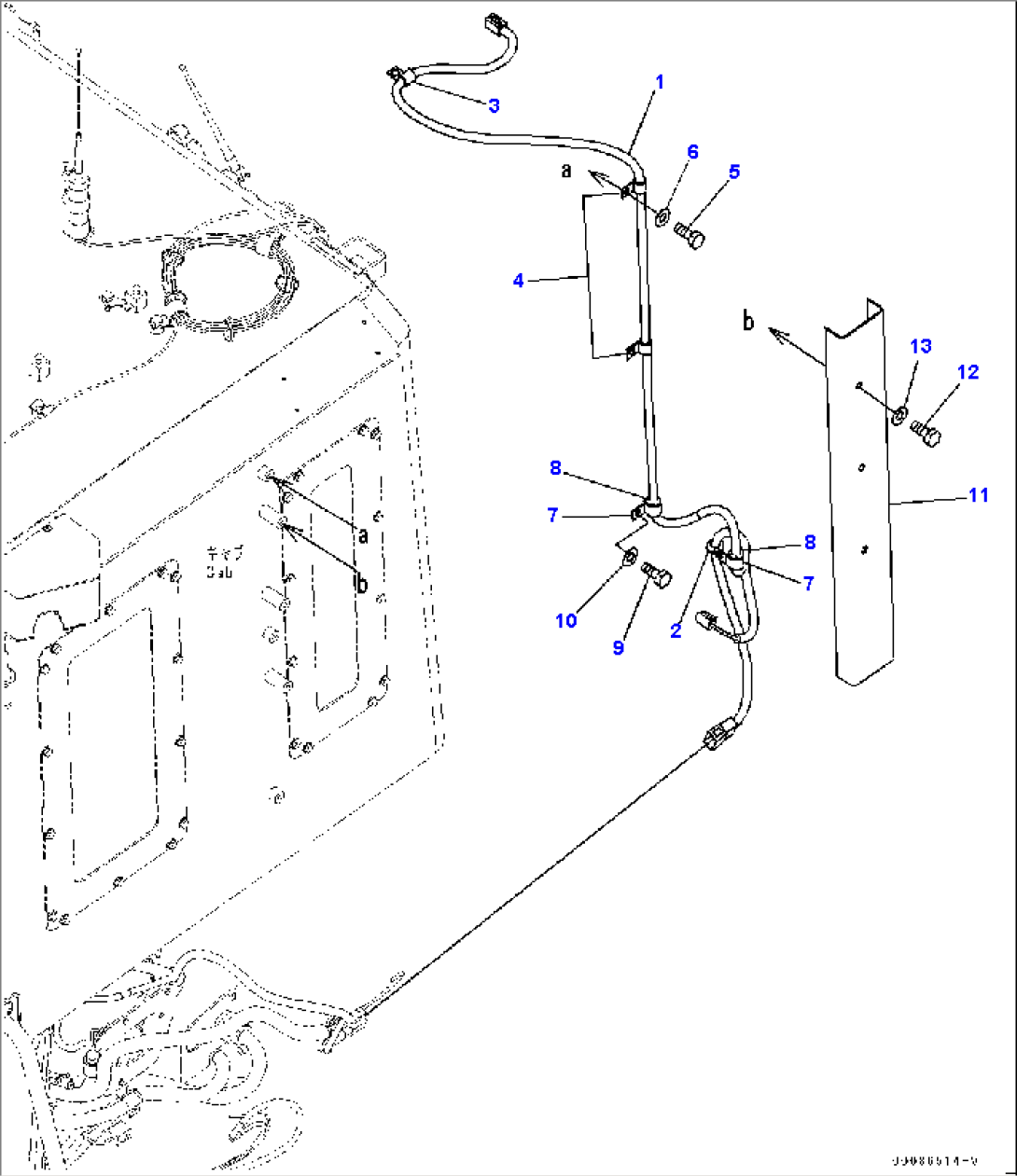

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-969-4163 | Wiring Harness | 1006- | |
| 2 | 08037-01610 | Grommet | 1006- | |
| 3 | 04434-51412 | Clip | 1006- | |
| 4 | 04434-51410 | Clip | 1006- | |
| 5 | 01010-81020 | Bolt | 1006- | |
| 6 | 01643-31032 | Washer | 1006- | |
| 7 | 04434-51910 | Clip | 1006- | |
| 8 | 07095-20213 | Cushion | 1006- | |
| 9 | 01010-81020 | Bolt | 1006- | |
| 10 | 01643-31032 | Washer | 1006- | |
| 11 | 154-969-4361 | Cover | 1006- | |
| 12 | 01010-81020 | Bolt | 1006- | |
| 13 | 01643-31032 | Washer | 1006- |
