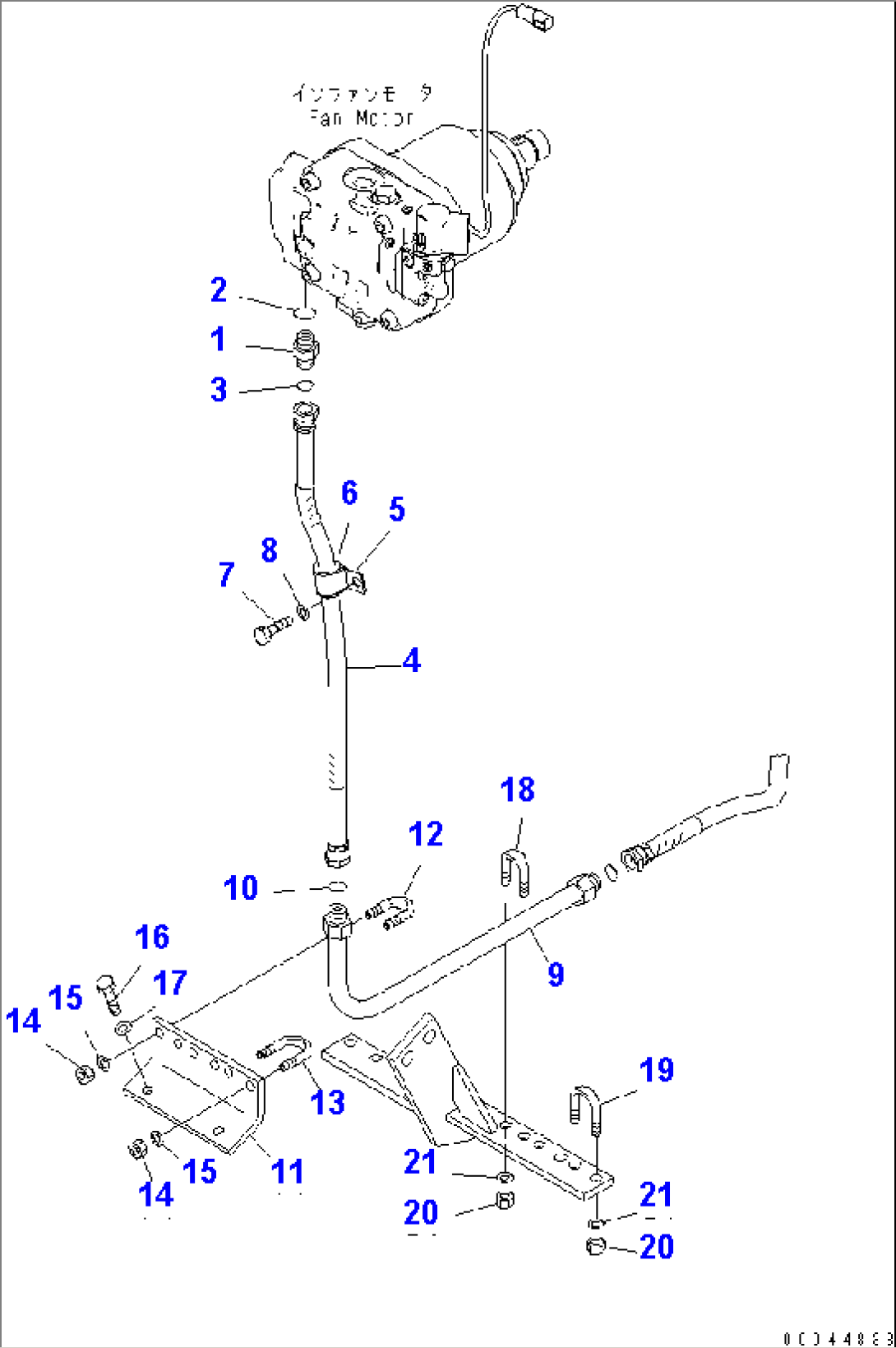

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-00422 | UNION | 30001- | |
| 2 | 07002-12034 | O-RING | 30001- | |
| 3 | 02896-11012 | O-RING | 30001- | |
| 4 | 02762-00406 | HOSE | 30001- | |
| 5 | 04434-52712 | CLIP | 30001- | |
| 6 | 07095-20418 | CUSHION | 30001- | |
| 7 | 01010-81220 | BOLT | 30001- | |
| 8 | 01643-31232 | WASHER | 30001- | |
| 9 | 17M-03-46211 | TUBE | 30001- | |
| 10 | 02896-11012 | O-RING | 30001- | |
| 11 | 17M-03-56221 | BRACKET | 30001- | |
| 12 | 07283-32236 | CLIP | 30001- | |
| 13 | 07283-32738 | CLIP | 30001- | |
| 14 | 01597-01009 | NUT | 30001- | |
| 15 | 01643-31032 | WASHER | 30001- | |
| 16 | 01010-81025 | BOLT | 30001- | |
| 17 | 01643-31032 | WASHER | 30001- | |
| 18 | 07283-32236 | CLIP | 30001- | |
| 19 | 07283-32738 | CLIP | 30001- | |
| 20 | 01597-01009 | NUT | 30001- | |
| 21 | 01643-31032 | WASHER | 30001- |
