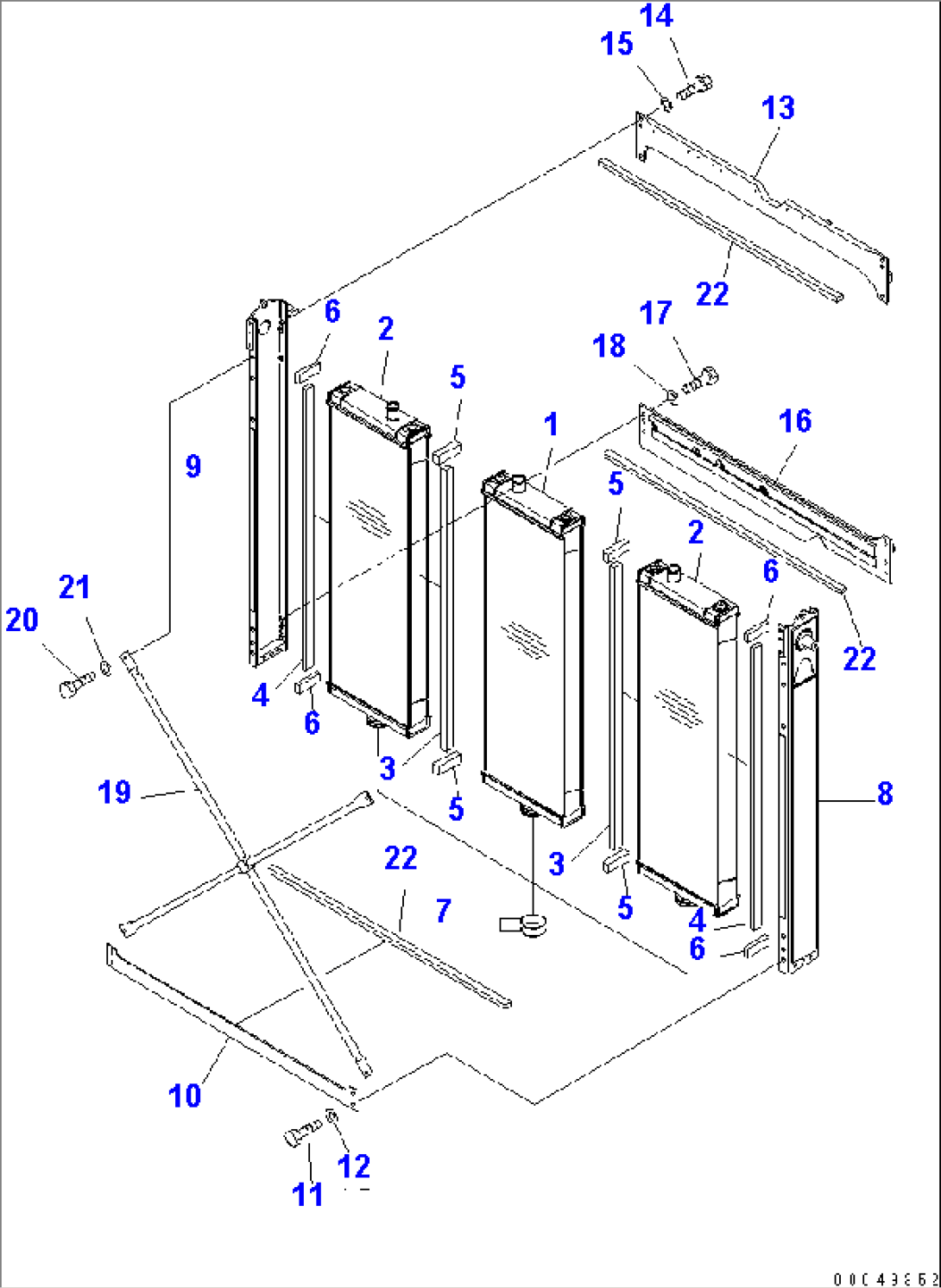

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-63112 | RADIATOR | 50001- | |
| 195-03-64960 | RADIATOR ASS'Y | 50001- | ||
| 2 | 195-03-63112 | RADIATOR | 50001- | |
| 3 | 195-03-65110 | SHEET | 50001- | |
| 4 | 195-03-65120 | SHEET | 50001- | |
| 5 | 195-03-65130 | SHEET | 50001- | |
| 6 | 195-03-65140 | SHEET | 50001- | |
| 7 | 17A-03-41220 | O-RING | 50001- | |
| 8 | 195-03-63142 | BRACKET,L.H. | 50001- | |
| 9 | 195-03-63152 | BRACKET,R.H. | 50001- | |
| 10 | 195-03-63181 | BRACKET | 50001- | |
| 11 | 01010-81225 | BOLT | 50001- | |
| 12 | 01643-31232 | WASHER | 50001- | |
| 13 | 195-03-63172 | BRACKET | 50001- | |
| 14 | 01010-81235 | BOLT | 50001- | |
| 15 | 01643-31232 | WASHER | 50001- | |
| 16 | 195-03-63163 | BRACKET | 50001- | |
| 17 | 01010-81235 | BOLT | 50001- | |
| 18 | 01643-31232 | WASHER | 50001- | |
| 19 | 195-03-63261 | PIPE | 50001- | |
| 20 | 01010-81230 | BOLT | 50001- | |
| 21 | 01643-31232 | WASHER | 50001- | |
| 22 | 195-03-65150 | SHEET | 50001- |
