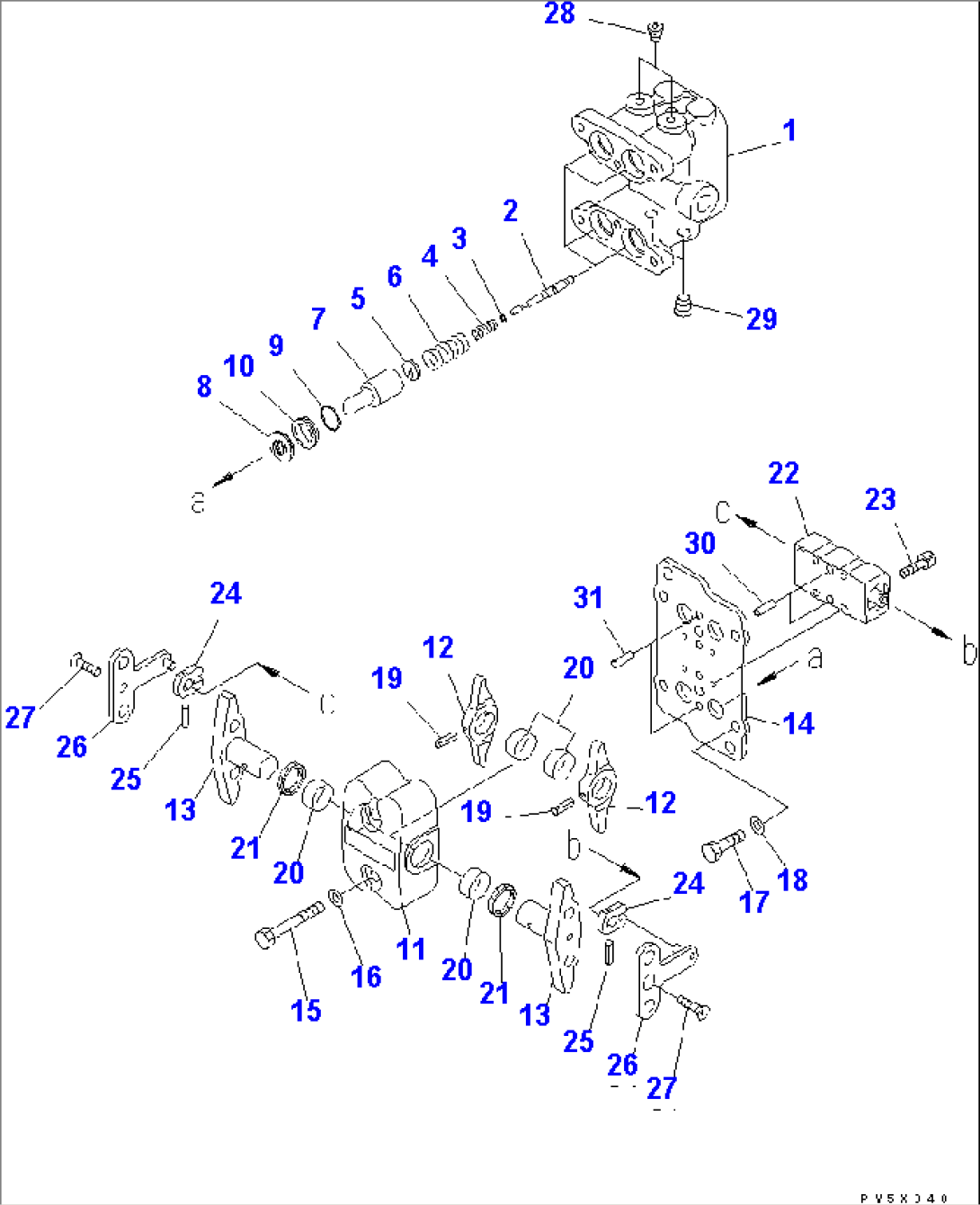

| Item | Part No. | Part Name | Qty | Serial No. |
| 702-16-01682 | PILOT VALVE | 31004- | ||
| 702-16-01681 | PILOT VALVE | 31001-31003 | ||
| 1 | \6\ | BODY,VALVE | 31001- | |
| 2 | \6\ | VALVE | 31001- | |
| 3 | 702-16-51140 | SHIM¤ 0.30MM | 31001- | |
| 4 | 702-16-55870 | SPRING | 31001- | |
| 5 | 702-16-53140 | RETAINER | 31001- | |
| 6 | 702-16-54420 | SPRING | 31001- | |
| 7 | 702-16-53170 | PISTON | 31001- | |
| 8 | 702-16-51270 | SEAL | 31001- | |
| 9 | 07000-12020 | O-RING | 31001- | |
| 10 | 702-16-54170 | COLLAR | 31001- | |
| 11 | 702-16-54311 | CASE | 31001- | |
| 12 | \6\ | LEVER | 31001- | |
| 13 | \6\ | SHAFT | 31001- | |
| 14 | \6\ | PLATE | 31001- | |
| 15 | 01010-80855 | BOLT | 31001- | |
| 16 | 01643-30823 | WASHER | 31001- | |
| 17 | 01010-80816 | BOLT | 31001- | |
| 18 | 702-16-54331 | WASHER¤ 1.60MM | 31001- | |
| 702-16-54341 | WASHER¤ 1.30MM | 31001- | ||
| 702-16-54351 | WASHER¤ 1.00MM | 31001- | ||
| 19 | 04025-00432 | PIN,SPRING | 31001- | |
| 20 | 702-16-54430 | BUSHING | 31001- | |
| 21 | 702-16-54280 | SEAL,DUST | 31001- | |
| 22 | 702-16-54506 | DAMPER ASS'Y | 31004- | |
| 702-16-54505 | DAMPER ASS'Y | 31001-31003 | ||
| 23 | 01252-60525 | BOLT | 31001- | |
| 24 | 702-16-54511 | PLATE | 31001- | |
| 25 | 04025-00420 | PIN,SPRING | 31001- | |
| 26 | \6\ | LEVER | 31001- | |
| 27 | 01224-40612 | SCREW | 31001- | |
| 28 | 706-86-51180 | PLUG | 31001- | |
| 29 | 708-18-12570 | PLUG | 31001- | |
| 30 | 04022-04016 | PIN,DOWEL | 31001- | |
| 31 | 04022-04010 | PIN,DOWEL | 31001- |
