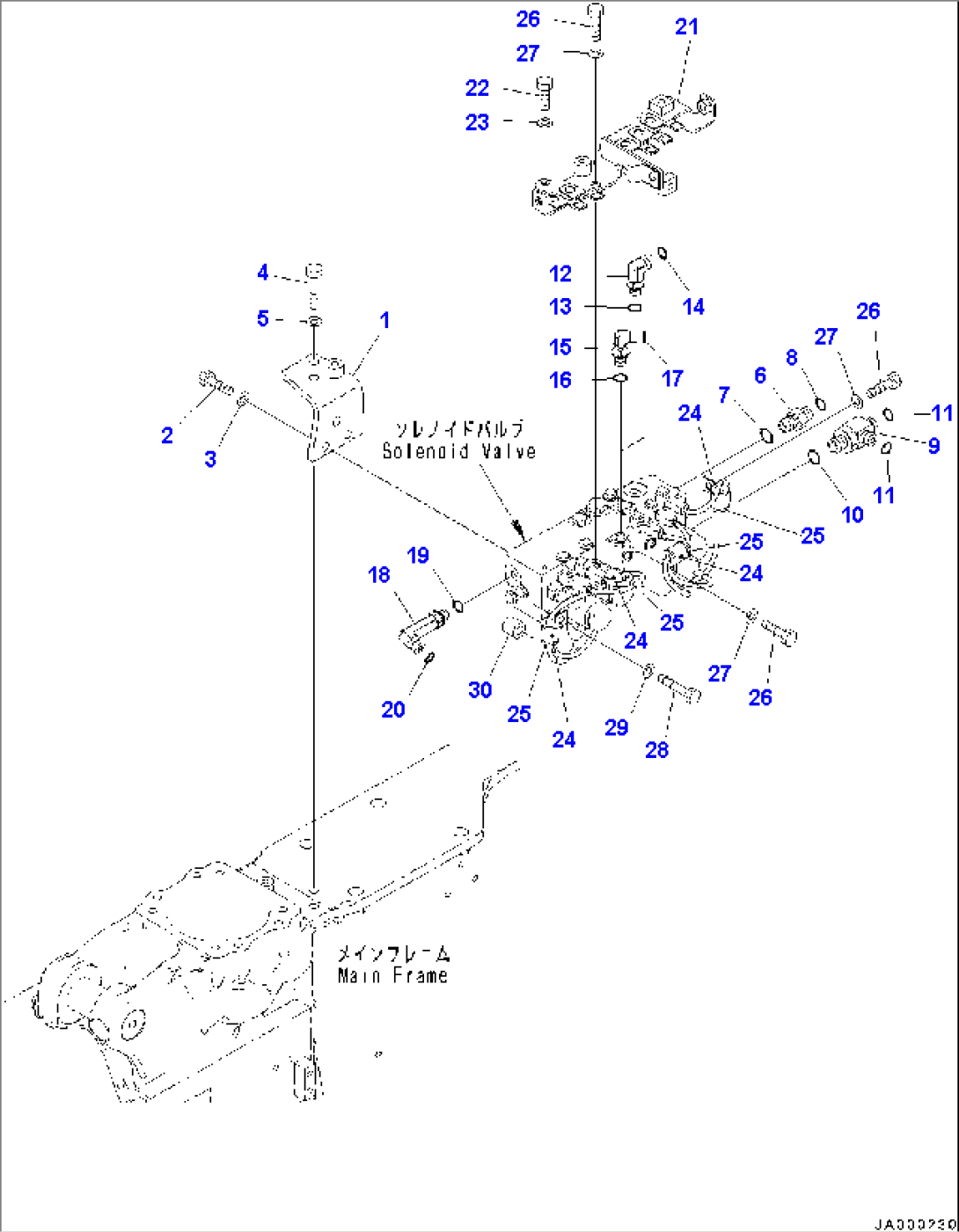

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-31152 | Bracket | 3001- | |
| 2 | 01010-81025 | Bolt | 3001- | |
| 3 | 01643-31032 | Washer | 3001- | |
| 4 | 01010-81055 | Bolt | 3001- | |
| 5 | 01643-31032 | Washer | 3001- | |
| 6 | 20U-62-42660 | Nipple | 3001- | |
| 7 | 07002-11823 | O-ring | 3001- | |
| 8 | 02896-11009 | O-ring | 3001- | |
| 9 | 19M-61-35140 | Tee | 3001- | |
| 10 | 07002-12034 | O-ring | 3001- | |
| 11 | 02896-11009 | O-ring | 3001- | |
| 12 | 02782-10311 | Elbow | 3001- | |
| 13 | 07002-12034 | O-ring | 3001- | |
| 14 | 02896-11009 | O-ring | 3001- | |
| 15 | 21W-62-43960 | Elbow | 3001- | |
| 16 | 07002-11423 | O-ring | 3001- | |
| 17 | 02896-11008 | O-ring | 3001- | |
| 18 | 02782-10312 | Elbow | 3001- | |
| 19 | 07002-11423 | O-ring | 3001- | |
| 20 | 02896-11009 | O-ring | 3001- | |
| 21 | 11Y-06-31351 | Bracket | 3001- | |
| 22 | 01010-80816 | Bolt | 3001- | |
| 23 | 01643-30823 | Washer | 3001- | |
| 24 | 04434-51610 | Clip | 3001- | |
| 25 | 07095-20211 | Cushion | 3001- | |
| 26 | 01010-81020 | Bolt | 3001- | |
| 27 | 01643-31032 | Washer | 3001- | |
| 28 | 01010-81040 | Bolt | 3001- | |
| 29 | 01643-31032 | Washer | 3001- | |
| 30 | 175-79-83760 | Spacer | 3001- |
