| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-01091) | PILOT VALVE | 10001- | |
| 2 | 20Y-62-16630 | NIPPLE | 10001- | |
| 3 | 07002-11423 | O-RING | 10001- | |
| 4 | 01010-80820 | BOLT | 10001- | |
| 5 | 01643-30823 | WASHER | 10001- | |
| 6 | 08036-10810 | CLIP | 10001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc20r 8 s/n 10001 up
- Operator's compartment and control system
- P.p.c. line (1/3) (usa spec.)
Поиск по каталогу

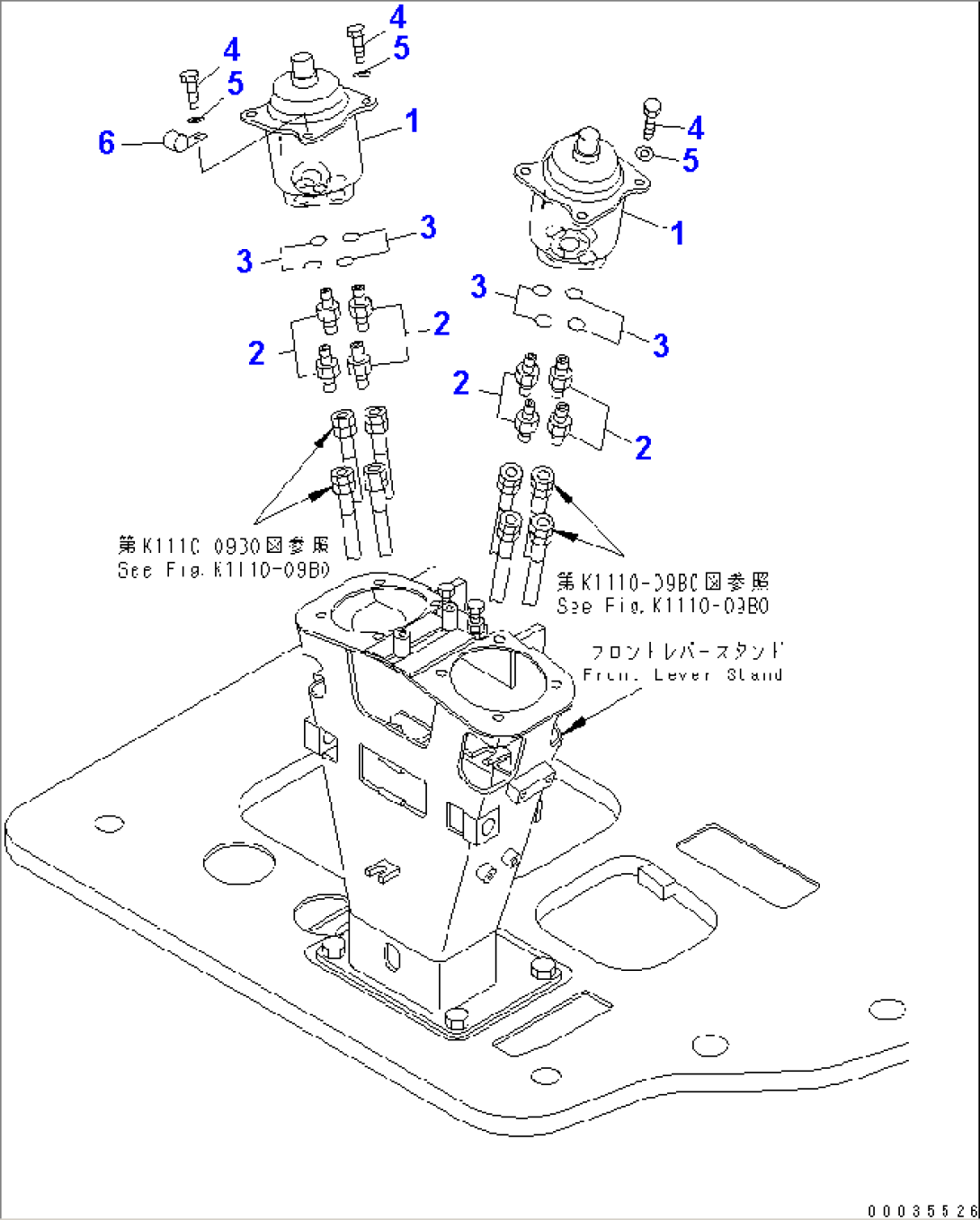

P.P.C. LINE (1/3) (USA SPEC.)
