| Item | Part No. | Part Name | Qty | Serial No. |
| (17M-22-40100) | POWER TRAIN ASS'Y | 30001- | ||

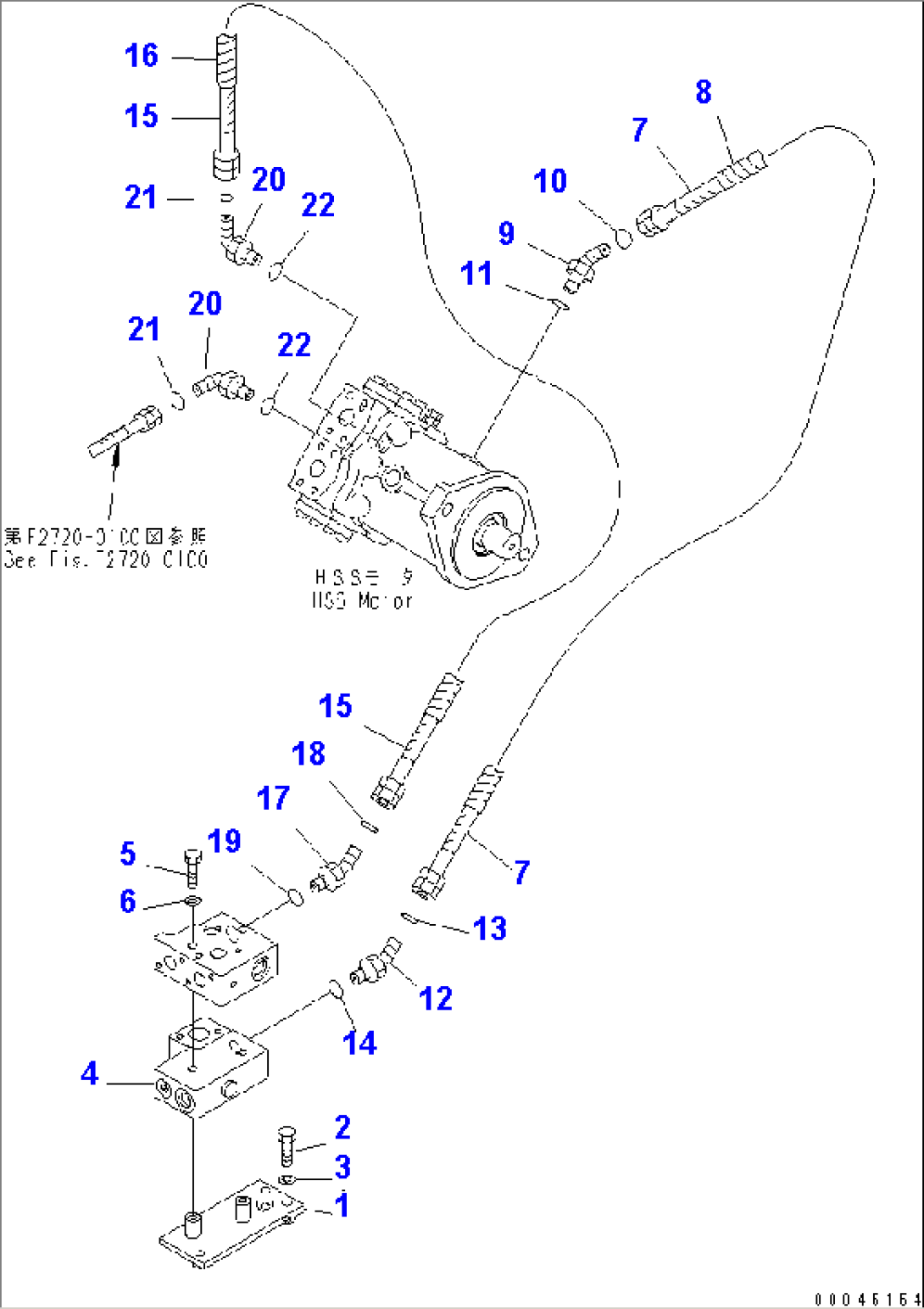

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51C0 TO F2300-63C0 | ||||
| 1 | 17M-49-42190 | BRACKET | 30001- | |
| 2 | 01010-81255 | BOLT | 30001- | |
| 3 | 01643-31232 | WASHER | 30001- | |
| 4 | 17M-49-42180 | BLOCK | 30001- | |
| 5 | 01011-81240 | BOLT | 30001- | |
| 6 | 01643-31232 | WASHER | 30001- | |
| 7 | 17M-49-42171 | HOSE | 30001- | |
| 8 | 08210-01805 | SPIRAL TUBE | 30001- | |
| 9 | 02782-10628 | ELBOW | 30001- | |
| 10 | 02896-61018 | O-RING | 30001- | |
| 11 | 07002-62434 | O-RING | 30001- | |
| 12 | 02783-10628 | ELBOW | 30001- | |
| 13 | 02896-61018 | O-RING | 30001- | |
| 14 | 07002-62434 | O-RING | 30001- | |
| 15 | 17M-49-42151 | HOSE | 30001- | |
| 16 | 08210-01808 | SPIRAL TUBE | 30001- | |
| 17 | 02783-10628 | ELBOW | 30001- | |
| 18 | 02896-61018 | O-RING | 30001- | |
| 19 | 07002-62434 | O-RING | 30001- | |
| 20 | 02782-10628 | ELBOW | 30001- | |
| 21 | 02896-61018 | O-RING | 30001- | |
| 22 | 07002-62434 | O-RING | 30001- |
