| Item | Part No. | Part Name | Qty | Serial No. |

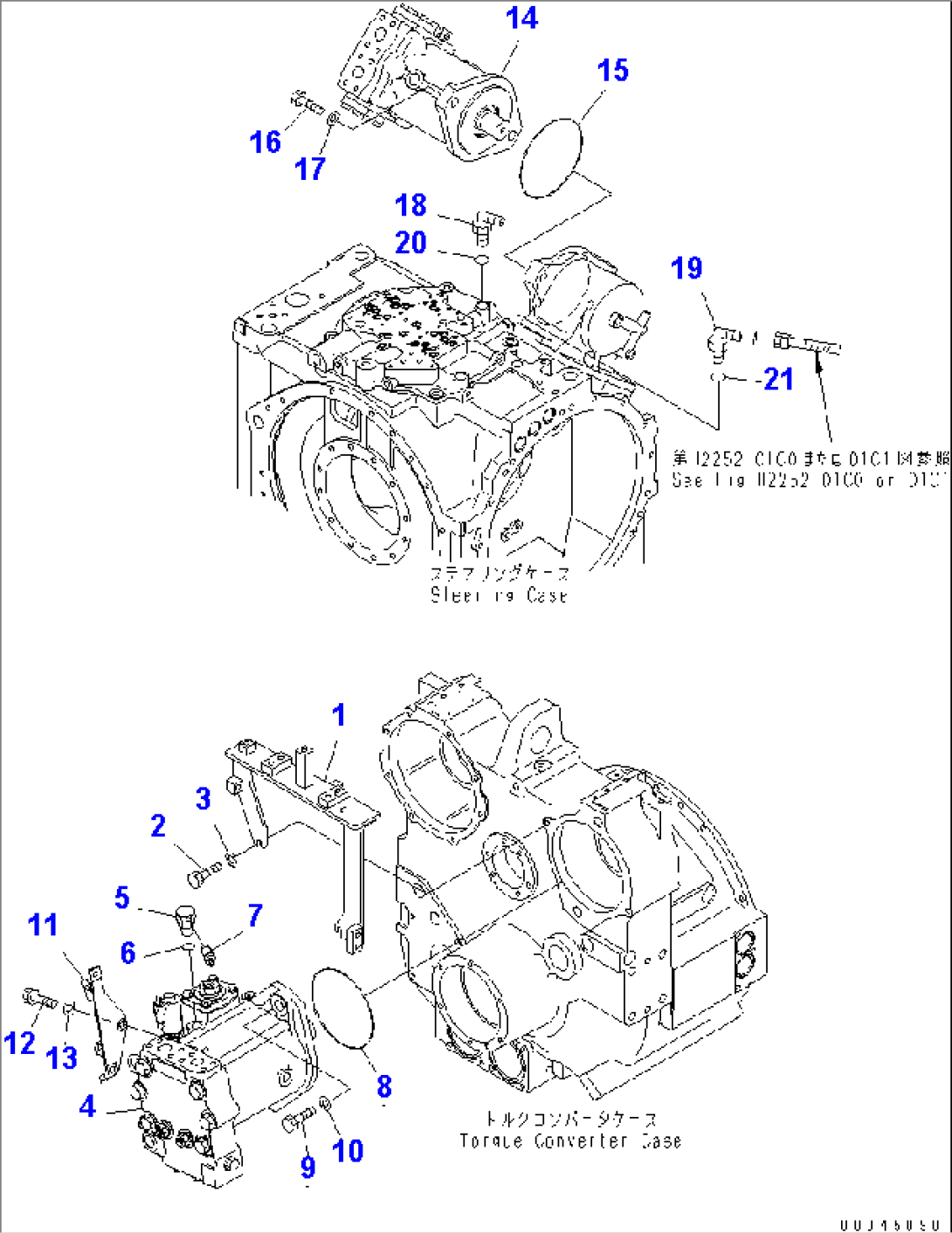

| (17M-22-40100) | POWER TRAIN ASS'Y | 30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51C0 TO F2300-63C0 | ||||
| 1 | 17M-49-43261 | BRACKET | 30001- | |
| 2 | 01010-81245 | BOLT | 30001- | |
| 3 | 01643-31232 | WASHER | 30001- | |
| 4 | (708-1H-00021) | PUMP ASS'Y | 30001- | |
| 5 | 17A-49-17871 | PLUG | 30001- | |
| 6 | 07002-62434 | O-RING | 30001- | |
| 7 | 20B-27-11210 | BLEEDER | 30001- | |
| 8 | 07000-75165 | O-RING | 30001- | |
| 9 | 01010-62480 | BOLT | 30001- | |
| 10 | 01643-32460 | WASHER | 30001- | |
| 11 | 17M-49-41540 | BRACKET | 30001- | |
| 12 | 01010-81230 | BOLT | 30001- | |
| 13 | 01643-31232 | WASHER | 30001- | |
| 14 | (708-7H-00040) | MOTOR ASS'Y | 30001- | |
| 15 | 07000-75165 | O-RING | 30001- | |
| 16 | 01010-62065 | BOLT | 30001- | |
| 17 | 01643-32060 | WASHER | 30001- | |
| 18 | 07235-10315 | ELBOW | 30001- | |
| 19 | 07235-10316 | ELBOW | 30001- | |
| 20 | 07002-62034 | O-RING | 30001- | |
| 21 | 07002-62034 | O-RING | 30001- |
