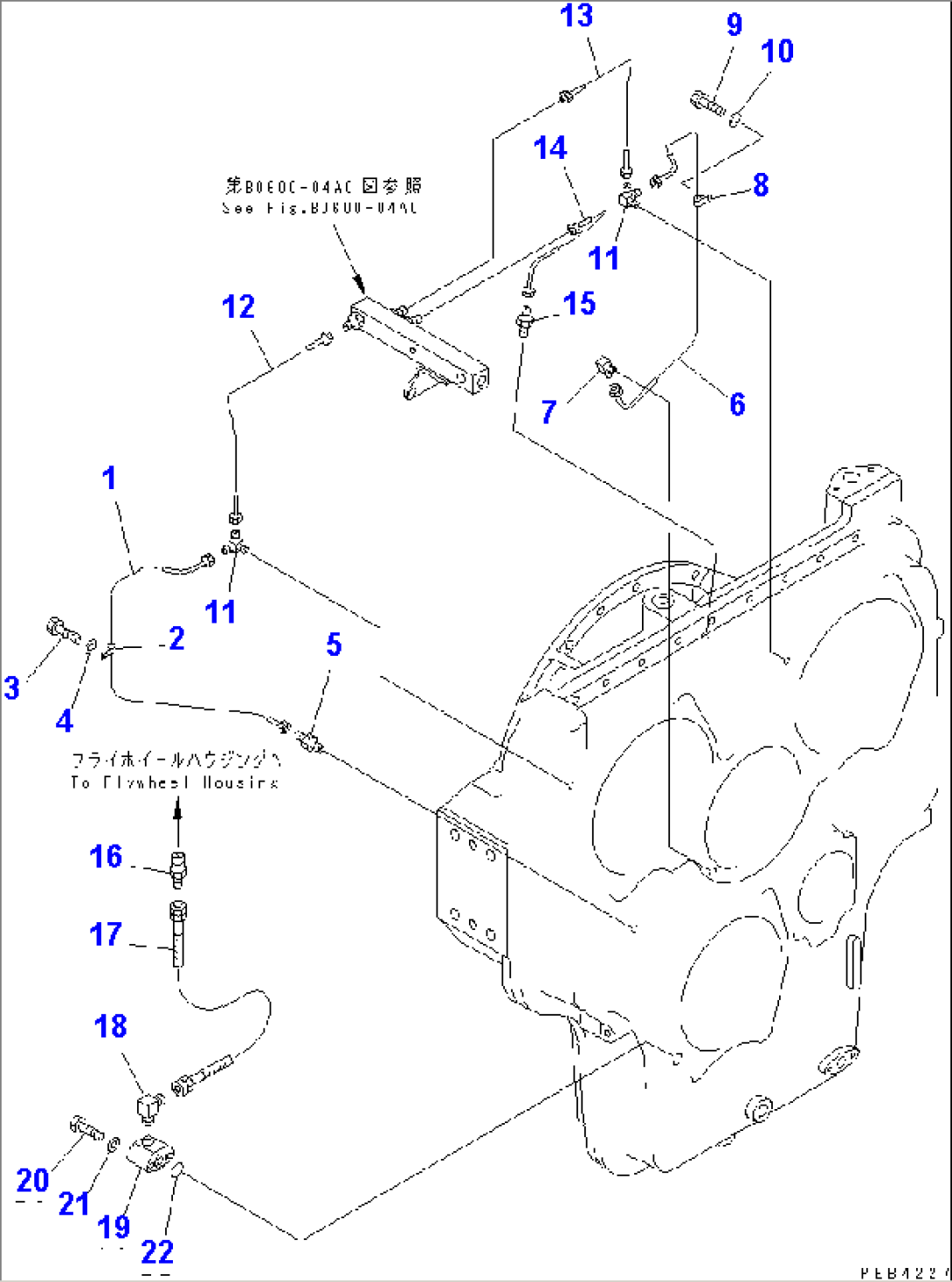

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21N-38-12180 | TUBE | 30001-30174 | |
| 2 | 21T-38-12270 | CLIP | 30001-@ | |
| 3 | 01010-81020 | BOLT | 30001-@ | |
| 4 | 01643-31032 | WASHER | 30001-@ | |
| 5 | 07213-50710 | CONNECTOR | 30001-30174 | |
| 6 | 21N-38-12190 | TUBE | 30001-30174 | |
| 7 | 176-43-41350 | ELBOW | 30001-@ | |
| 8 | 21T-38-12270 | CLIP | 30001-30174 | |
| 9 | 01010-81020 | BOLT | 30001-30174 | |
| 10 | 01643-31032 | WASHER | 30001-30174 | |
| 11 | 21N-38-12260 | TEE | 30001-30174 | |
| 12 | 21N-38-12210 | TUBE | 30001-30174 | |
| 13 | 21N-38-12220 | TUBE | 30001-30174 | |
| 14 | 21N-38-12231 | TUBE | 30001-30174 | |
| 15 | 07213-50710 | CONNECTOR | 30001-@ | |
| 16 | 15R-911-3190 | NIPPLE | 30001-@ | |
| 17 | 07102-20405 | HOSE | 30001-@ | |
| 18 | 195-04-12280 | ELBOW | 30001-@ | |
| 19 | 21N-38-12351 | ELBOW | 30001-@ | |
| 20 | 01010-81065 | BOLT | 30001-@ | |
| 21 | 01643-31032 | WASHER | 30001-@ | |
| 22 | 07000-33022 | O-RING | 30001-30174 |
