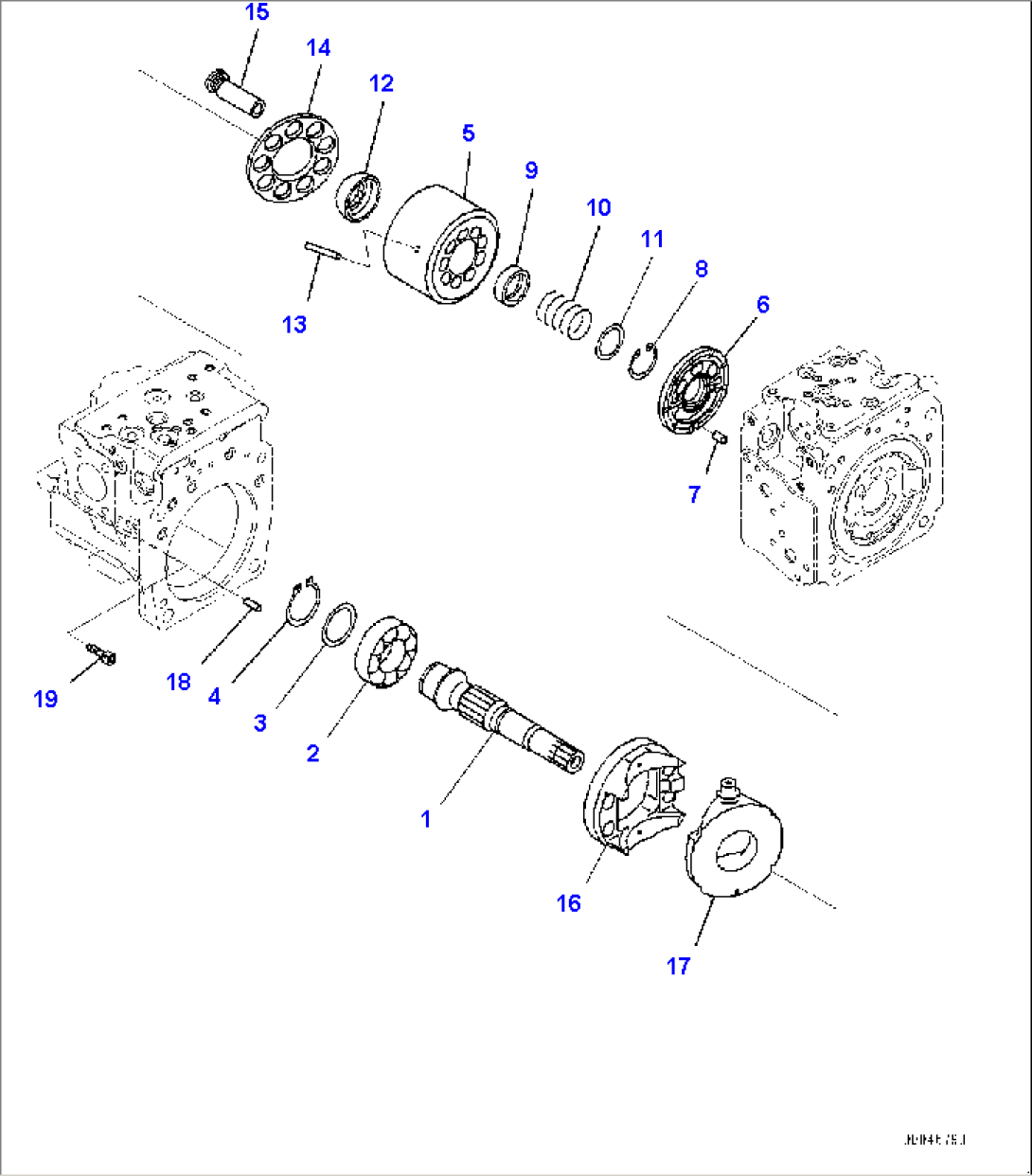

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2L-00790 | Pump Assembly, Piston | 30190- | ||
| 708-2L-01600 | Pump Subassembly | 30190- | ||
| 1 | (708-2L-32170) | Shaft, Rear | 30190- | |
| 2 | (708-2L-32150) | Bearing | 30190- | |
| 3 | (708-2E-05040) | Washer Kit | 30190- | |
| 3 | Washer, T=3.1mm | 30190- | ||
| 3 | Washer, T=3.0mm | 30190- | ||
| 3 | Washer, T=2.9mm | 30190- | ||
| 3 | Washer, T=2.8mm | 30190- | ||
| 4 | (708-25-12790) | Ring, Snap | 30190- | |
| (708-2L-06480) | Block Assembly, Rear | 30190- | ||
| 5 | Block, Cylinder | 30190- | ||
| 6 | Plate, Valve | 30190- | ||
| 7 | (720-68-19610) | Pin | 30190- | |
| 8 | (04065-04818) | Ring, Snap | 30190- | |
| 9 | (708-2L-23131) | Seat | 30190- | |
| 10 | (708-2L-33160) | Spring | 30190- | |
| 11 | (708-7L-13140) | Seat | 30190- | |
| 12 | (708-2L-23351) | Guide, Retainer | 30190- | |
| 13 | (708-2L-23360) | Pin | 30190- | |
| 14 | (708-2L-33350) | Retainer, Shoe | 30190- | |
| 15 | (708-2L-33430) | Piston Subassembly | 30190- | |
| (708-2L-06630) | Cradle Assembly | 30190- | ||
| 16 | Cradle | 30190- | ||
| 17 | Cam, Rocker, Rocker | 30190- | ||
| 18 | (04020-01228) | Pin, Dowel | 30190- | |
| 19 | (01252-61230) | Bolt, Hexagon Socket Head | 30190- |
