| Item | Part No. | Part Name | Qty | Serial No. |

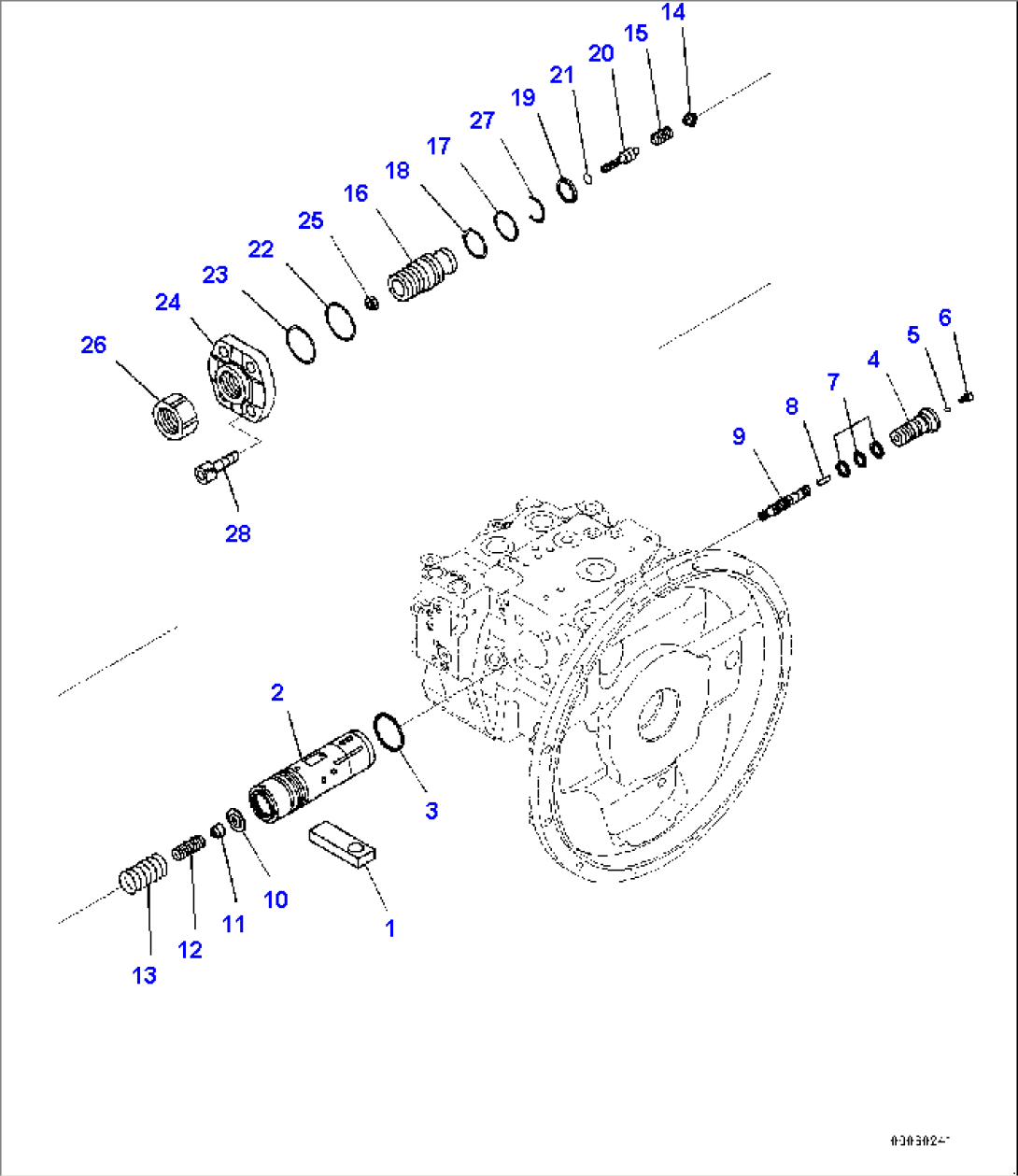

| 708-3D-00030 | Pump Assembly | 24510-27395 | ||
| (708-3D-01030) | Pump Subassembly | 24510-27395 | ||
| 1 | (708-2L-34120) | Slider | 24510-27395 | |
| 1 | (708-3D-04610) | Valve Assembly, PC | 24510-27395 | |
| 2 | Piston Assembly, Servo, Servo | 24510-27395 | ||
| 3 | Seal | 24510-27395 | ||
| 4 | Plug | 24510-27395 | ||
| 5 | (708-2L-35760) | Ball | 24510-27395 | |
| 6 | (708-2L-35770) | Plug | 24510-27395 | |
| 7 | Seal | 24510-27395 | ||
| 8 | (708-3D-15320) | Pin | 24510-27395 | |
| 9 | (708-2L-35860) | Spool | 24510-27395 | |
| 10 | (708-2L-35630) | Retainer | 24510-27395 | |
| 11 | (708-2L-35641) | Seat | 24510-27395 | |
| 12 | (708-3D-15410) | Spring | 24510-27395 | |
| 13 | (708-2L-35730) | Spring | 24510-27395 | |
| 14 | (708-2L-35650) | Seat | 24510-27395 | |
| 15 | (708-3D-15420) | Spring | 24510-27395 | |
| 16 | Screw | 24510-27395 | ||
| 17 | (07000-B3034) | O-ring | 24510-27395 | |
| 18 | (708-2L-35210) | Ring, Back-up | 24510-27395 | |
| 19 | Seal | 24510-27395 | ||
| 20 | (708-2L-35270) | Plug | 24510-27395 | |
| 21 | (07000-B2011) | O-ring | 24510-27395 | |
| 22 | (07000-B3045) | O-ring | 24510-27395 | |
| 23 | (708-2L-35750) | Ring, Back-up | 24510-27395 | |
| 24 | (708-2L-34230) | Cover | 24510-27395 | |
| 25 | (01580-10806) | Nut | 24510-27395 | |
| 26 | (708-2L-35290) | Nut | 24510-27395 | |
| 27 | (708-2L-35670) | Ring, Wire | 24510-27395 | |
| 28 | (01252-61440) | Bolt, Hexagon Socket Head | 24510-27395 |
