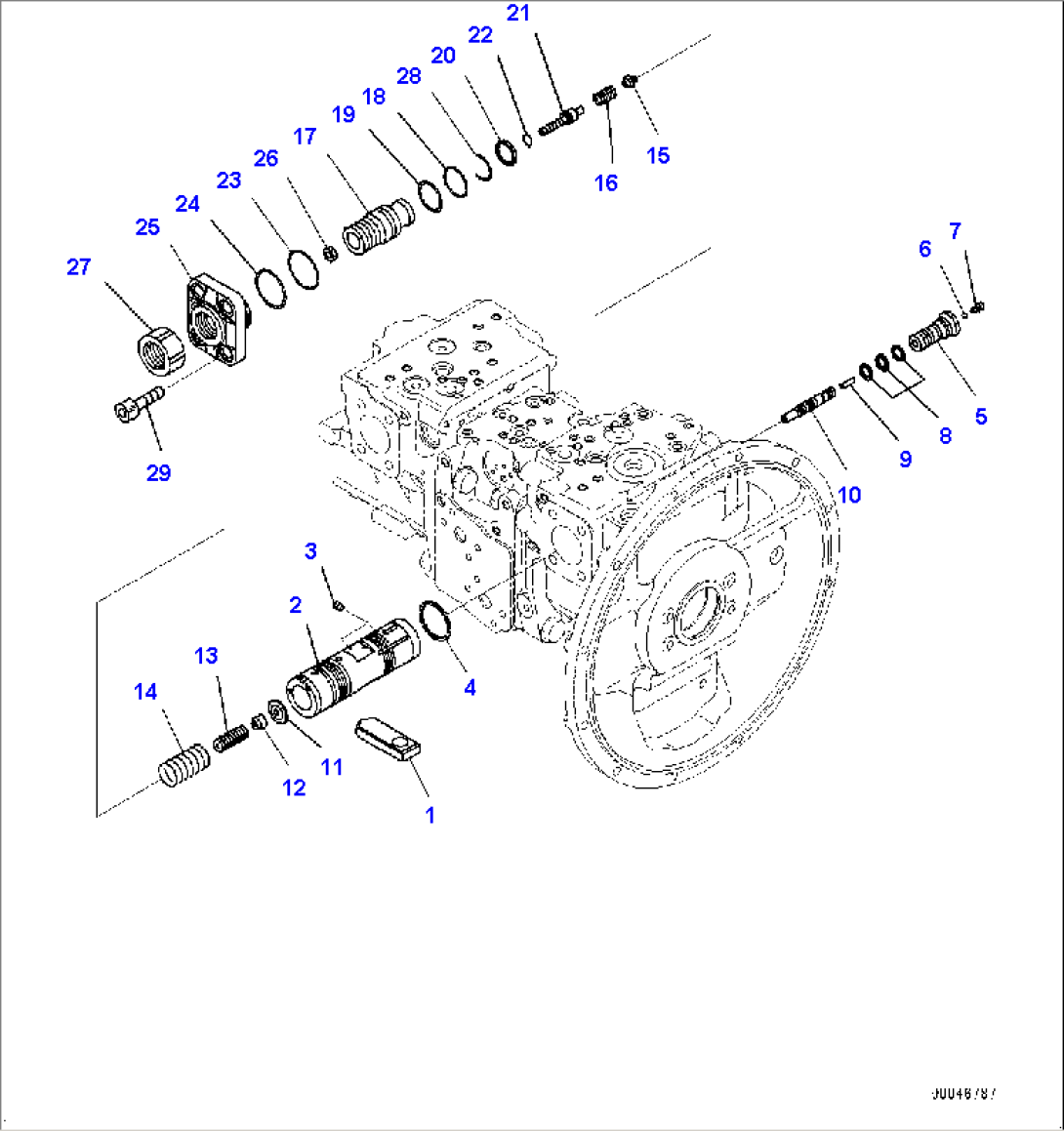

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2L-00600 | Pump Assembly | 30117-30189 | ||
| 708-2L-01600 | Pump Subassembly | 30117-30189 | ||
| 1 | (708-2L-34180) | Slider | 30117-30189 | |
| 1 | (708-2L-06680) | Valve Assembly | 30117-30189 | |
| 1 | (708-2L-06660) | Piston Assembly, Servo | 30117-30189 | |
| 2 | Piston, Servo | 30117-30189 | ||
| 3 | Plug | 30117-30189 | ||
| 4 | Seal | 30117-30189 | ||
| 5 | Plug | 30117-30189 | ||
| 6 | (708-2L-35760) | Ball | 30117-30189 | |
| 7 | (708-2L-35770) | Plug | 30117-30189 | |
| 8 | Seal | 30117-30189 | ||
| 9 | (708-2L-35280) | Pin | 30117-30189 | |
| 10 | (708-2L-35860) | Spool | 30117-30189 | |
| 11 | (708-2L-35630) | Retainer | 30117-30189 | |
| 12 | (708-2L-35641) | Seat | 30117-30189 | |
| 13 | (708-2L-35240) | Spring | 30117-30189 | |
| 14 | (708-2L-35730) | Spring | 30117-30189 | |
| 15 | (708-2L-35650) | Seat | 30117-30189 | |
| 16 | (708-2L-35250) | Spring | 30117-30189 | |
| 17 | Screw | 30117-30189 | ||
| 18 | (07000-B3034) | O-ring | 30117-30189 | |
| 19 | (708-2L-35210) | Ring, Back-up | 30117-30189 | |
| 20 | Seal | 30117-30189 | ||
| 21 | (708-2L-35270) | Plug | 30117-30189 | |
| 22 | (07000-B2011) | O-ring | 30117-30189 | |
| 23 | (07000-B3045) | O-ring | 30117-30189 | |
| 24 | (708-2L-35750) | Ring, Back-up | 30117-30189 | |
| 25 | (708-2L-34310) | Cover | 30117-30189 | |
| 26 | (01580-10806) | Nut | 30117-30189 | |
| 27 | (708-2L-35290) | Nut | 30117-30189 | |
| 28 | (708-2L-35670) | Ring, Wire | 30117-30189 | |
| 29 | (01252-61440) | Bolt, Hexagon Socket Head | 30117-30189 |
