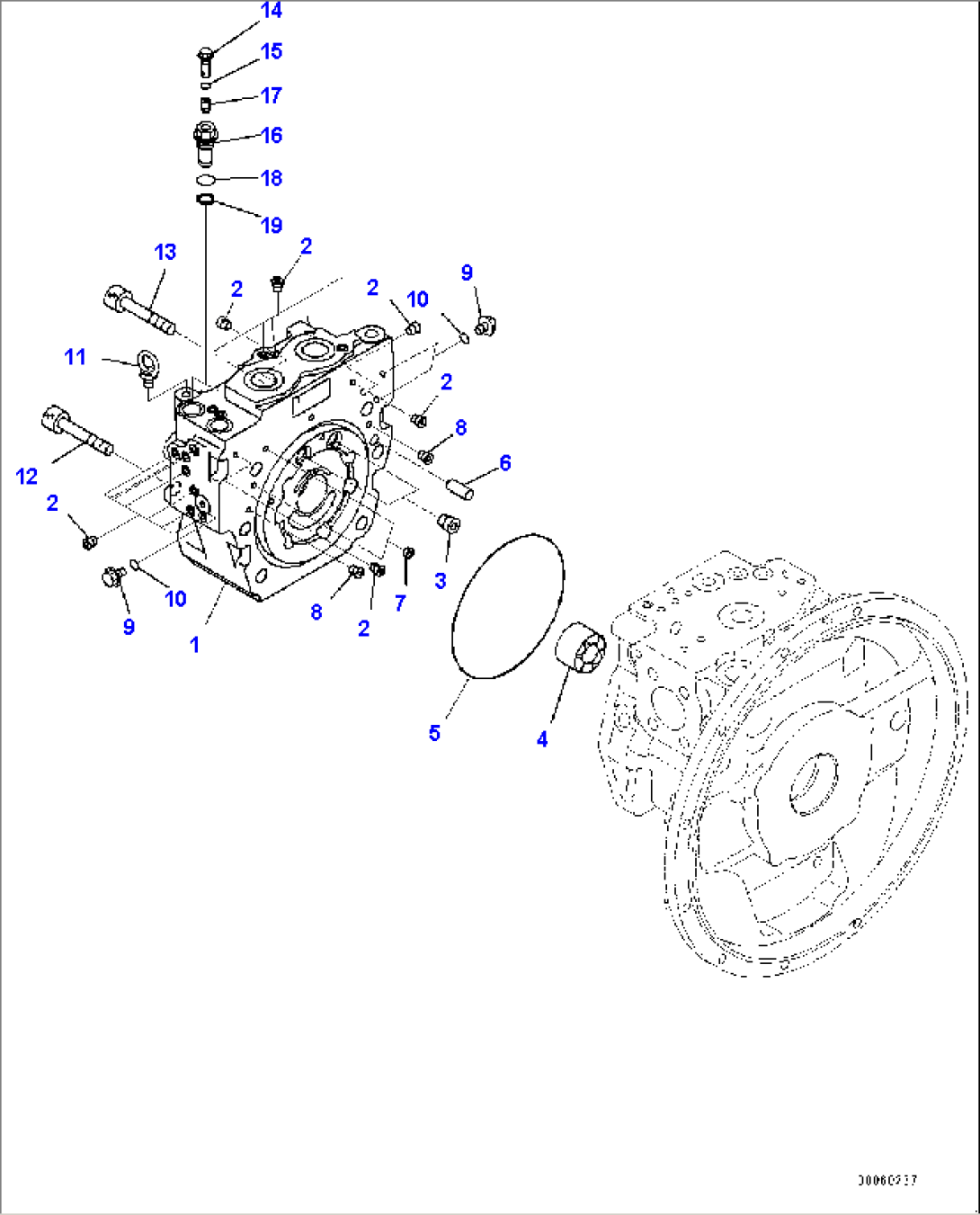

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-3D-00030 | Pump Assembly | 24510-27395 | ||
| (708-3D-01030) | Pump Subassembly | 24510-27395 | ||
| (708-3D-04230) | Cap Assembly, End | 24510-27395 | ||
| 1 | Cap, End | 24510-27395 | ||
| 2 | Plug, Stocking | 24510-27395 | ||
| 3 | Plug | 24510-27395 | ||
| 4 | (708-2L-32260) | Bearing | 24510-27395 | |
| 5 | (07000-A5165) | O-ring | 24510-27395 | |
| 6 | (04020-01228) | Pin, Dowel | 24510-27395 | |
| 7 | 708-2L-25480 | Filter | 24510-27395 | |
| 8 | (708-1L-29340) | Orifice | 24510-27395 | |
| 9 | 708-8E-16150 | Plug | 24510-27395 | |
| 10 | 07002-61023 | O-ring | 24510-27395 | |
| 11 | 04530-11018 | Bolt, Eye | 24510-27395 | |
| 12 | (708-3D-11810) | Bolt, Hexagon Socket Head | 24510-27395 | |
| 13 | (01252-61450) | Bolt, Hexagon Socket Head | 24510-27395 | |
| 708-3M-05110 | Valve Assembly | 24510-27395 | ||
| 14 | Plug | 24510-27395 | ||
| 15 | O-ring | 24510-27395 | ||
| 16 | Holder | 24510-27395 | ||
| 17 | Valve | 24510-27395 | ||
| 18 | 07002-61823 | O-ring | 24510-27395 | |
| 19 | Seal | 24510-27395 |
