| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00450) | PUMP ASS'Y | 51423- | ||
| (708-2H-00027) | PUMP ASS'Y | 50345-51422 | ||
| (708-2H-00026) | PUMP ASS'Y | 50345-50345 | ||
| (708-2H-00022) | PUMP ASS'Y | 50001-50344 | ||

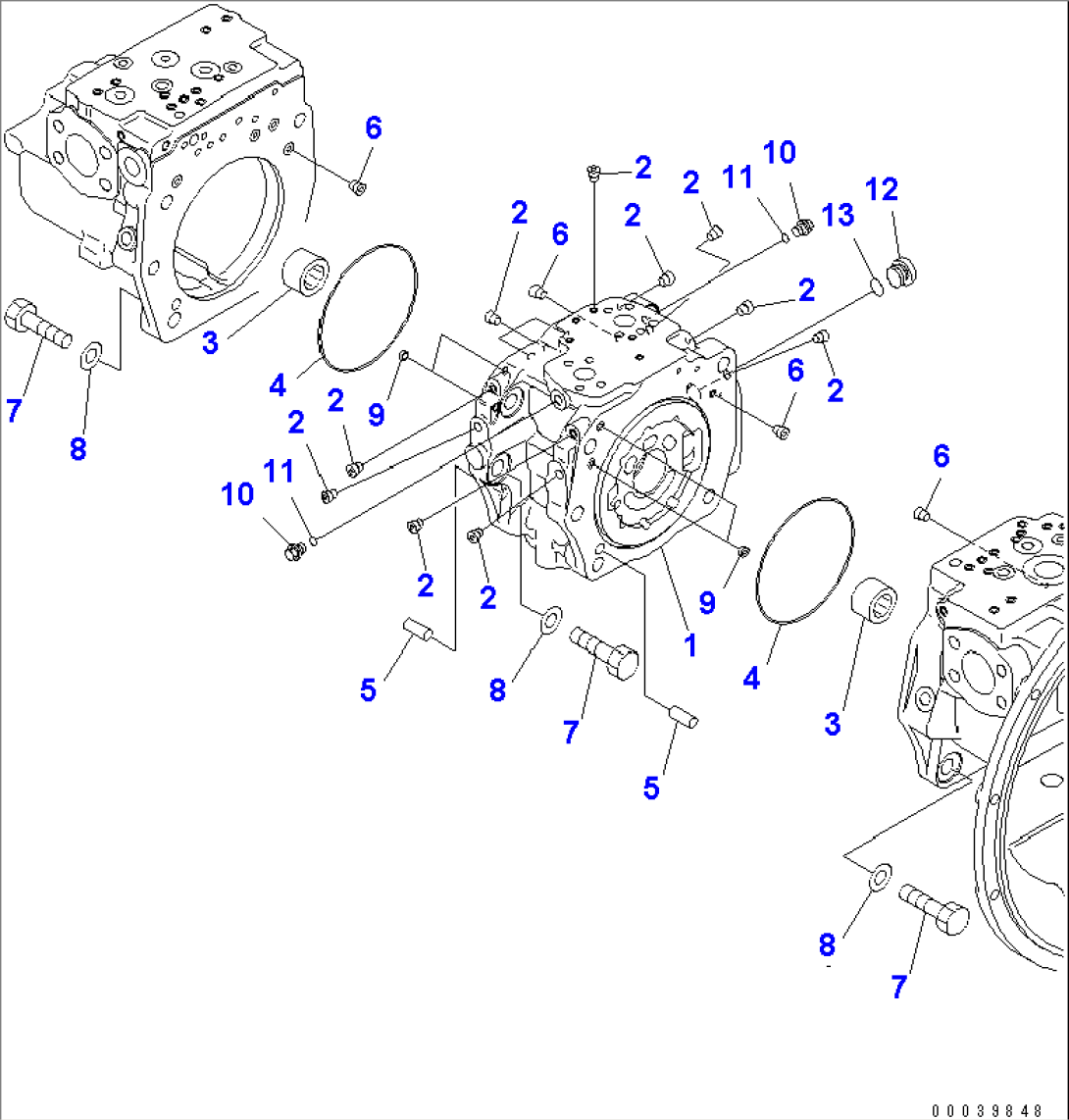

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-12A0 | ||||
| (708-2H-01450) | PUMP SUB ASS'Y | 51423- | ||
| (708-2H-01027) | PUMP SUB ASS'Y | 50345-51422 | ||
| (708-2H-01026) | PUMP SUB ASS'Y | 50345-50345 | ||
| (708-2H-01022) | PUMP SUB ASS'Y | 50001-50344 | ||
| (\7\708-2H-04440) | CAP ASS'Y | 51423- | ||
| (\7\708-2H-04480) | CAP ASS'Y,END | 50001-51422 | ||
| 1 | \6\ | CAP | 51423- | |
| 1 | \6\ | CAP,END | 50001-51422 | |
| 2 | \6\ | PLUG | 50001- | |
| 3 | (\7\708-2H-12430) | BEARING | 50001- | |
| 4 | (\7\07000-A5190) | O-RING | 50001- | |
| 5 | (\7\04020-01434) | PIN,DOWEL | 50001- | |
| 6 | (\7\708-1L-29340) | ORIFICE | 50345- | |
| 6 | (\7\708-2L-25650) | ORIFICE | 50001-50344 | |
| 7 | (\7\01010-61860) | BOLT | 50001- | |
| 8 | (\7\01643-31845) | WASHER | 50001- | |
| 9 | (\7\708-2L-25480) | FILTER | 50001- | |
| 10 | 708-8E-16150 | PLUG | 50001- | |
| 11 | 07002-61023 | O-RING | 50001- | |
| 12 | 07040-12414 | PLUG | 50001-51422 | |
| 13 | 07002-62434 | O-RING | 50001-51422 |
